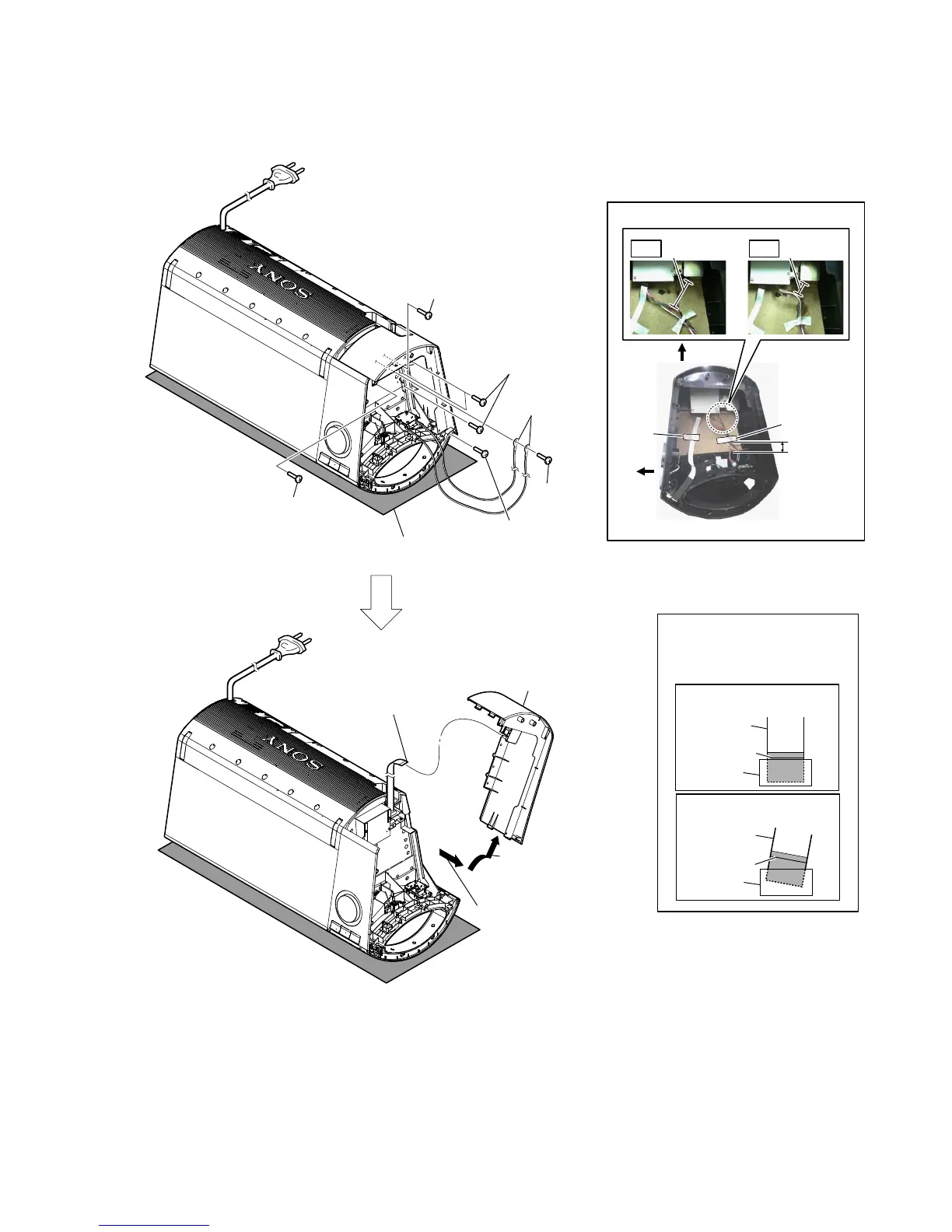

2-4. COVER (BACK) BLOCK
– Top rear view –
– Right side view –
8 cover (back) block
5 Move the cover (back) block
in the direction of an arrow.
6 Remove the cover (back)
block in the direction of
an arrow.
2 screw (BV/ring)
2 screw
(BV/ring)
3 two lug wires
tape
rear side
top side
45 ± 5 mm
tape
1 three tapping screws
(3.5 u 20)
4 screw
(BVTP3 u 10)
4 screw
(BVTP3 u 10)
 Wire setting
Note 1:
Please spread a sheet under a unit
not to injure front grille.
Note 2:
When installing the flexible
flat cable, ensure the coloured
line.
No slanting after insertion.
coloured line
coloured line
Insert is straight to the interior.
Insert is incline
flexible flat
cable
flexible flat
cable
connector
connector
OK
NG
Distance
is near.
OK NG
Distance
is far.
7 flexible flat cable (9 core)
(CN101)
