FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
17

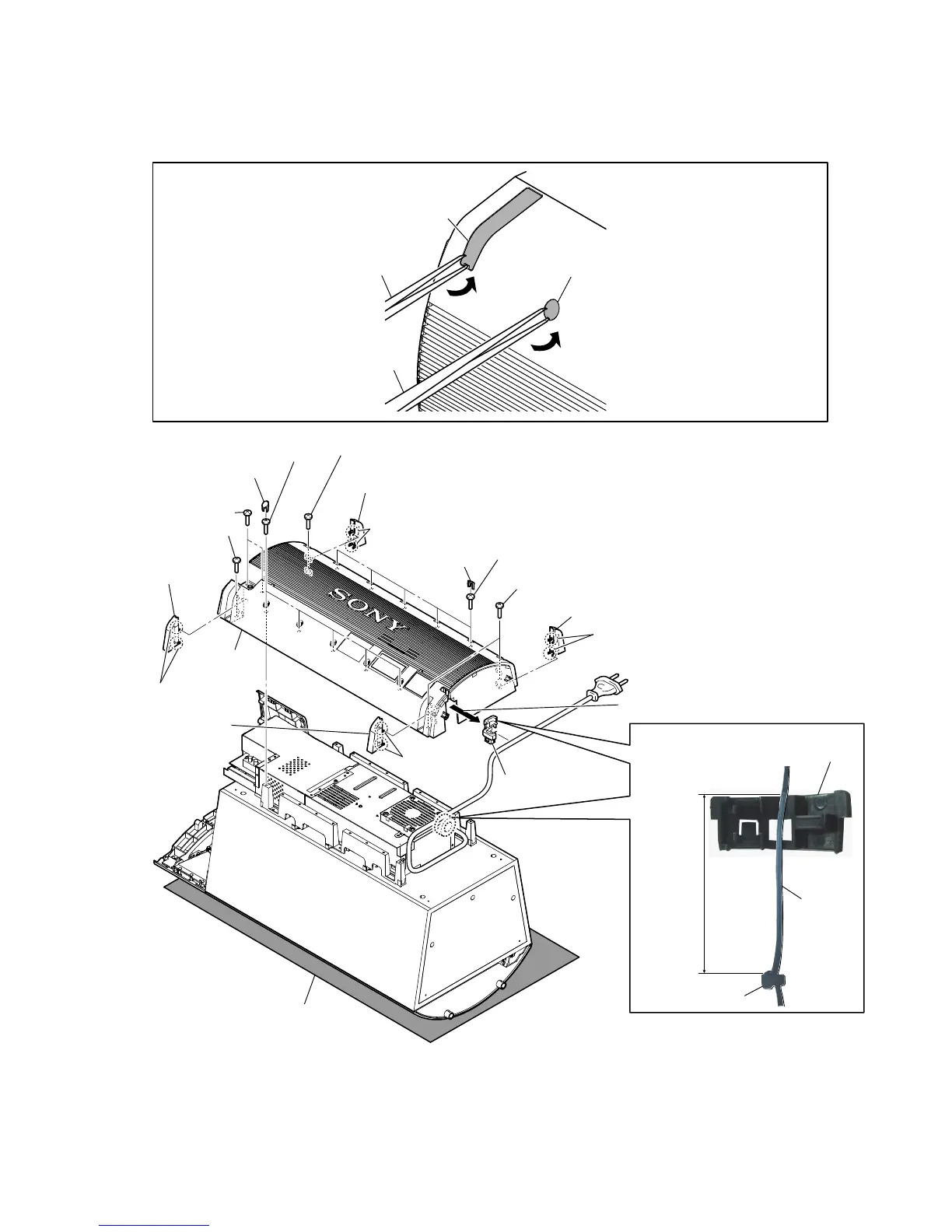

2-6. BACK PANEL BLOCK (GTK33iP)
2 cord bushing (2104)
1 Remove the power cord.
4 four claws
4 four claws
5 screw cover (back panel)
5 screw cover
(back panel)
9 two tapping screws
(3.5 u 20)
0 back panel
block
7 five screw caps
7 five screw caps
4 four claws
4 four claws
5 screw cover (back panel)
5 screw cover
(back panel)
8 five screws
(BVTP3 u 10)
8 five screws
(BVTP3 u 10)
8 two screws
(BVTP3 u 10)
9 tapping screw
(3.5 u 20)
9 tapping screw
(3.5 u 20)
– Top rear view –
Note 3:
Please spread a sheet under a unit
not to injure front grille.
cord bushing (2104)
ferrite core
power cord
290 ± 5 mm
Power cord setting
tweezers etc.
tweezers etc.
3
Insert tweezers etc. in the slot on four screw
covers (back panel) and remove so that it may hollow.
Note 1:
Do not damage screw cover (back panel).
6
Insert tweezers etc. in the slot on ten screw
caps and remove so that it may hollow.
Note 2:
Do not damage screw cap.
To Next Page
