FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP

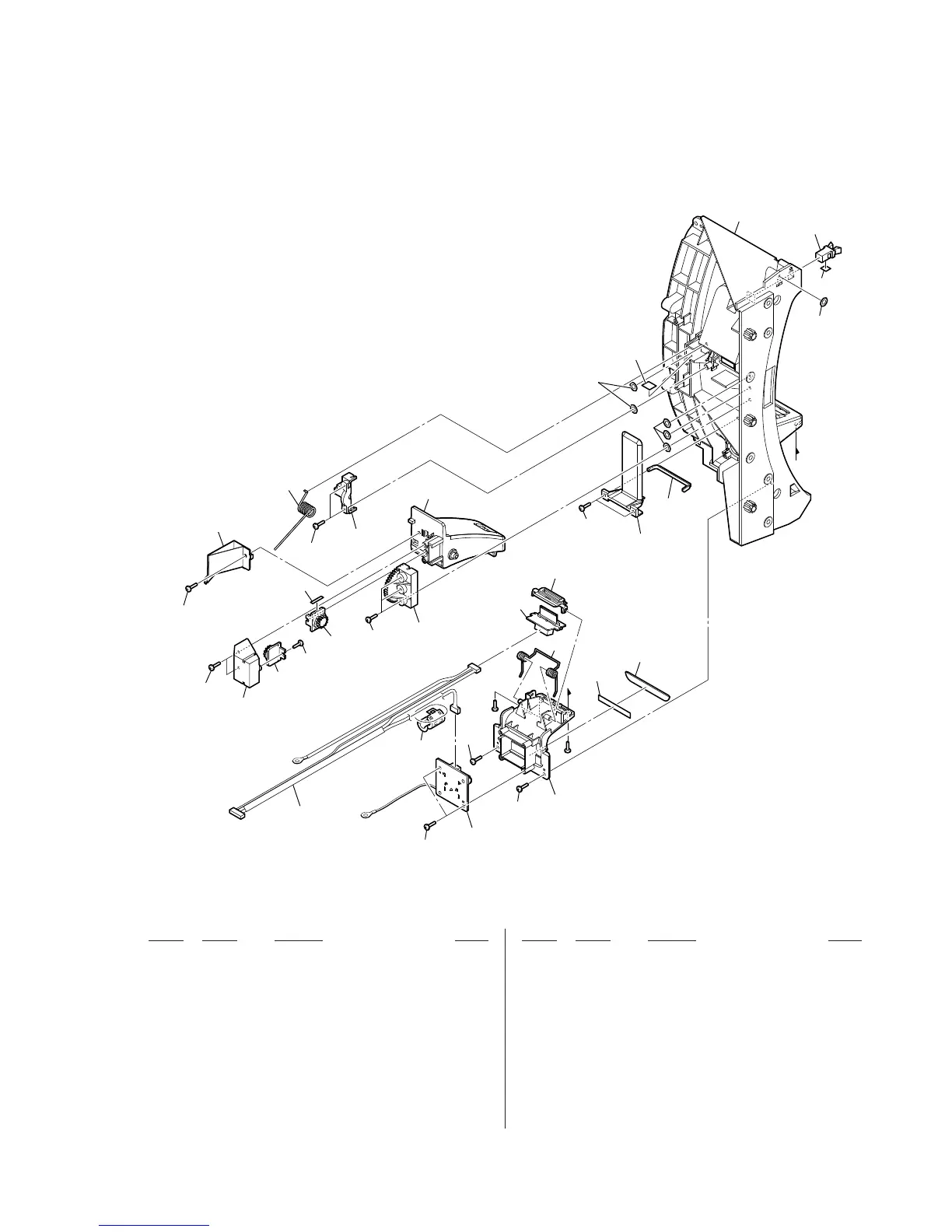

6-7. FRONT PANEL SECTION
• Back side view
301 3-087-053-01 +BVTP2.6 (3CR)
302 A-1861-156-A USB BOARD, COMPLETE
303 4-409-633-01 STAGE (BOTTOM-I-PH)
304 4-427-239-01 ADHESSIVE SHEET (ORNAMENT USB)
305 4-409-649-02 ORNAMENT (USB)
306 4-409-608-01 SPRING (PWB)
307 A-1861-152-A IP BOARD, COMPLETE
308 4-409-651-01 ESCUTCHEON (I-PH)
309 4-409-629-02 RETAINER (GEAR), I-PH
310 3-047-468-21 DAMPER
311 A-1861-385-A RETAINER ASSY
312 4-409-601-02 PLATE (FIX)
313 4-409-607-02 SPRING (LOCK 2)
314 4-409-625-01 FRONT PANEL (R-BASE)
315 3-876-249-01 LATCH
316 4-409-632-01 INDICATOR
317 2-584-656-11 WASHER, POLYETHYLENE
318 4-425-393-51 CUSHION (H)
319 2-584-656-01 WASHER, POLYETHYLENE
FC1 1-400-932-11 FILTER, CLAMP
#2 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
315
318
319
309
301
310
301
301
316
317
317
314
311
312
301
301
313
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#2
FC1
310
301
307
308
306
304
303
301
301
305
302
301
D
D
#2
