FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
20

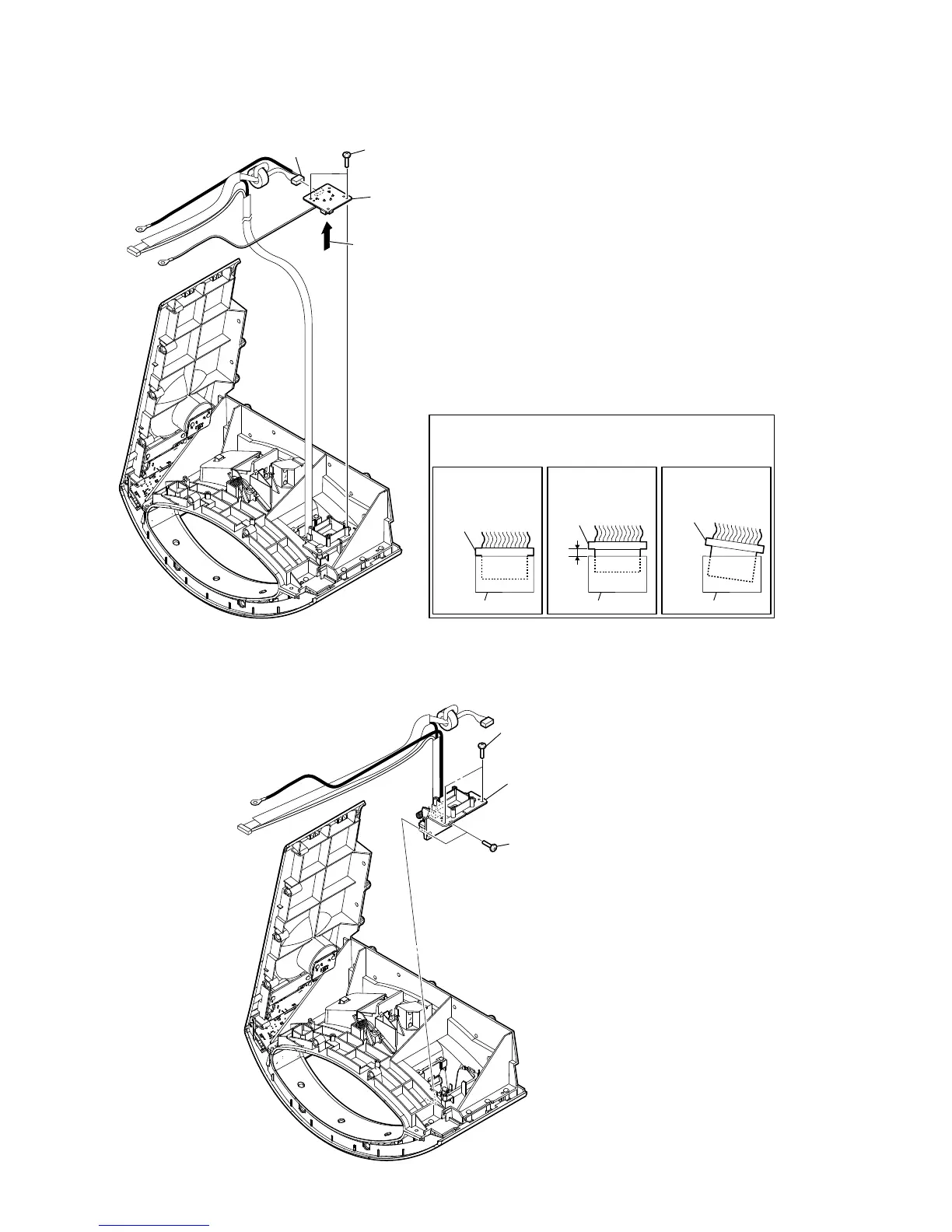

2-10. STAGE (BOTTOM-I-PH) BLOCK
2-9. USB BOARD
1 two screws
(BVTP2.6)
4 USB board
3 connector (CN562)
2 Remove the USB board in
the direction of an arrow.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
NGOK NG
– Panel right assy rear view –
Note:
When you install the connector, please install themcorrectly.
There is a possibility that this machine damages when not
correctly installing it.
2 two screws
(BVTP2.6)
3 stage (bottom-I-PH) block
1 two screws
(BTP2.6 u 8)
– Panel right assy rear view –
To Next Page
