FST
-GTK1
1iP/GTK33iP/RDH-GTK1
1iP/GTK33iP
18
2-7.

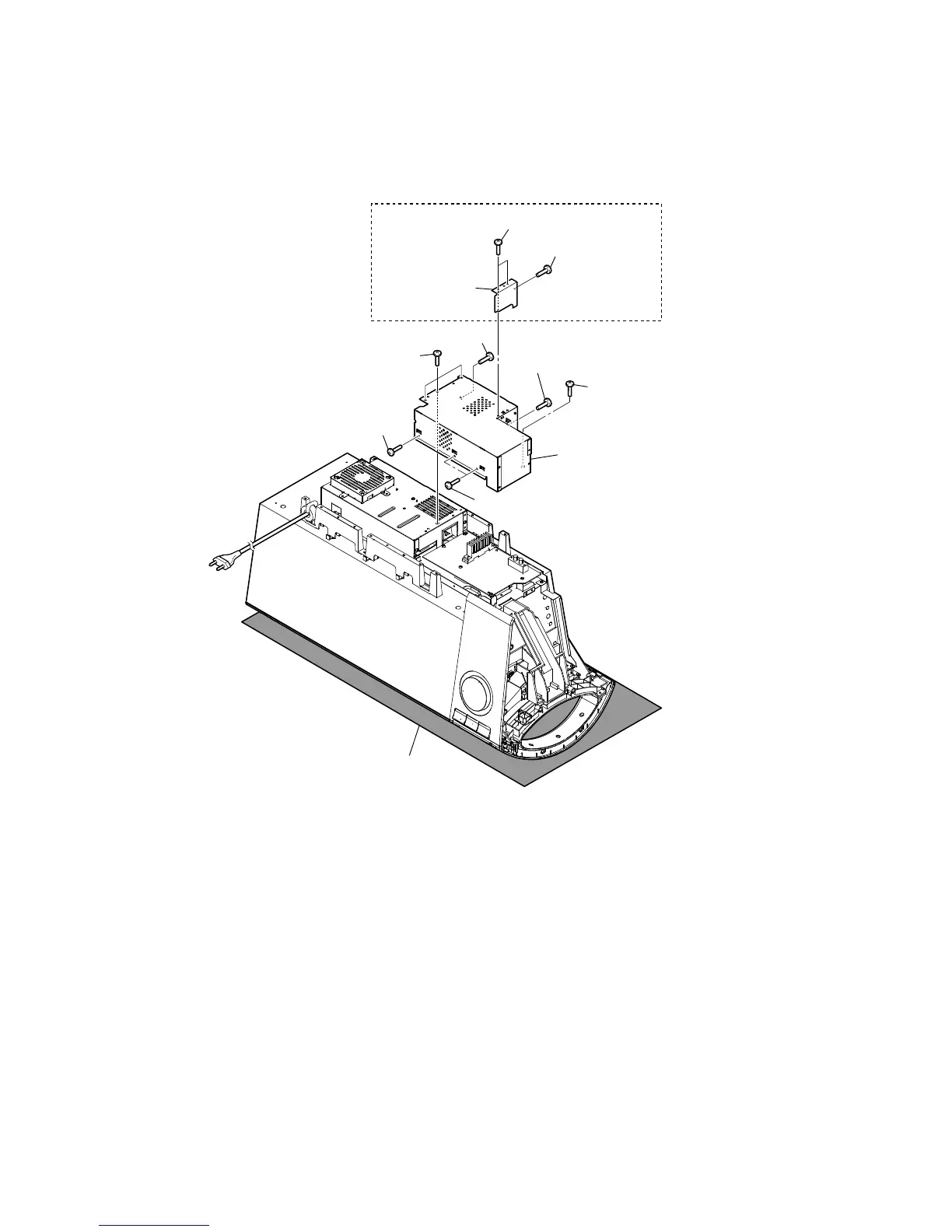

SHIELD (MAIN) BLOCK
– T
op right view –
Note:
Please spread a sheet under a unit
not to injure front grille.
(GTK33iP)
1
screw
(BV/ring)
3
screw
(BV/ring)
3
screw
(BV/ring)
3
screw
(BV/ring)
3
screw
(BV/ring)
1
two screws (BV/ring)
3
two screws (BV/ring)
3
three screws (BV/ring)
2
shield
(main-U)
4
shield (main) block
17
19
