FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
19

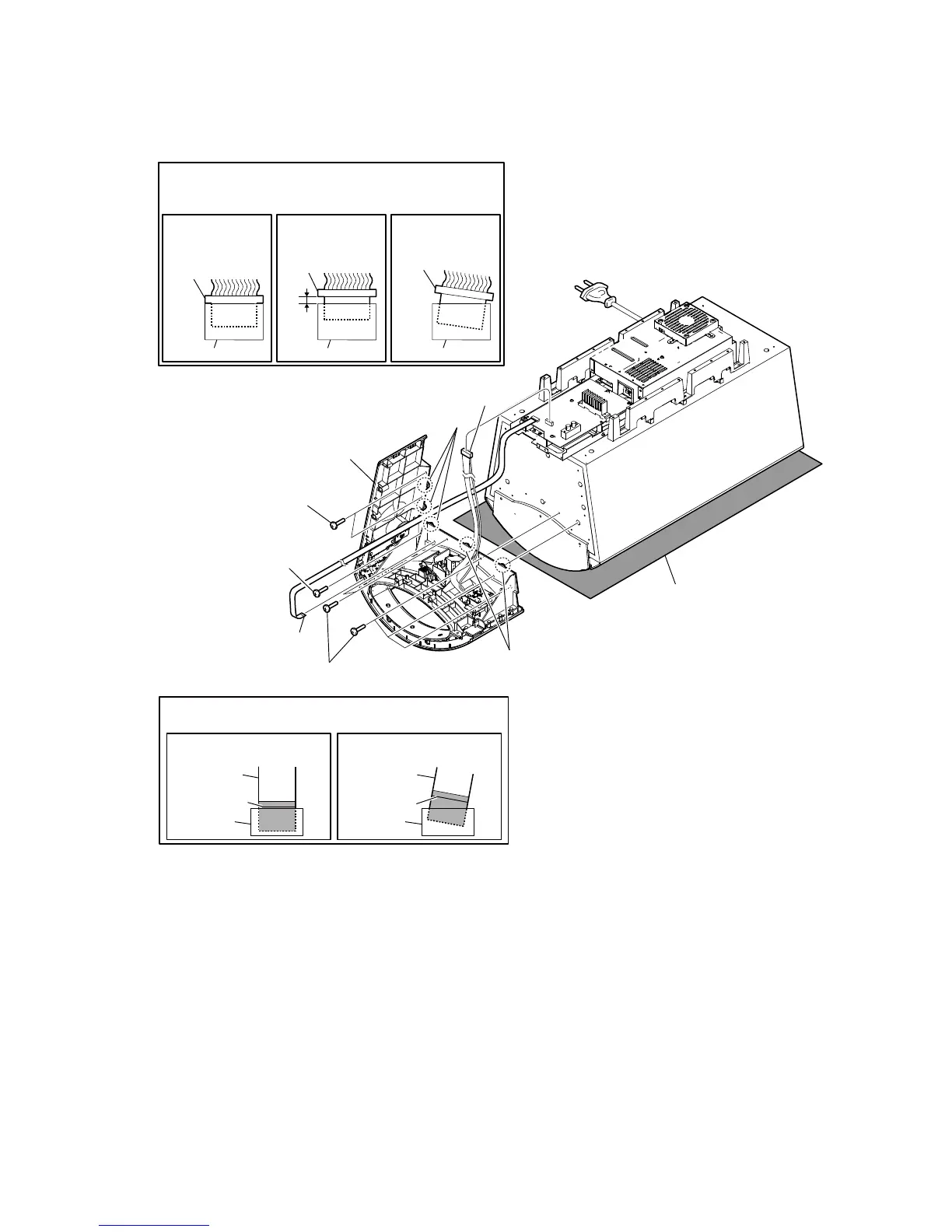

2-8. PANEL RIGHT ASSY
1 flexible flat cable (13 core)
(CN501)
2 connector
(CN301)
4 two bosses
4 three bosses
5 panel right assy
– Bottom right view –
Note 1:
Please spread a sheet under a unit
not to injure front grille.
3 five tapping screws
(3.5 u 20)
3 two tapping screws
(3.5 u 20)
3 tapping screw
(3.5 u 20)
Note 3:
When installing the flexible flat cable,
ensure the coloured line.
No slanting after insertion.
coloured line
coloured line
Insert is straight to the interior. Insert is incline
flexible flat
cable
flexible flat
cable
connectorconnector
OK
NG
Note 2:
When you install the connector, please install themcorrectly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
NGOK NG
To Next Page
