FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
30

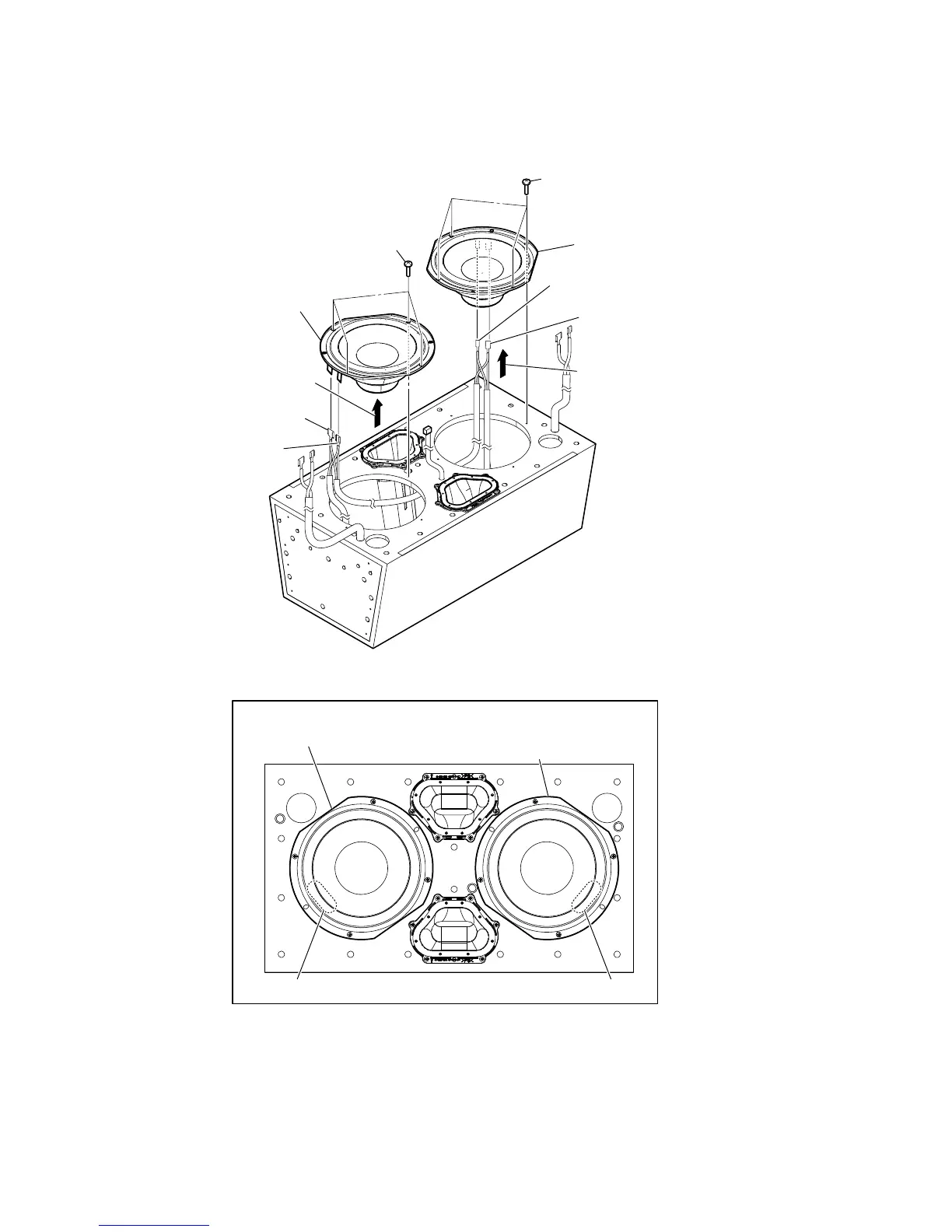

2-22. LOUDSPEAKER (20 cm) (SP1, AP2) (GTK33iP)
Note: It is possible to also remove ones of Lch and Rch.
3 terminal
(red/white)
terminal position terminal position
7 terminal (red)
7 terminal (black)
3 terminal
(black/white)
2 Remove the loudspeaker (20 cm) (SP1)
in the direction of an arrow.
loudspeaker (20 cm)
(SP1)
loudspeaker (20 cm)
(SP2)
6 Remove the loudspeaker (20 cm) (SP2)
in the direction of an arrow.
4 loudspeaker (20 cm) (SP1)
8 loudspeaker (20 cm) (SP2)
1 four tapping screws
(3.5 u 20)
5 four tapping screws
(3.5 u 20)
/RXGVSHDNHUFPVHWWLQJ
–7RSIURQWYLHZ–
