Sony HCD-VM330AV User Manual

HCD-VM330AV
11

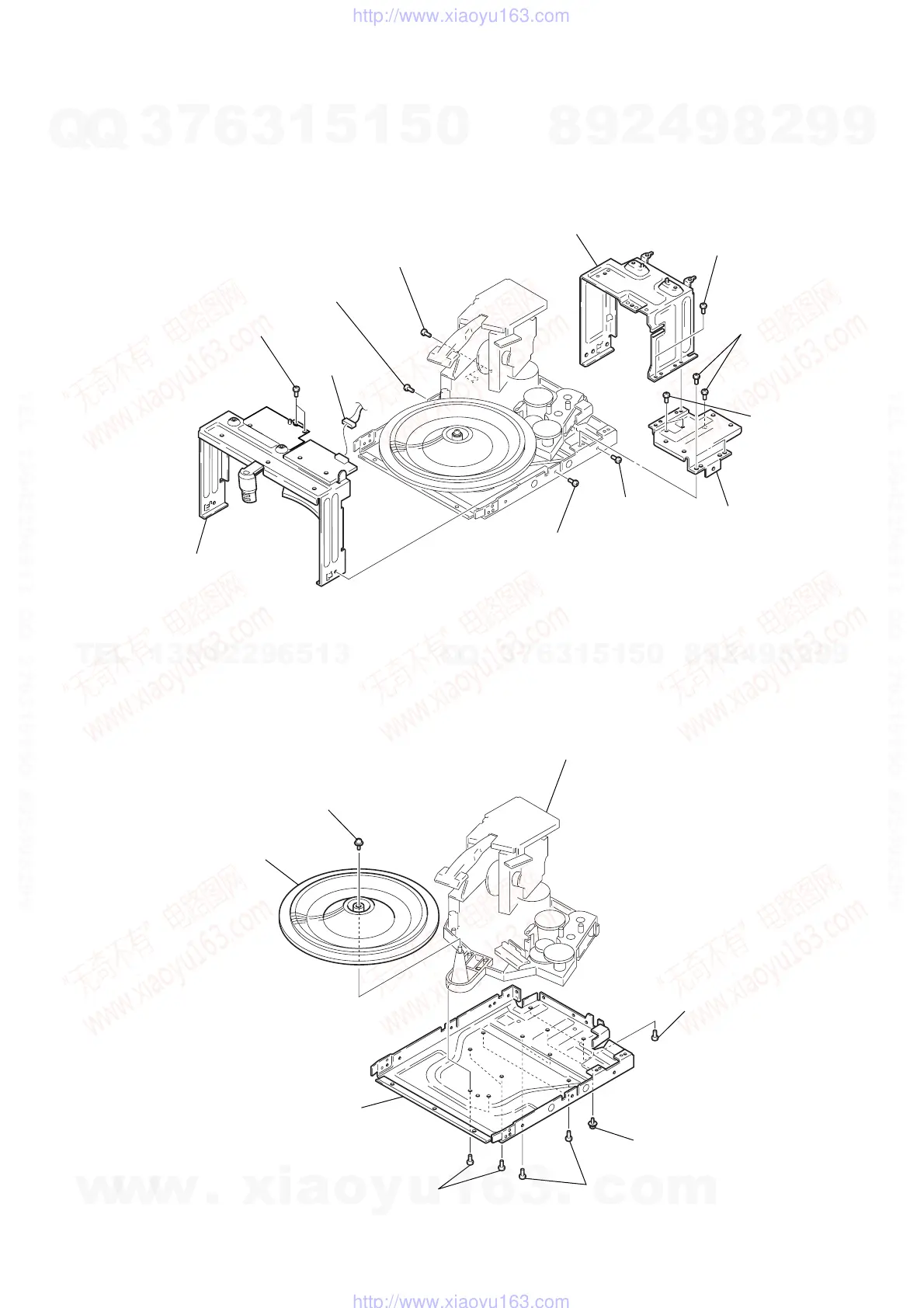

3-8. MIDDLE (F) ASSY, BRACKET (MIDDLE-R), POWER BRACKET
3-9. CD MECHANISM DECK
(CDM64-30ABD61A)
4 middle (F) assy
2 two screws (BVTP3 × 8)
1 connector
(CN901)
3 screw (BVTP3 × 8)
5 three screws
(BVTP3
× 8)
7 bracket (middle-R)
6 two screws
(BVTP3
× 8)
0 two screws
(BVTP3
× 8)
8 screw
(BVTP3
× 8)
3 screw
(BVTP3
× 8)
qa power bracket
9 three screws
(BVTP3
× 8)
2 table (60)
lower chassis
1 screw (2.6 × 8)
5 CD mechanism deck
(CDM64-30ABD61A)
4 two screws
(BVTP3
× 8
)
3 screw
(PSW3
× 6)
4 four screws
(BVTP3
× 8)
4 four screws
(BVTP3
× 8)
