HCD-VM330AV
Checking Location :
[ BD BOARD ] — SIDE B —
TP (DVC)
TP (FEO)
TP (XPCK)
TP (TEO)
TP (RFDC)
TP (VC)
TP
(RFAC)
IC103
IC101
TP (FEI)
R120
VIDEO SECTION
Video Frequency Adjustment
Connection:
Procedure:
1. Connect a frequency counter to TP (27MHz) and TP (GND).
2. Turn power switch on.
3. Turn the [FUNCTION] knob of amplifier unit (TA-SV7AV) to
set the CD function.
4. Adjust CT503 on the VMP board so that the frequency counter
reading 27.0 MHz ± 80 Hz at stop status.

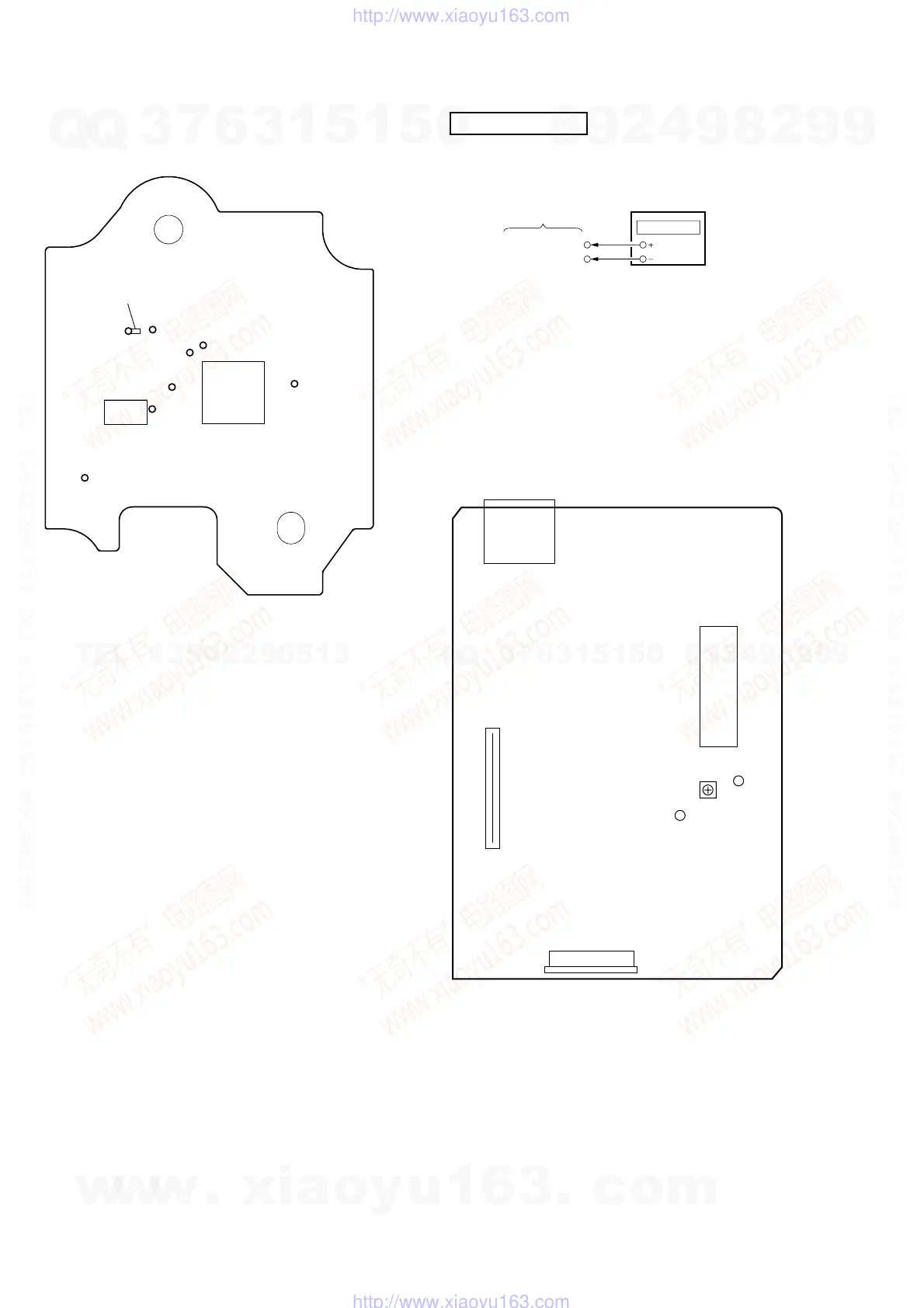

Adjustment Location:
[VMP BOARD] (SIDE A)
J301
CN501
CN502
IC507
TP (GND)
TP (27MHz)
CT503
Video
Frequency
Adjustment
VMP board
TP (27MHz)
TP (GND)
frequency counte
