Sony HCD-VM330AV User Manual

HCD-VM330AV
9

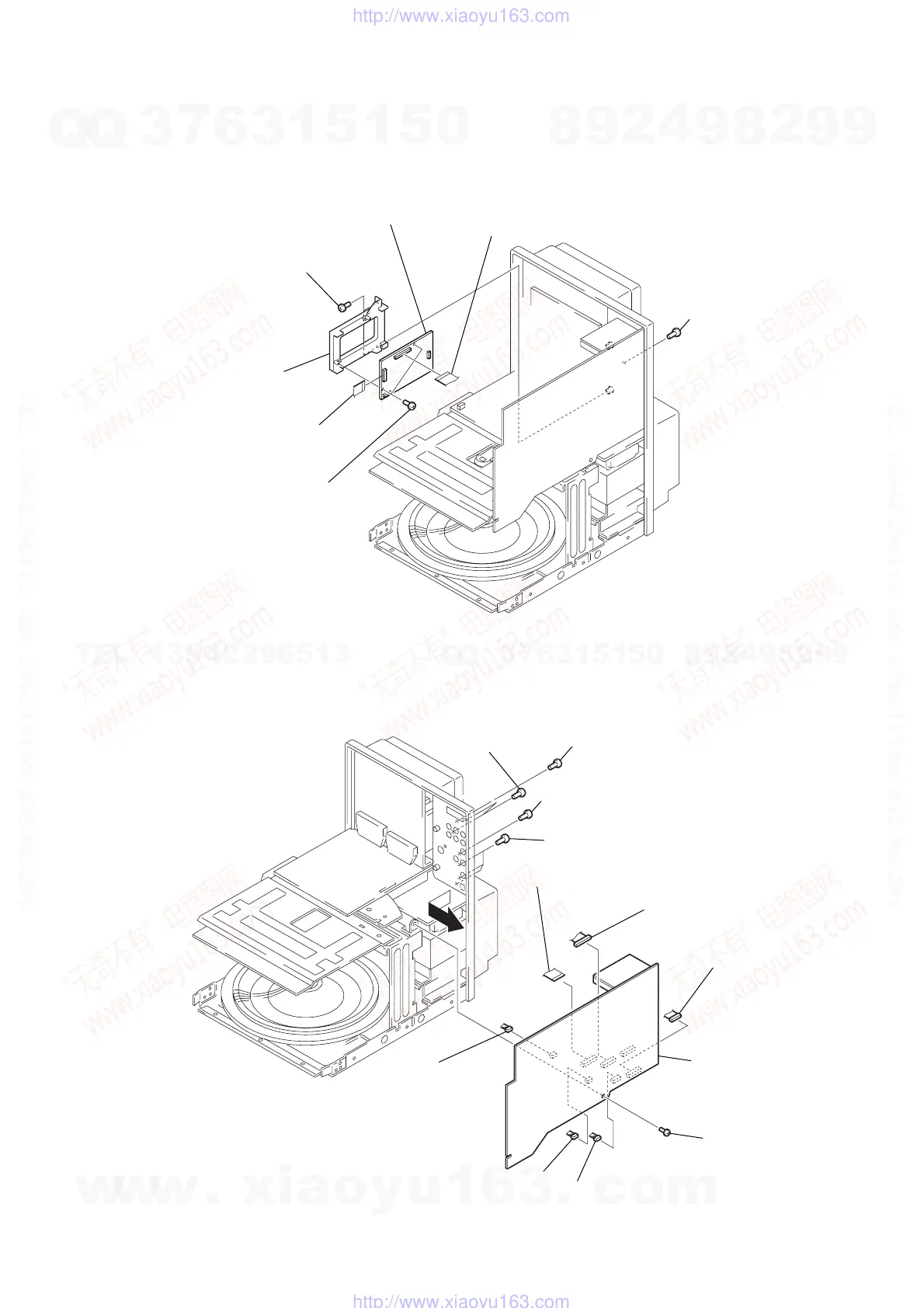

3-4. VIDEO BOARD
3-5. MAIN BOARD
3 two screws
(BVTP3
× 10)
5 two screws
(BVTP3
× 10)
4 MPEG bracket
6 VIDEO board
1 wire (flat type) (25 core)
(CN501)
1 wire (flat type) (13 core)
(CN502)
2 screw (BVTP3 × 8
)
3 three screws
(BVTP3
× 8)
3 two screws
(BVTP3
× 8)
3 screw (BVTP3 × 8)
3 screw
(BVTP3
× 8)
4 screw
(BVTP3
× 8)
5 MAIN board
1 wire (flat type) (18 core)
(CN309)
2 connectors
(CN304)
2 connectors
(CN903)
2 connectors
(CN317)
2 connectors
(CN305)
2 connector
(CN313)
