HCD-VM330AV
77
76
76
#3
#3
#
#3
#3
#3
#3
#3
#3
#3
#1
not supplied
#1
#3
#1
not supplied
not
supplied
S791
#4
#4
#4
72
80
88
81
75
89
83
87
87
93
91
76
84
90
94
56
55
53
52
62
65
51
57
supplied
with RV701
58
59
61
64
68
66
91
91
63
60
54
73
73
74
72
74
71
70
69
67
75
78
79
92
92
92
86
85

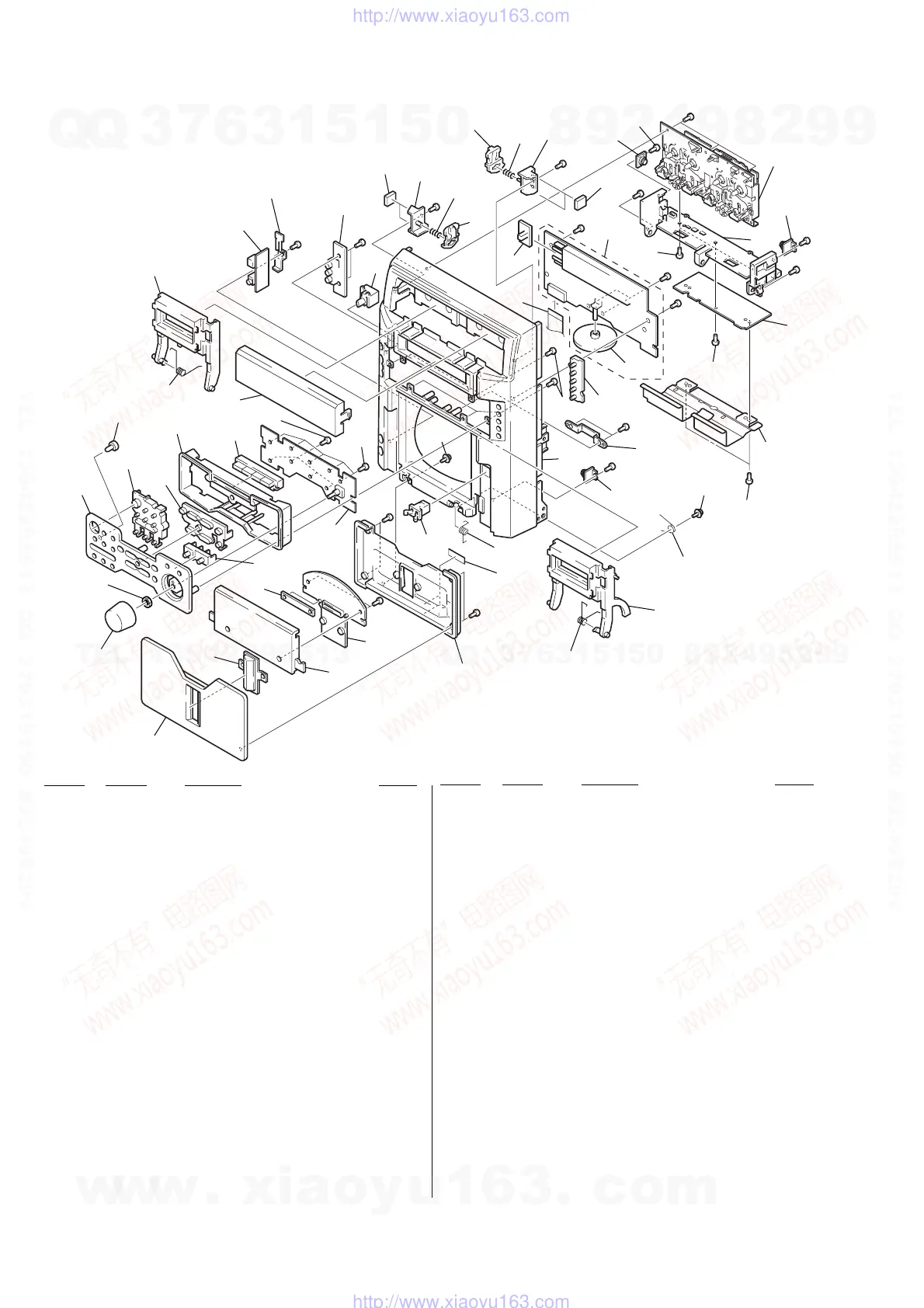

8-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-232-761-31 CD LID
52 4-232-792-01 WINDOW (C), CD
53 4-232-764-01 WINDOW (A), CD
54 1-680-794-21 DOOR LED BOARD
55 4-232-763-01 WINDOW (B), CD
56 4-232-762-01 HOLDER, CD LID
57 4-232-771-01 KNOB, VOL
58 4-232-746-01 PANEL, CONTROL
59 4-232-789-01 INDICATOR (POWER)
60 4-232-748-01 BUTTON (POWER)
61 4-232-788-01 BUTTON (PLAY)
62 A-4412-984-A DSP BUTTON ASSY
63 4-232-747-01 HOLDER, CONTROL
64 4-232-749-01 BUTTON (FUNCTION)
65 A-4476-367-A CONTROL BOARD, COMPLETE
66 4-232-782-01 SPRING (A), CASSETTE
67 A-4412-986-A CASSETTE HOLDER ASSY (A)
68 4-232-770-01 WINDOW, FL
69 1-680-796-21 H/P BOARD
70 1-680-808-11 GAME LINK BOARD
71 4-232-754-01 BUTTON, GAME
72 3-846-312-11 SPACER (E)
73 4-232-757-01 CATCHER, BRACKET
74 3-029-159-02 SPRING, PUSH CATCHER RETURN
75 3-029-158-01 CATCHER, PUSH
76 3-049-782-21 DAMPER
77 1-796-078-11 DECK, MECH
78 4-232-758-01 BRACKET, MD
79 A-4476-373-A TC BOARD, COMPLETE
80 A-4476-368-A DISPLAY BOARD, COMPLETE
81 4-232-753-01 DIAL, JOG
83 A-4412-987-A MULTI BUTTON ASSY
84 4-232-745-01 CABINET, FRONT
85 4-232-783-01 SPRING (B), CASSETTE
86 A-4412-985-A CASSETTE HOLDER ASSY (B)
87 4-981-789-01 BRACKET (2), YOKE
88 1-680-809-11 RMC BOARD
89 1-757-999-11 WIRE (FLAT TYPE) (12CORE)
90 4-232-785-01 SPRING (B), CD
91 4-951-620-11 SCREW (2.6X10), +BVTP
92 4-951-620-21 SCREW (2.6), +BVTP
93 4-232-784-01 SPRING (A), CD
94 3-831-441-99 CUSHION, SPEAKER
S791 1-692-960-21 SWITCH, PUSH (1 KEY) (CD LID OPEN)
