Sony HXR-NX5R User Manual

15

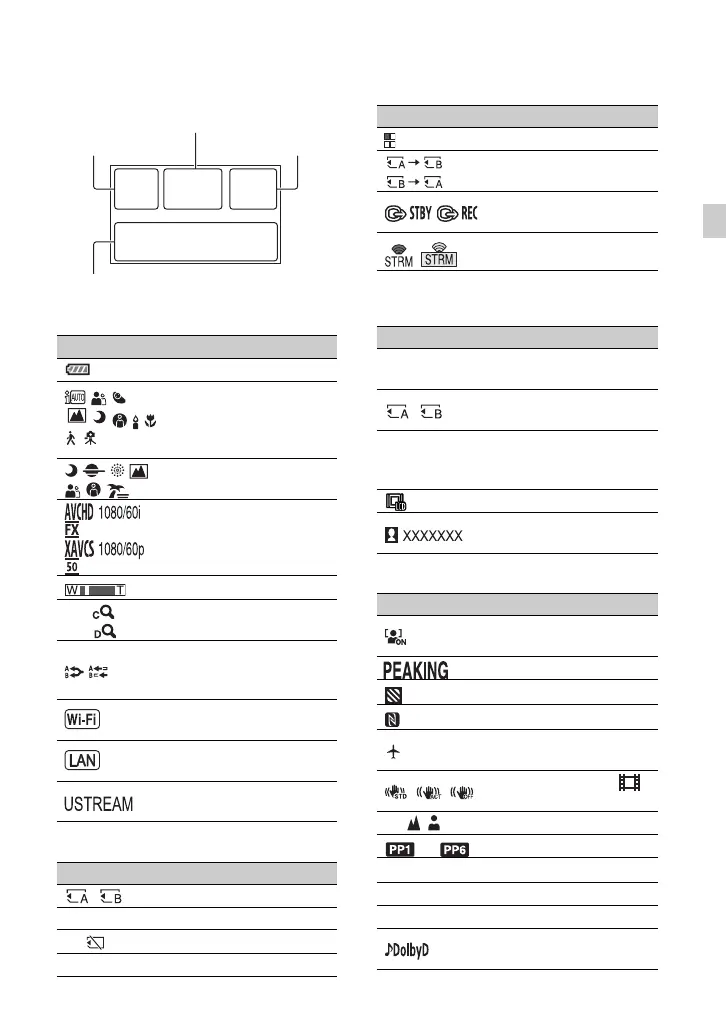

Identifying Parts and Controls
Screen Indicators
Upper left
Center
Upper right
Bottom
Indicator Meaning
100% Remaining battery
.
INTELLIGENT AUTO
(face detection/scene
detection/camera-shake
detection) (p. 50)
SCENE SELECTION
(p. 50)
Recording format (p. 38)
Optical zoom (p. 89)
Z99 ×1.2
Z99 ×2.3
Clear image zoom (p. 89)
Digital zoom (p. 89)
Simultaneous recording
(p. 33)
Relay recording (p. 32)
Wireless LAN connection
(p. 68)
Wired LAN connection
(p. 72)
USTREAM streaming
(p. 75)
Indicator Meaning
Memory card (p. 29)
REC STBY Recording standby (p. 31)
E Warning (p. 121)
N Playback indicator (p. 55)
Upper left Upper right
Bottom
Center
Processing
Relay recording (p. 32)
SDI/HDMI REC
CONTROL (p. 96)
Streaming (p. 73, 75)
Indicator Meaning
0min
Estimated remaining
recording time
Recording/playback
media
00:00:00:00
Time code
(hour:minute:second:
frame) (p. 51)
VF/LCD PANEL (p. 28)
USTREAM audience
(p. 75)
Indicator Meaning
Face detection [ON]
(p. 36)
Peaking (p. 99)
Zebra (p. 99)
NFC active (p. 66)
Airplane mode [ON]
(p. 104)
Image stabilization (
STEADYSHOT) (p. 89)
9 Manual focus (p. 35)
to Picture profile (p. 51)
F5.6 Iris (p. 39)
9dB Gain (p. 40)
100 180° Shutter speed (p. 40)
AVCHD audio format
(p. 97)
Indicator Meaning
Continued ,
