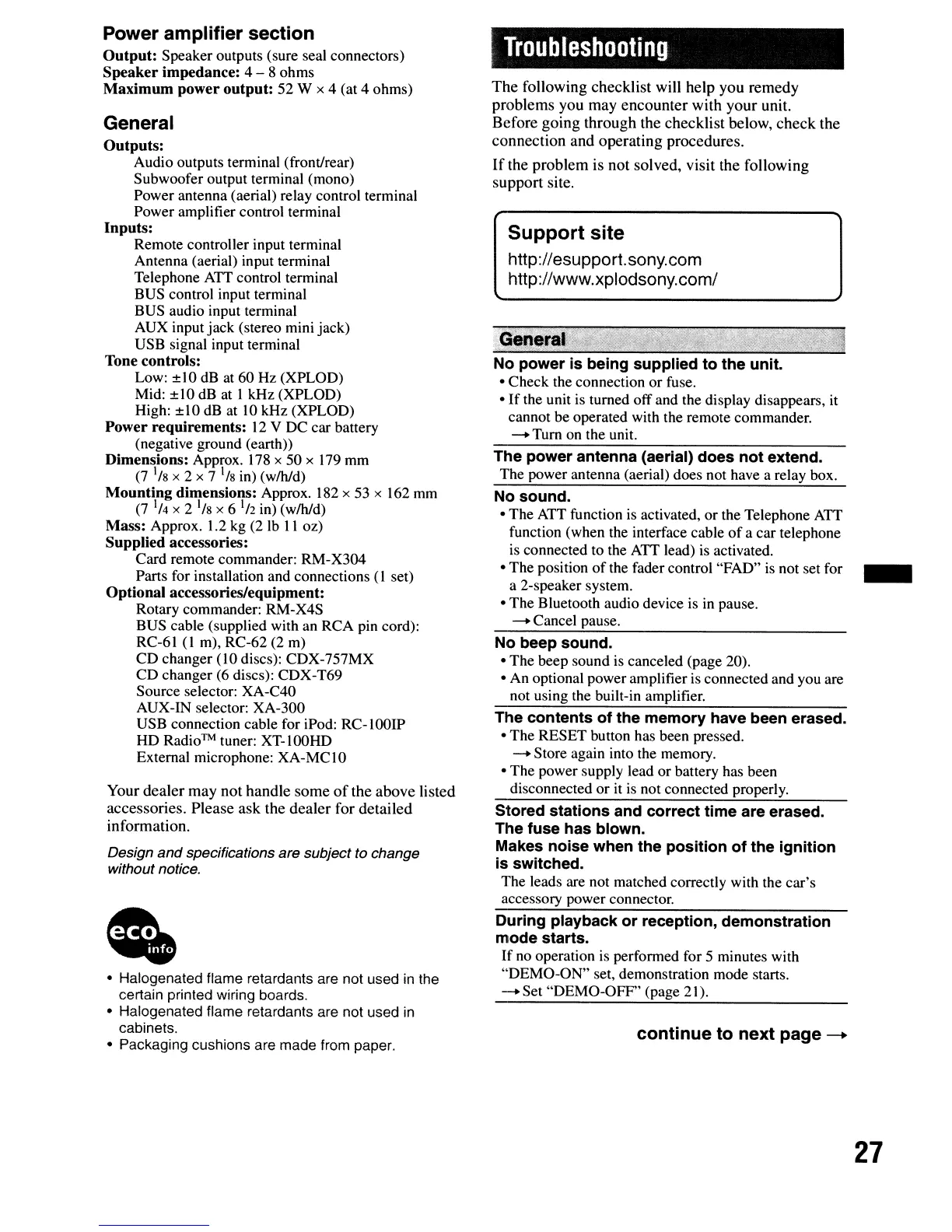

Power amplifier section
Output:
Speaker outputs (sure seal connectors)
Speaker
impedance:
4 - 8 ohms
Maximum
power
output:
52 W x 4 (at 4 ohms)
General
Outputs:
Audio outputs terminal (front/rear)
Subwoofer output terminal (mono)
Power antenna (aerial) relay control terminal
Power amplifier control terminal
Inputs:
Remote controller input terminal
Antenna (aerial) input terminal
Telephone
ATT
control terminal
BUS control input terminal
BUS audio input terminal
AUX input jack (stereo mini jack)
USB signal input terminal
Tone controls:
Low:
± I0
dB
at
60 Hz (XPLOD)
Mid: ±
10
dB at I kHz (XPLOD)
High:
± I0 dB at
10
kHz (XPLOD)
Power
requirements:
12
V DC car battery
(negative ground (earth»
Dimensions: Approx.
178
x 50 x 179 mm
(7
1/
8
x 2 x 7
1
/
8
in) (w/h/d)
Mounting
dimensions: Approx. 182 x 53 x 162 mm
(71/
4
x 2
1
/
8
x 6
1
/2
in) (w/h/d)
Mass:
Approx. 1.2 kg
(2
Ib
II
oz)
Supplied
accessories:
Card remote commander: RM-X304
Parts for installation and connections
(1
set)
Optional
accessories/equipment:
Rotary commander: RM-X4S
BUS cable (supplied with an RCA pin cord):
RC-61 (I m), RC-62 (2 m)
CD changer (10 discs): CDX-757MX
CD changer
(6
discs): CDX-T69
Source selector: XA-C40
AUX-IN selector: XA-300
USB connection cable for iPod: RC-lOOIP
HD
Radio™
tuner: XT-lOOHD
External microphone: XA-MCIO
Your
dealer
may
not
handle
some
of
the above listed
accessories.
Please
ask
the
dealer
for
detailed
information.
Design
and
specifications are subject to change
without notice.
• Halogenated flame retardants are not used in the
certain printed wiring boards.
• Halogenated flame retardants are not used
in
cabinets.
• Packaging cushions are made from paper.
Troubleshooting
The
following
checklist
will help you remedy
problems
you may
encounter
with
your
unit.
Before
going
through
the
checklist
below,
check
the
connection
and
operating
procedures.
If
the
problem
is not solved, visit the following
support
site.
Support
site
http://esupport.sony.com
http://www.xplodsony.com/
No power
is
being supplied
to
the unit.
• Check the connection or fuse.
•
If
the unit is turned offand the display disappears, it
cannot be operated with the remote commander.
- Turn on the unit.
The power antenna (aerial) does
not
extend.
The power antenna (aerial) does not have a relay box.
No sound.
• The
ATT
function is activated, or the Telephone
ATT
function (when the interface cable
of
a car telephone
is connected to the ATT lead) is activated.
• The position
of
the fader control "FAD" is not set for _
a 2-speaker system.
• The Bluetooth audio device is
in
pause.
- Cancel pause.
No beep sound.
• The beep sound is canceled (page 20).
• An optional power amplifier is connected and you are
not using the built-in amplifier.
The contents
of
the
memory
have been erased.
• The RESET button has been pressed.
- Store again into the memory.
• The power supply lead
or
battery has been
disconnected
or
it is not connected properly.
Stored
stations
and correct time are erased.
The fuse has blown.
Makes noise when the
position
of
the
ignition
is
switched.
The leads are not matched correctly with the car's
accessory power connector.
During playback
or
reception, demonstration
mode starts.
If
no operation is performed for 5 minutes with
"DEMO-ON" set, demonstration mode starts.
-Set
"DEMO-OFF'
(page 21).
continue
to
next
page--
27
