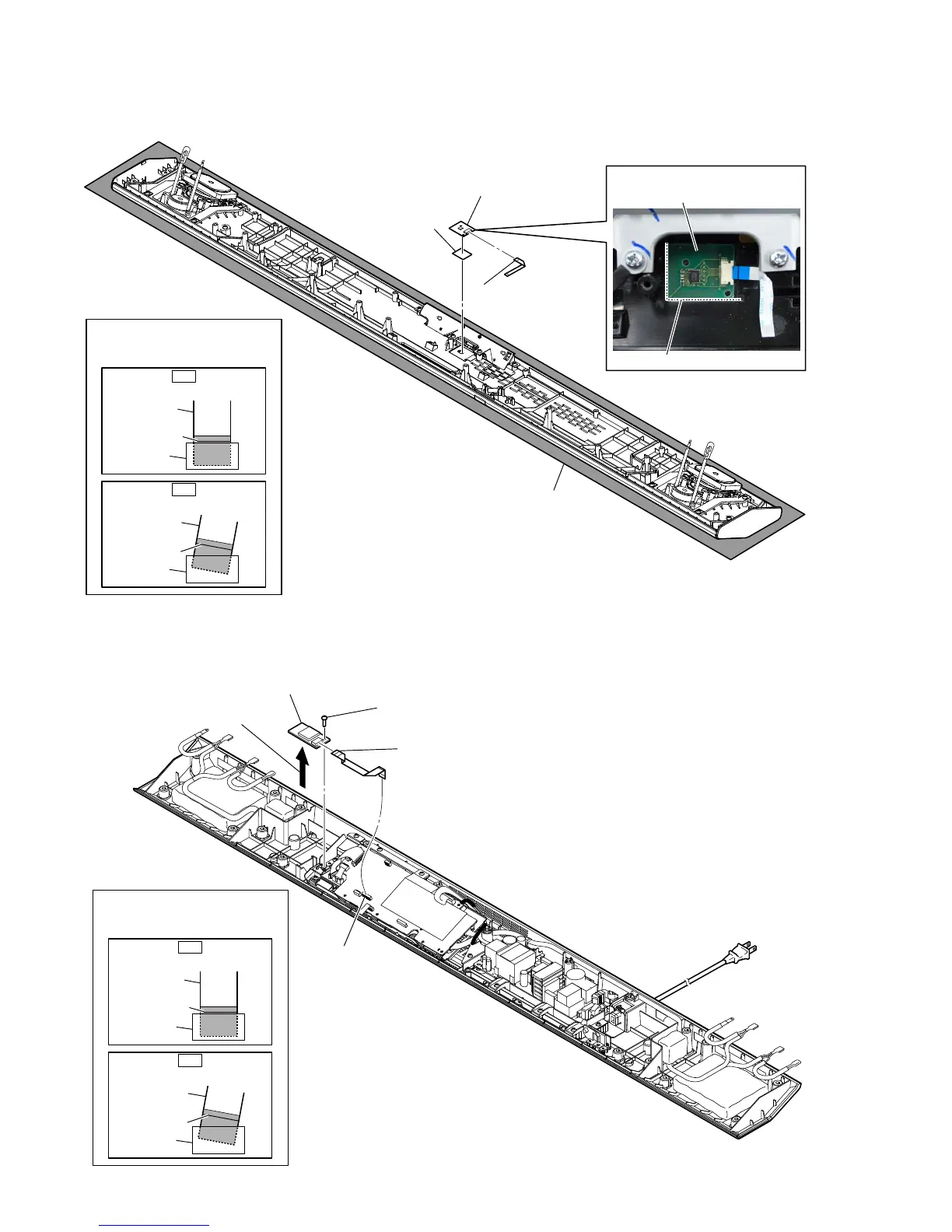

2-8. NFC MODULE (NFC1)
2-9. RF MODULATOR (RF1)
1 Peel off the double
adhesive tape (NFC).
1)&PRGXOH1)&VHWWLQJ
–3DQHOWRSEORFNERWWRPYLHZ–
Note:
Please spread a sheet under a
unit not to injure panel top.
2 flexible flat cable
(8 core) (FFC5)
3 NFC module
(NFC1)
NFC module (NFC1)
guide line
colored line
colored line
Insert is straight to the interior.
Insert is incline
flexible flat
cable
flexible flat
cable
connector
connector
Note:
When installing the flexible flat
cable, ensure the colored line.
No slanting after insertion.
OK
NG
2 screw
(BVTP3 u 8)
4 flexible flat cable (24 core)
(FFC3)
3 Remove the RF modulator block
in the direction of the arrow.
5 RF modulator
(RF1)
colored line
colored line
Insert is straight to the interior.
Insert is incline
flexible flat
cable
flexible flat
cable
connector
connector
Note:
When installing the flexible flat
cable, ensure the colored line.
No slanting after insertion.
1 connector
(CN1003)
OK
NG
