HT-CT770

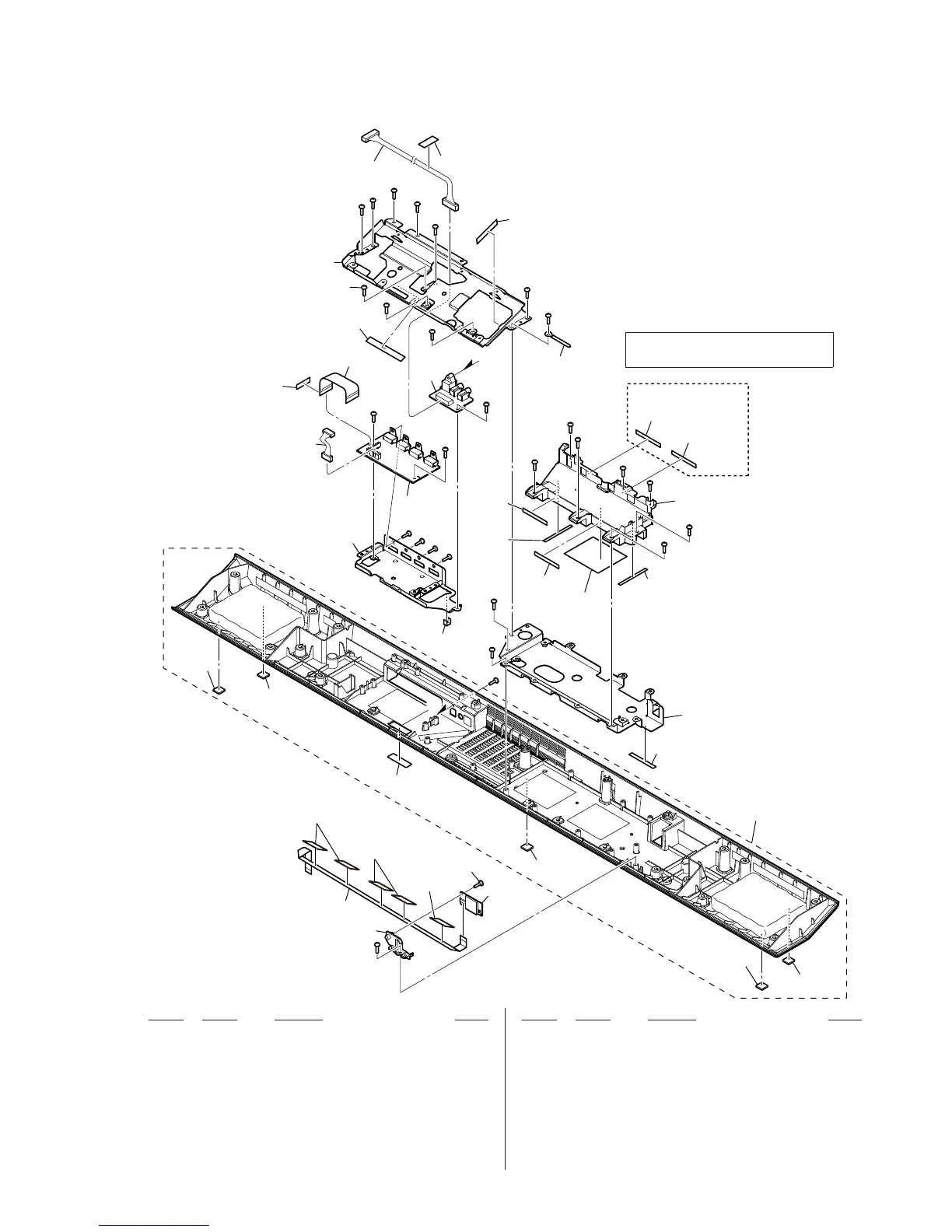

6-4. BOTTOM CABINET SECTION
9 151 A-2041-183-A HDMI BOARD, COMPLETE (for SERVICE)
152 A-1979-511-A IO BOARD, COMPLETE
153 3-704-515-32 SCREW (BV/RING)
154 3-087-053-01 +BVTP2.6 (3CR)
155 A-2045-227-A BOTTOM CABINET ASSY (for SERVICE)
(US, CND)
155 A-2045-230-A BOTTOM CABINET ASSY (for SERVICE)
(Except US, CND)
156 4-488-478-01 CUSHION FOOT
157 4-529-383-01 PLATE (CONNECT)
BT1 1-490-558-92 BLUETOOTH MODULE
FFC1 9-885-194-85 FFC 19P HDMI-MAIN
FFC2 9-885-194-84 FFC 14P BT-MAIN
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-871-01 SCREW +BVTT 3X6 (S)
#5 7-682-546-09 SCREW +B 3X5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
FFC1
#5
#4
#4
#5
#5
#5
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
151
152
153
not supplied
#4
#1
K
K
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
#2
#2
#2
not supplied
#2
FFC2
BT1
not
supplied
not supplied
not supplied
154
156
156
157
156
156
155
156
(See Note)
Ver. 1.1
Note: These parts are deleted from the
midway of production.
