HT-CT770
13

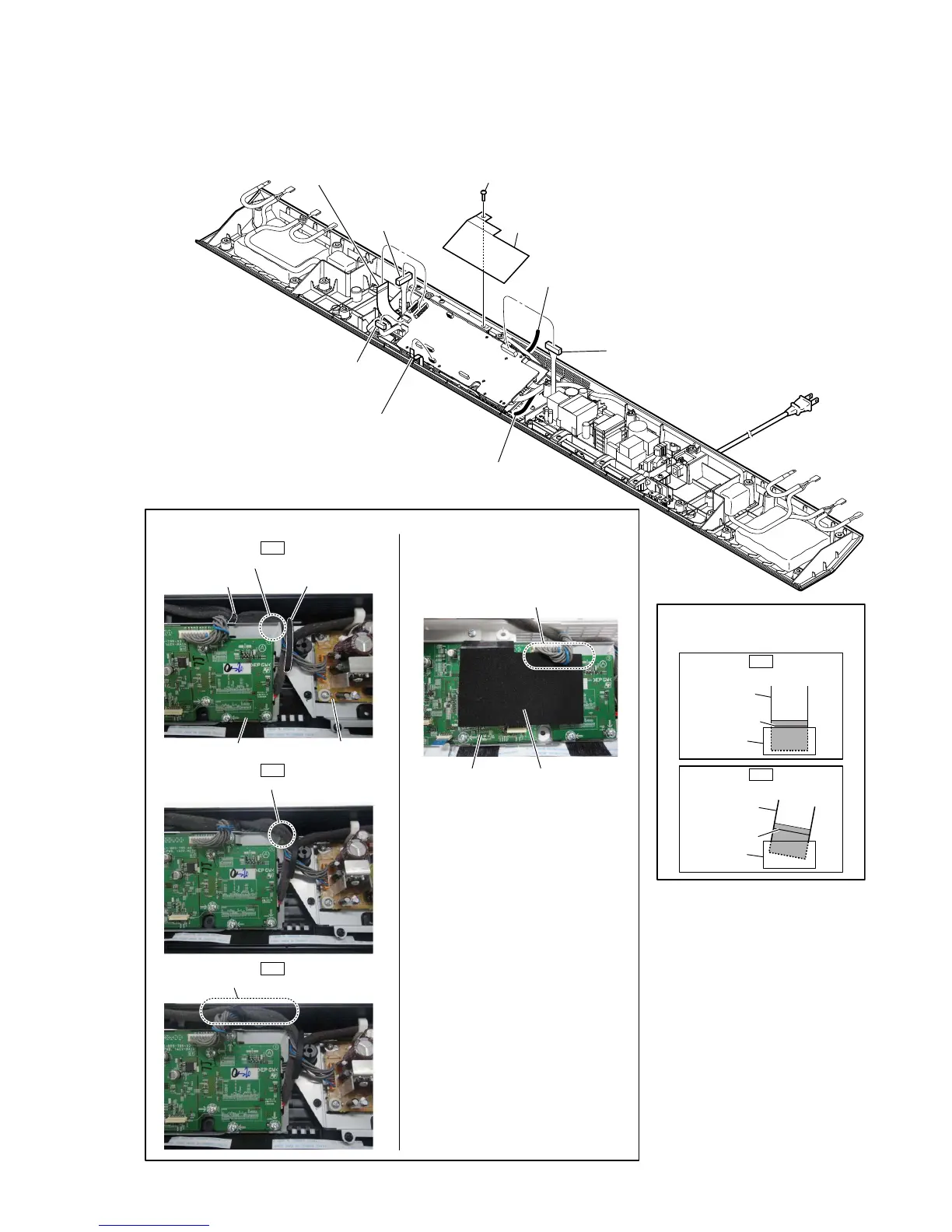

2-10. MAIN BOARD BLOCK-1
• Continued on next page.
colored line
colored line
Insert is straight to the interior.
Insert is incline
flexible flat
cable
flexible flat
cable
connector
connector
Note:
When installing the flexible flat
cable, ensure the colored line.
No slanting after insertion.
4 connector
(CN1005)
(See Fig. A, B)
MAIN board
7 connector
(CN3502)
8 connector
(CN2005)
2 cover (MAIN PWB)
(See Fig. B)
cover (MAIN PWB)
1 screw
(BVTP3 u 8)
MAIN board
POWER board
3 Remove the wire from
the coating clip.
(See Fig. A)
coating clip
Wire is under the bracket (main).
coating clip
3 Remove the wire from the coating clip.
(See Fig. A)
5 flexible flat cable (19 core)
(CN3501)
6 flexible flat cable (14 core)
(CN2001)
:LUHsetting
)LJ$! )LJ%!
Wire is over the bracket (main).
Wire is under the bracket (main).
Arrange the wire, as shown in the
following figure.
Wire is sticking out from the bottom cabinet.
OK
NG
NG
OK
NG
To Next Page
