Sony SA-CT770 User Manual

59
HT-CT770

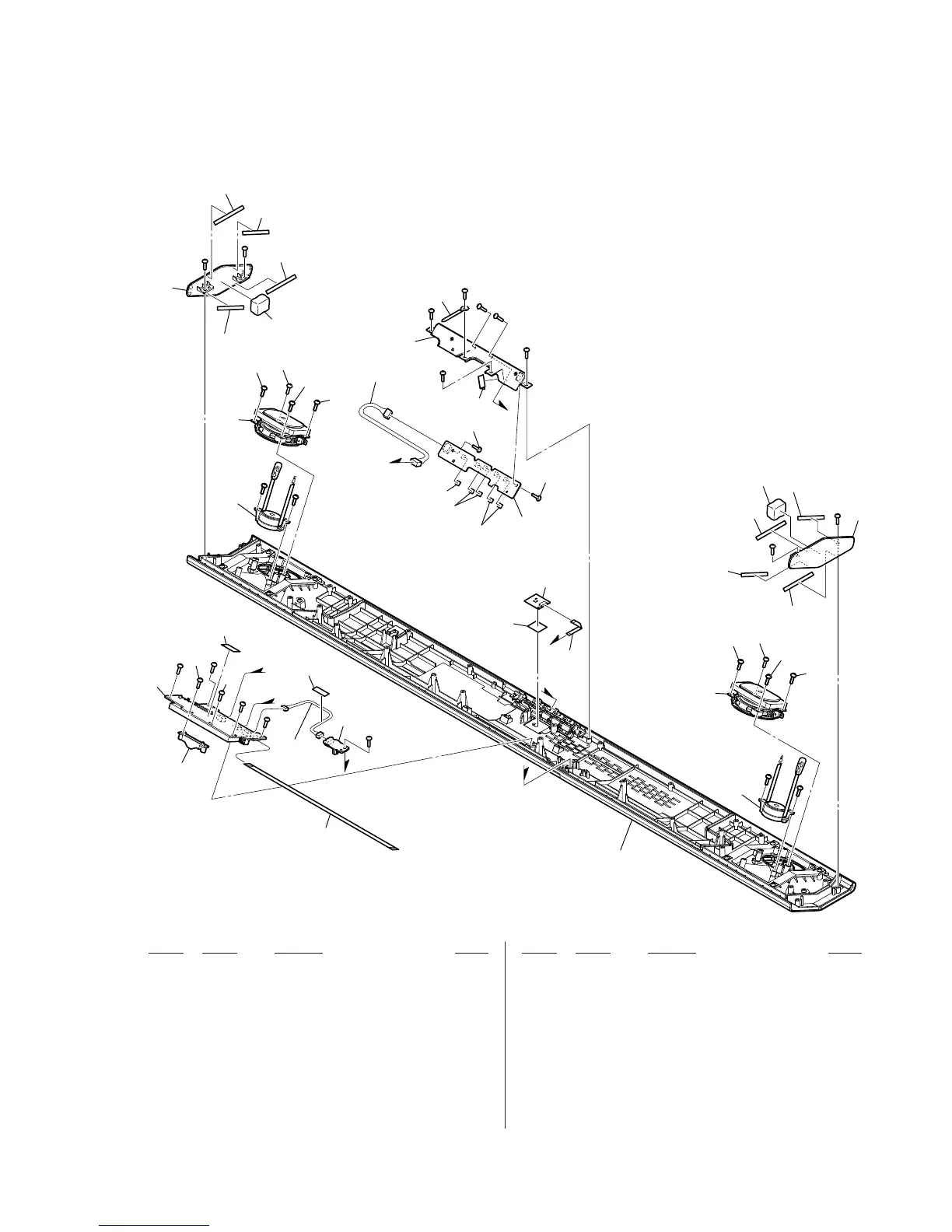

6-2. TOP PANEL SECTION
• Bottom view
51 A-1979-510-A DISPLAY BOARD, COMPLETE
52 3-087-053-01 +BVTP2.6 (3CR)
53 4-480-994-11 PANEL SIDE (Right side)
54 4-459-006-01 DOUBLE ADHESIVE TAPE (NFC)
55 4-480-994-01 PANEL SIDE (Left side)
56 3-077-331-21 +BV3 (3-CR)
57 4-986-971-02 SCREW (3.5)
58 A-2045-218-A TOP PANEL ASSY (for SERVICE) (US, CND)
58 A-2045-221-A TOP PANEL ASSY (for SERVICE)
(Except US, CND)
FFC4 9-885-194-81 FFC 24P DISPLAY-MAIN
FFC5 9-885-194-86 FFC 8P NFC-MAIN
NFC1 8-989-470-05 RC-S801 (NFC module)
SP1 1-858-969-11 LOUDSPEAKER (6 cm) (Woofer) (L-ch)
SP2 1-858-969-11 LOUDSPEAKER (6 cm) (Woofer) (R-ch)
SP3 X-2589-422-1 TW ASSY (Tweeter) (L-ch)
SP4 X-2589-422-1 TW ASSY (Tweeter) (R-ch)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-504-19 SCREW +BTP 2X6 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not
supplied
not supplied
not supplied
(KEY board)
not supplied
not supplied
not supplied
not supplied
(IR board)
not supplied
not supplied
not supplied
NFC1
FFC5
FFC4
#2
#3
#3
#2
#2
#2
#2
#2
#2
#2
not supplied
not supplied
A
A
B
B
C
C
#2
D
D
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
51
52
52
53
54
55
56
56
SP1
57
57
57
57
58
SP3
SP4
SP2
57
57
57
57
Ver. 1.1
