60
HT-CT770

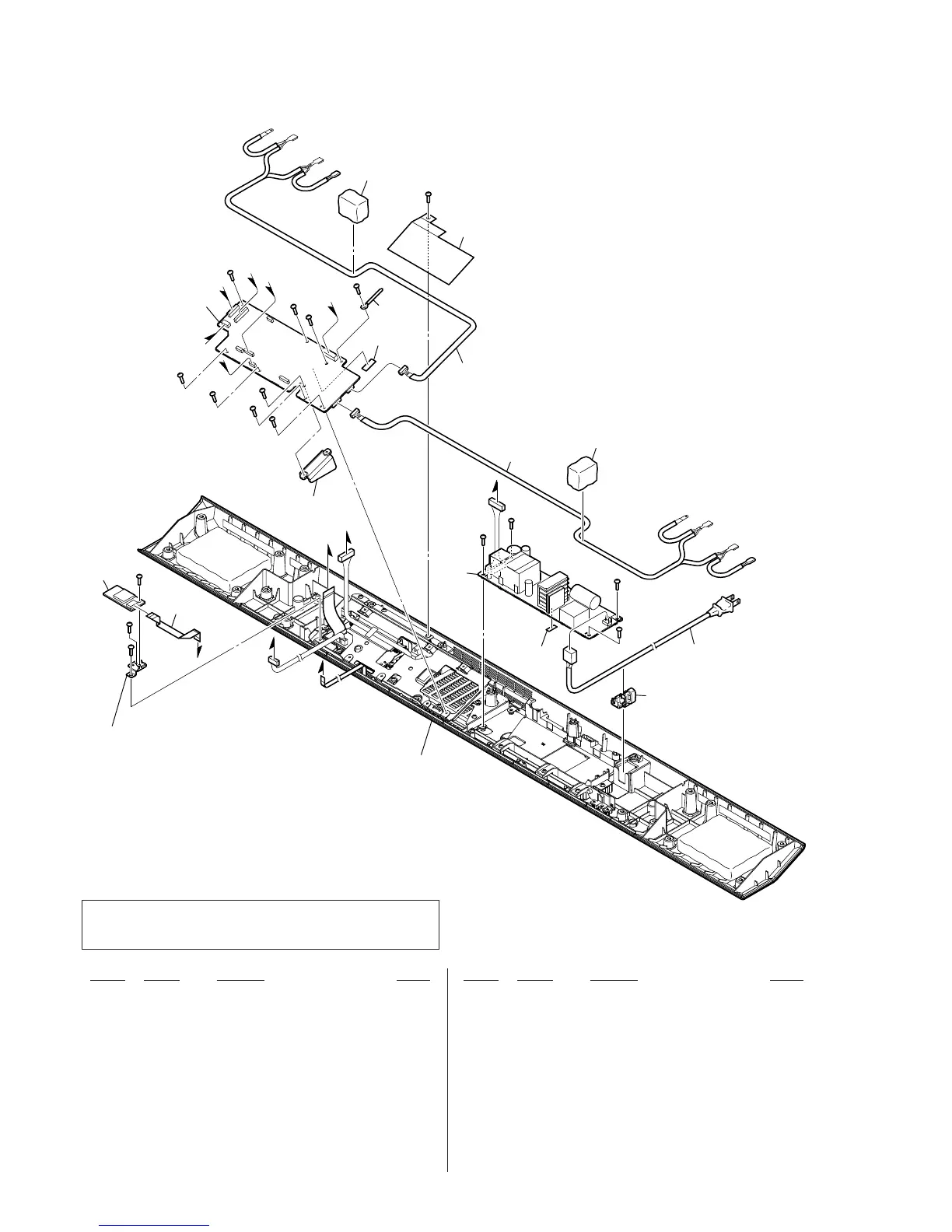

6-3. MAIN BOARD SECTION
101 A-1989-142-A MAIN BOARD, COMPLETE (US, CND) (See Note)
101 A-1989-146-A MAIN BOARD, COMPLETE (AEP, UK) (See Note)
101 A-2046-181-A MAIN BOARD, COMPLETE (TW) (See Note)
101 A-2046-183-A MAIN BOARD, COMPLETE (AUS, CH, EA, SP)
(See Note)
102 4-528-208-01 SHEET RADIATION (T1)
103 A-1979-508-A POWER BOARD, COMPLETE (US, CND, TW)
103 A-1989-271-A POWER BOARD, COMPLETE
(Except US, CND, TW)
0 104 4-966-267-12 BUSHING (FBS001), CORD
0 AC1 1-834-966-41 POWER-SUPPLY CORD (AEP, SP)
0 AC1 1-835-068-21 CORD, POWER (AUS)
0 AC1 1-837-308-11 CORD, POWER-SUPPLY (US, CND)
0 AC1 1-837-345-11 CORD, POWER-SUPPLY (TW)
0 AC1 1-837-822-21 CORD, POWER-SUPPLY (CH)
0 AC1 1-839-999-21 POWER-SUPPLY CORD (UK, EA)
FFC3 9-885-194-82 FFC 24P TX-MAIN
RF1 1-492-347-11 RF MODULATOR (SWA12-4V TX)
SPC1 1-848-071-12 CONNECTION CABLE WITH SPEAKER (L-ch)
SPC2 1-848-071-22 CONNECTION CABLE WITH SPEAKER (R-ch)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-871-01 SCREW +BVTT 3X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: When the complete MAIN board is replaced, refer to “NOTE OF
REPLACING THE IC3001 ON THE MAIN BOARD AND THE
COMPLETE MAIN BOARD” on page 4.
not supplied
not
supplied
SPC1
#2
#2
#2
#2
#2
#2
#2
not supplied
not supplied
SPC2
not supplied
101
102
103
104
#4
#4
AC1
#4
#4
#2
#2
#2
#2
#2
RF1
G
I
I
F
E
J
G
H
F
J
H
not supplied
FFC3
not supplied
E
#2
bottom cabinet section
Ver. 1.1
