HT-CT770
14

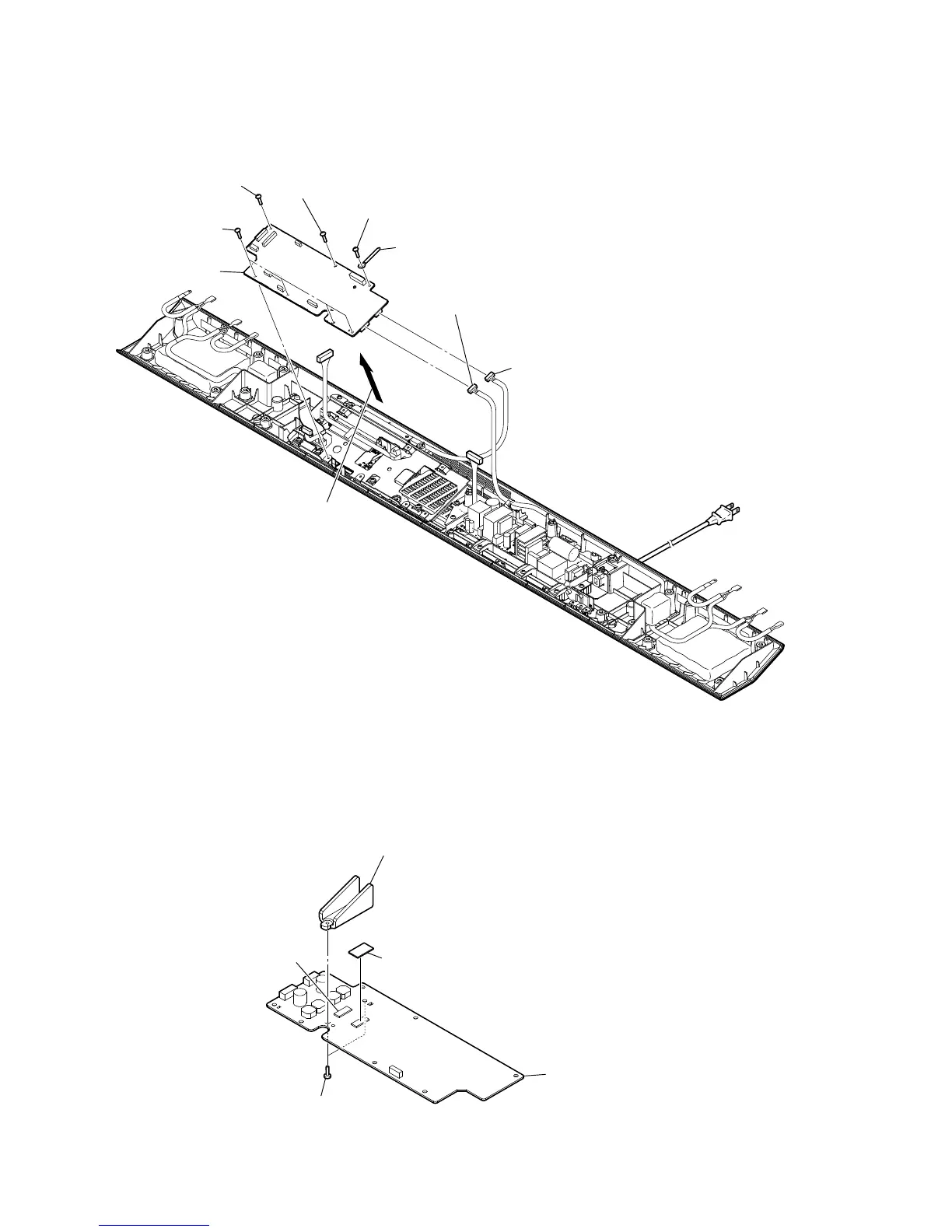

2-11. MAIN BOARD BLOCK-2
2-12. MAIN BOARD
4 connector
(CN3001)
5 connector
(CN3002)
1 four screws
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
2 coating clip
3 Remove the MAIN board block
in the direction of the arrow.
6 MAIN board block
1 sheet radiation (T1)
4 MAIN board
IC3001
2 two screws
(BVTP3 u 8)
3 heatsink (main)
Note:
When you install the heatsink (main),
spread the compound referring to “NOTE
OF REPLACING THE IC3001 ON THE
MAIN BOARD AND THE COMPLETE
MAIN BOARD” on servicing notes
(page 4).
To Next Page
