Sony STR-ZA5000ES User Manual

Optimizer microphone (supplied)
[41] Preparation
Performing Auto Calibration
4. Selecting the front speakers
You can select the front speakers you want to operate.
Be sure to use the buttons on the receiver to perform this operation.
The indicators on the display panel shows which set of terminals are selected.
SP A:
Speakers connected to the SPEAKERS FRONT A terminals.
SP B (*):
Speakers connected to the SPEAKERS SURROUND BACK (FRONT B/BI-AMP/ZONE 2)
terminals.
SP AB (*):
Speakers connected to both the SPEAKERS FRONT A and SPEAKERS SURROUND
BACK (FRONT B/BI-AMP/ZONE 2) terminals (parallel connection).
(None):
[SPEAKERS OFF] appears on the display panel. No audio signals are output from any
speaker terminals, or the PRE OUT jacks.
[42] Preparation
Performing Auto Calibration

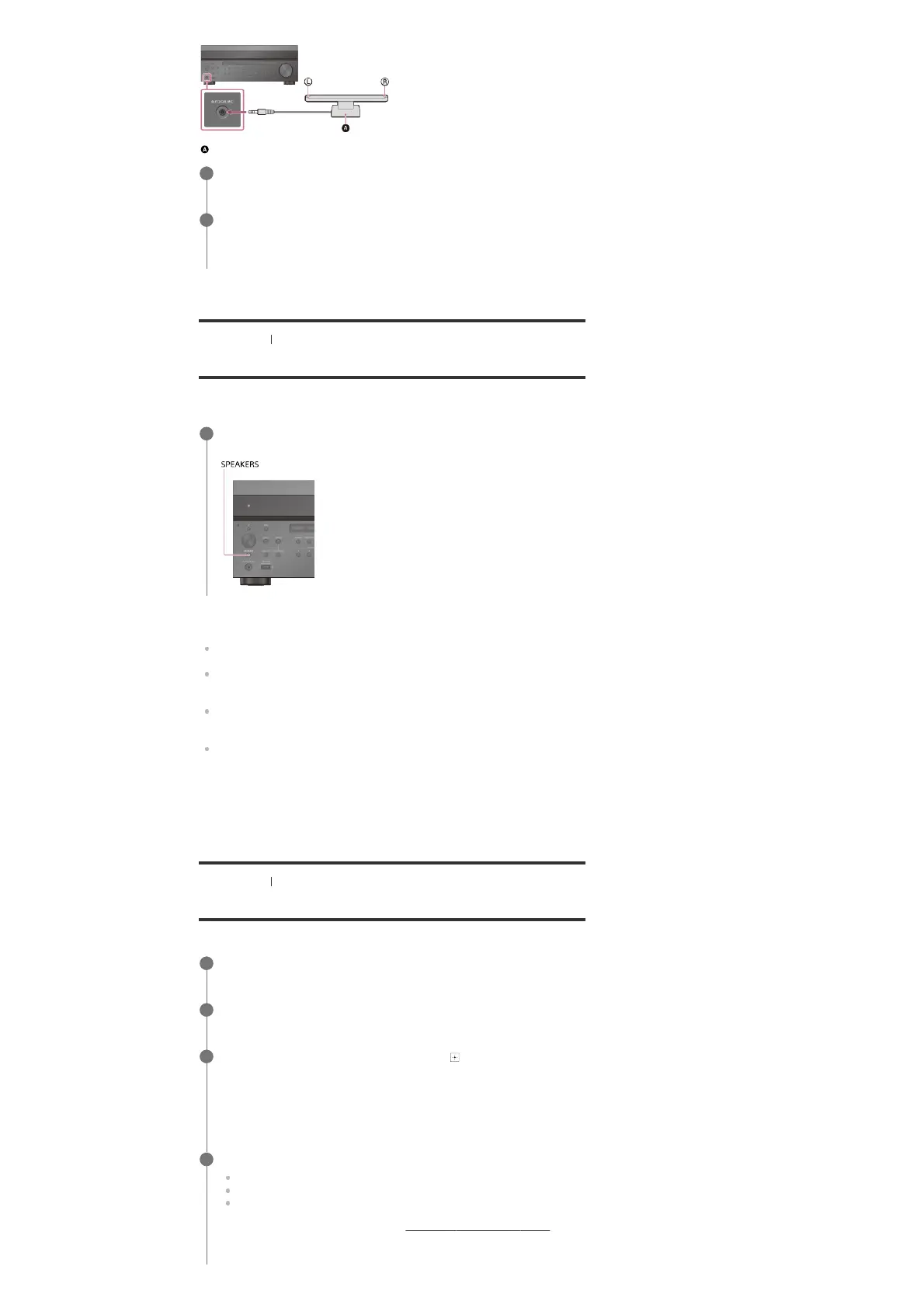

5. Performing Auto Calibration
You can perform automatic calibration from your listening position.
Connect the supplied optimizer microphone to the AUTO CAL MIC jack.
1
Set up the optimizer microphone.
Place the optimizer microphone at your listening position and set it at the same height as
your ears.
2
Press SPEAKERS on the receiver repeatedly to select the front speaker system you
want to operate.
1
To select [SP B] or [SP AB], set the assignment for the SPEAKERS SURROUND BACK (FRONT B/BI-
AMP/ZONE 2) terminals to [Front B] by using [SB Speaker Assign] in the [Speaker Setup] menu.
*
Select [Setup] - [Speaker Setup] from the home menu.
1
Select [Auto Calibration].
2
Follow the instructions on the TV screen, then press
to select [Start].
The measurement starts in 5 seconds.
The measurement process will take approximately 30 seconds with a test tone.
When the measurement ends, a beep sounds and the screen switches.
3
Select the item you want.
Save: Saves the measurement results and exits the setting process.
Retry: Performs the Auto Calibration again.
Discard: Exits the setting process without saving the measurement results.
For details on the measurement results, see “6. Checking
Auto Calibration results.”
4
