44
(E)
Chapter 2 Menu

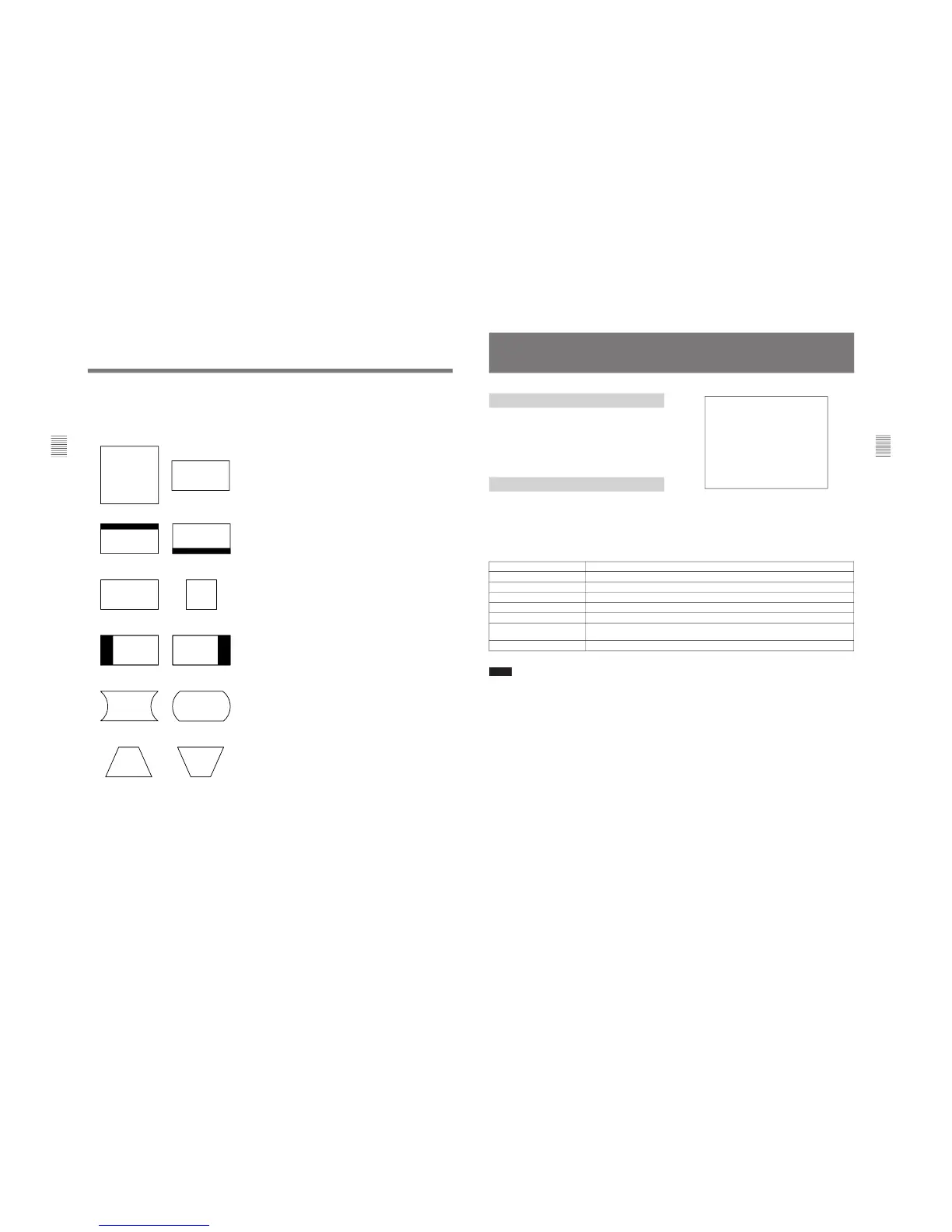

[G] ALIGNMENT menu
Adjust the position, size or geometry of the picture
with the UP and DOWN buttons or PHASE knob.
V SIZE: Adjust the height of the picture.
V CENTER: Adjust the vertical picture position.
H SIZE: Adjust the width of the picture.
H PHASE: Adjust the horizontal picture position.
H PIN: Correct side pincushion distortion.
H KEY: Correct trapezoid distortion.
(continued)
G Adjusting the Position, Size and Geometry of the Picture — ALIGNMENT Menu
ADDRESS Menu
Overview
When multiple monitors are connected by a serial
remote connection, the ADDRESS menu is used to
choose whether one particular monitor or monitor
group will be controlled, or whether operations are to
be performed on all monitors together.
Displaying the ADDRESS Menu
Press the ADDRESS button.
The ADDRESS menu is displayed on the screen.
By pressing the ENTER or Ent button after selecting
the item, serial remote operation becomes activated.
Settings made with the menu items are as follows:
Item
SINGLE
GROUP
ALL
ALL POWER ON
ALL POWER OFF
DISPLAY MONITOR ADDRESS
DISPLAY GROUP ADDRESS
Function
Controls only a specified monitor. Enter the monitor address number.
Controls only a specified monitor group. Enter the group address number.
Controls all monitors.
Turns all connected monitors on.
Turns all connected monitors off.
When this item is selected, each connected monitor displays its monitor address on its
screen.
When this item is selected, each connected monitor displays its group address on its screen.
Notes
•To remotely control monitors connected in serial,
MONITOR ADDRESS or GROUP ADDRESS of
monitors should be correctly set in the REMOTE
menu.
For details of the REMOTE menu, see “[D] Assigning the
Remote Control Functions – REMOTE Menu” on page
37(E).
- In GROUP or ALL mode, the LEDs of the
function buttons will not light with controlled
from the menu. (LEDs light only when you press
the function button.)
- In GROUP or ALL mode, LEDs of controlled
monitor will light as follows.
Selecting the Monitor to Control
— ADDRESS Menu
• In case of SHIFT OFF before remote control
operation: LEDs light in green when the SHIFT
button is remotely set to OFF.
For details, see “SHIFT button” on page10(E) for BVM-
D9H5U/D9H5E/D9H5A or on page 19(E) for BVM-
D14H5U/D14H5E/D14H5A.
• In case of SHIFT ON before remote control
operation: LEDs light in amber when the SHIFT
button is remotely set to ON.
For details, see “SHIFT button” on page11(E) for BVM-
D9H5U/D9H5E/D9H5A or on page 20(E) for BVM-
D14H5U/D14H5E/D14H5A.
To Next Page
