3-8
BVM-D9H1U/D9H5U/D9H1E/D9H5E/D9H1A/D9H5A

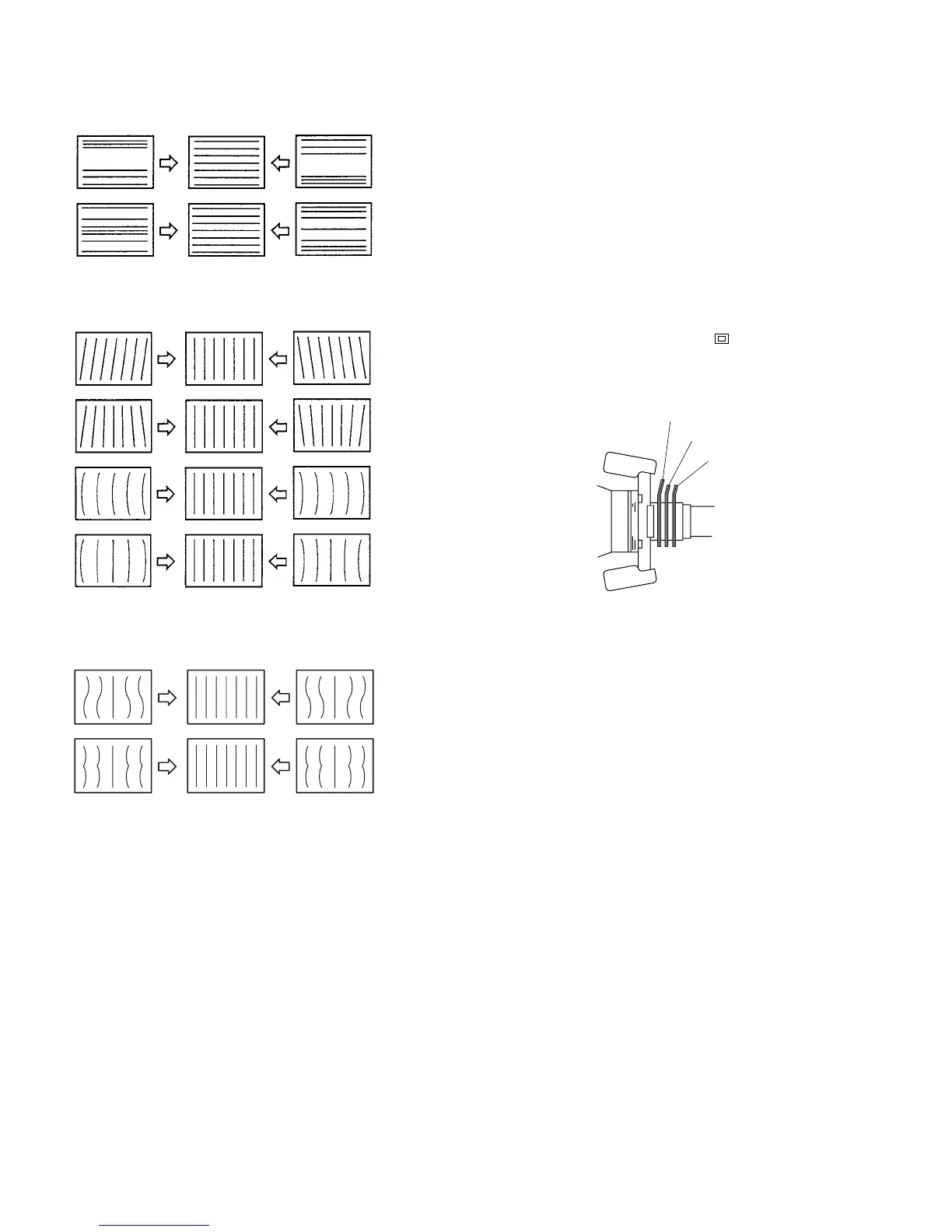

Fig. 1-8
V LIN BAL
V LIN AMP
H KEY
BAL
H KEY
H PIN
BAL
H PIN
Fig. 1-9
Fig. 1-10
Purity
6-pole
4-pole
[Convergence Adjustment]
. Preparation
1. Connect the 480/60p cross-hatch signal to the ANA-
LOG Y/G input connector.
2. Press the SHIFT button to ON. [The LED (orange) on
top of the button turns on.]
3. Press the 16:9 OFF button [to turn off the LED
(orange)] to select the 4:3 mode.
4. Press the SHIFT button to OFF. [The LED (orange)
on top of the button turns off.]
5. Press the UNDER SCAN button ( ) to its OFF
position to select the NORMAL mode.
[The green LED turns off.]
Fig. 1-11
H COR S
H COR PIN
