2-2

BVM-D9H1U/D9H5U/D9H1E/D9H5E/D9H1A/D9H5A

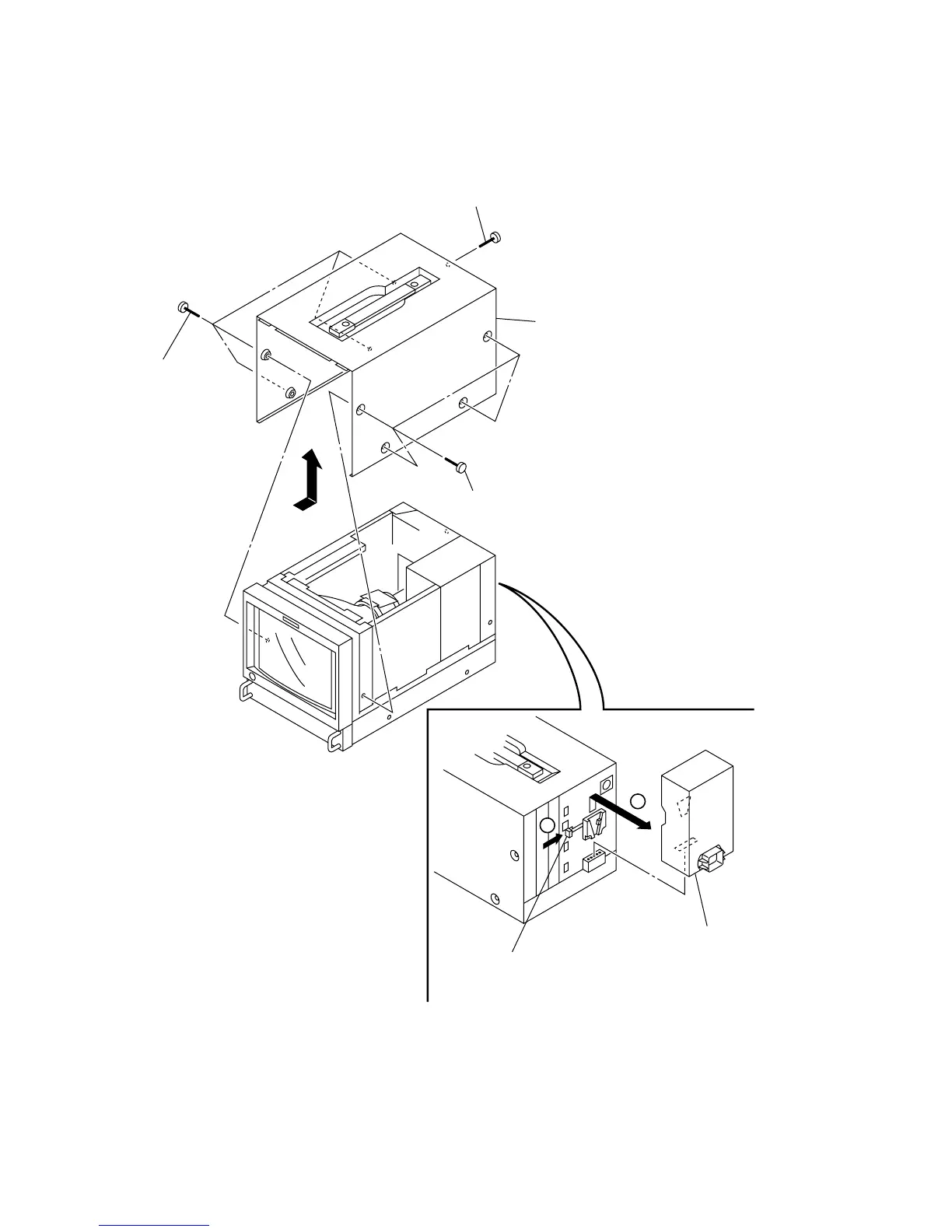

2-2-1. Cabinet Assy Removal

1 Push lever in the

direction shown by the arrow A.

2 Remove power unit

complete assy in the

direction shown by the arrow B.

3 Four screws

(Case screw OS)

4 Four screws

(Case screw OS)

6 Cabinet assy

5 Screw

(+B 3 × 8)
