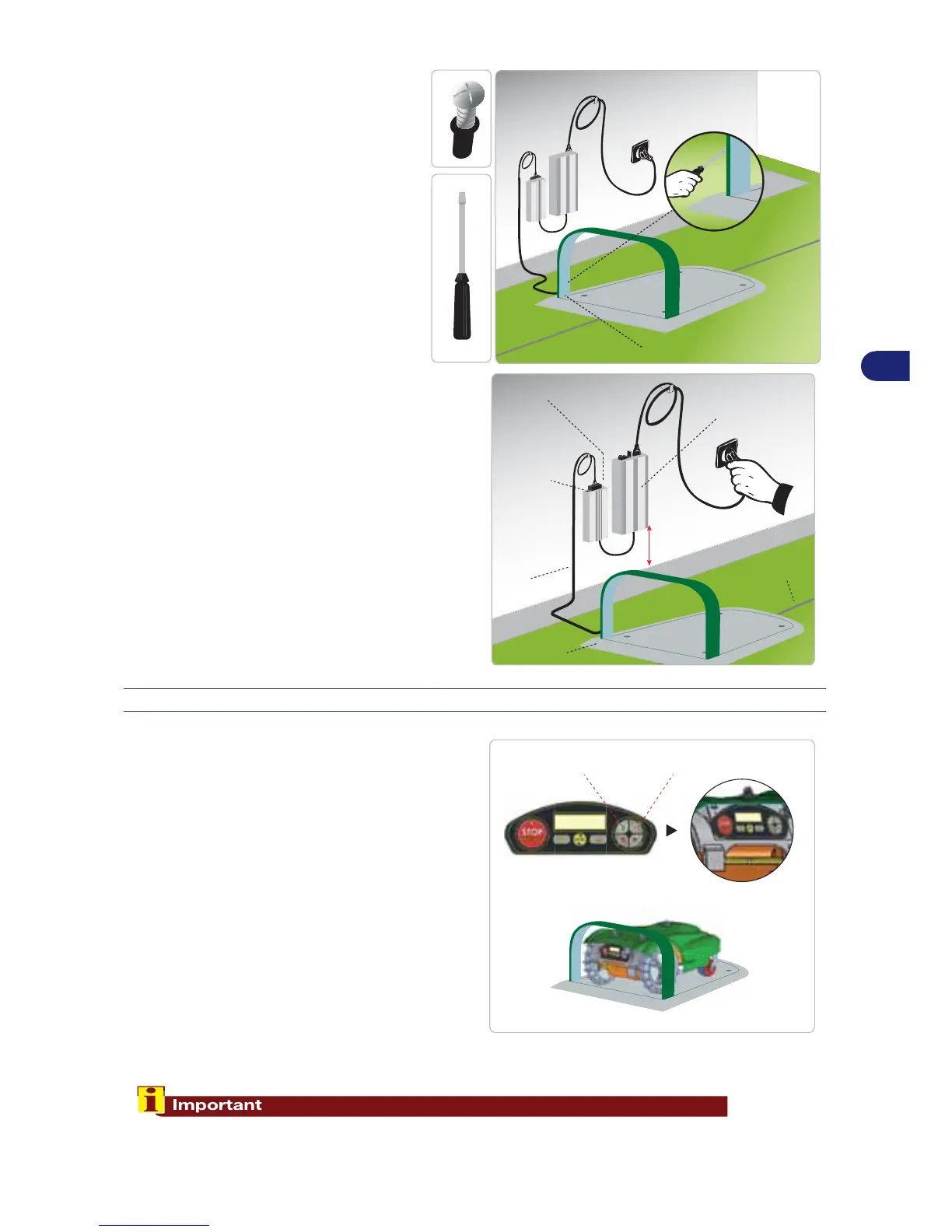

8. Replace the protection (L).
9. Connect the power cord (E) of
the charging station (F) to the
transmitter (B).
10. Connect the plug of the power
supply unit (A) to the electrical
outlet.
11.
If the LED (H)  ashes,the connection
is correct. If not, search for the fault
(see “Troubleshooting Guide”)
protection (L)
current power
supply unit (A)
power cord (E)
Perimeter
wire
transmitter (B)
led (H)
H. min. 160 cm
(63.00 inc.)
charging station
BATTERY CHARGE ON FIRST USE
1. Place the robot inside the charging
station.
2. Press the ON key.
3. After a few seconds, the message
“CHARGING” will appear on the
display.
4. Press the “Start/Pause” key. The
“PAUSE” function appears on the
display. The batteries start the
charging cycle.
5. At the end of the charging, the
robot can be programmed for the
initial start-up (see “Programming
Mode”).
"ON" "START/PAUSE" KEY
On  rst recharge, the batteries must remain connected for at least 24 hours
