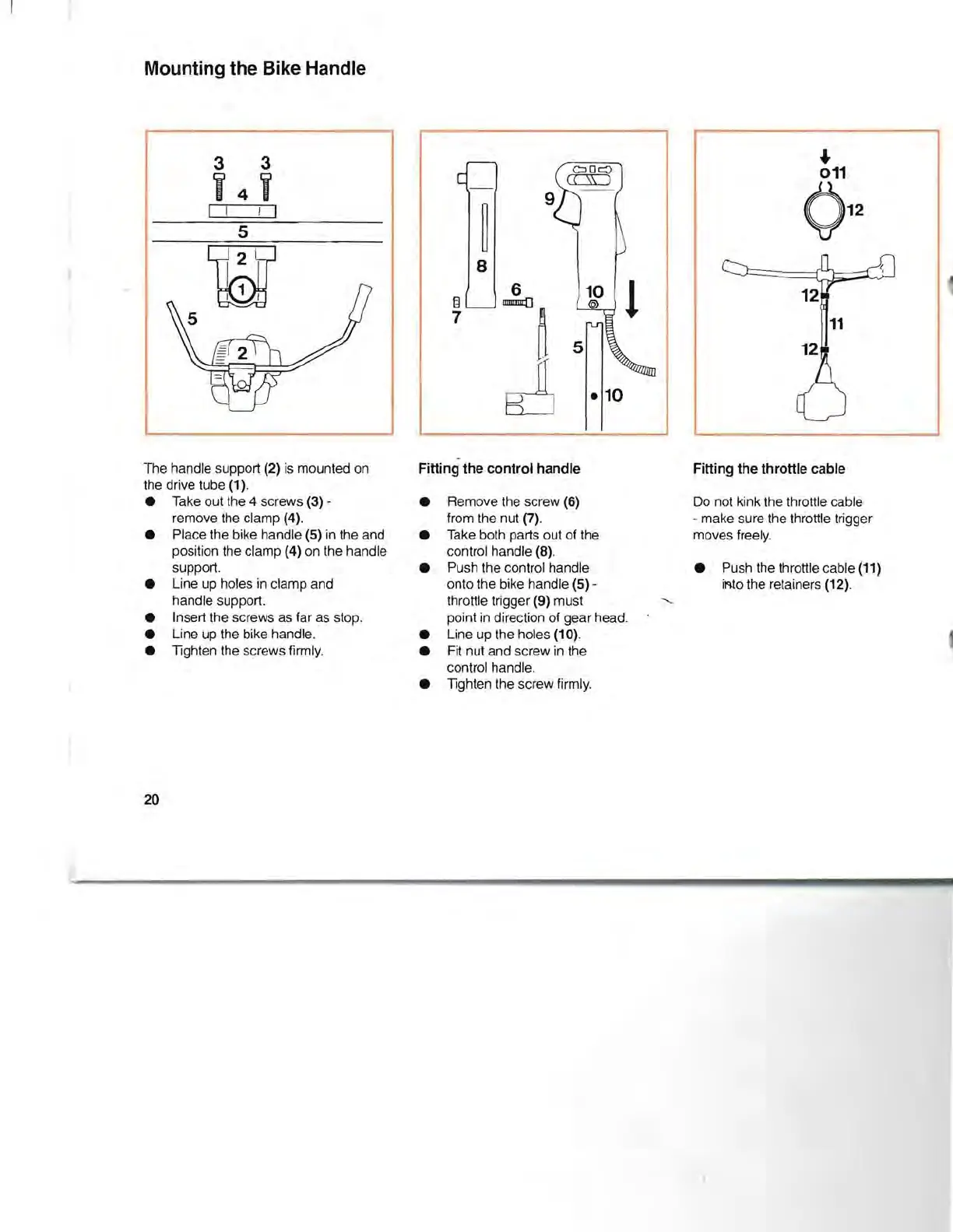

Mounting the Bike Handle
12
11
12
3
3
,
4
i
I I I I
~
5
~
8
6
§
J
7
.10
The handle support (2) is mounted on
the drive tube (1).
• Take out the 4 screws
(3) -
remove the clamp (4).
• Place the bike handle
(5) in the and
position the clamp
(4) on the handle
support.
• Line up holes
in clamp and
handle support.
• Insert the screws as far as stop.
• Line up the bike handle.
•
Tighten the screws firmly.
Fitting the control handle
• Remove the screw
(6)
from the nut (7).
• Take both parts out of the
control handle (8).
• Push the control handle
onto the bike handle
(5) -
throttle trigger (9) must
point
in direction of gear head.
• Line up the holes
(10).
• Fit nut and screw in the
control handle.
•
Tighten the screw firmly.
Fitting the throttle cable
Do not kink the throttle cable
- make sure the throttle trigger
moves freely.
• Push the throttle cable
(11)
iAto the retainers (12).
