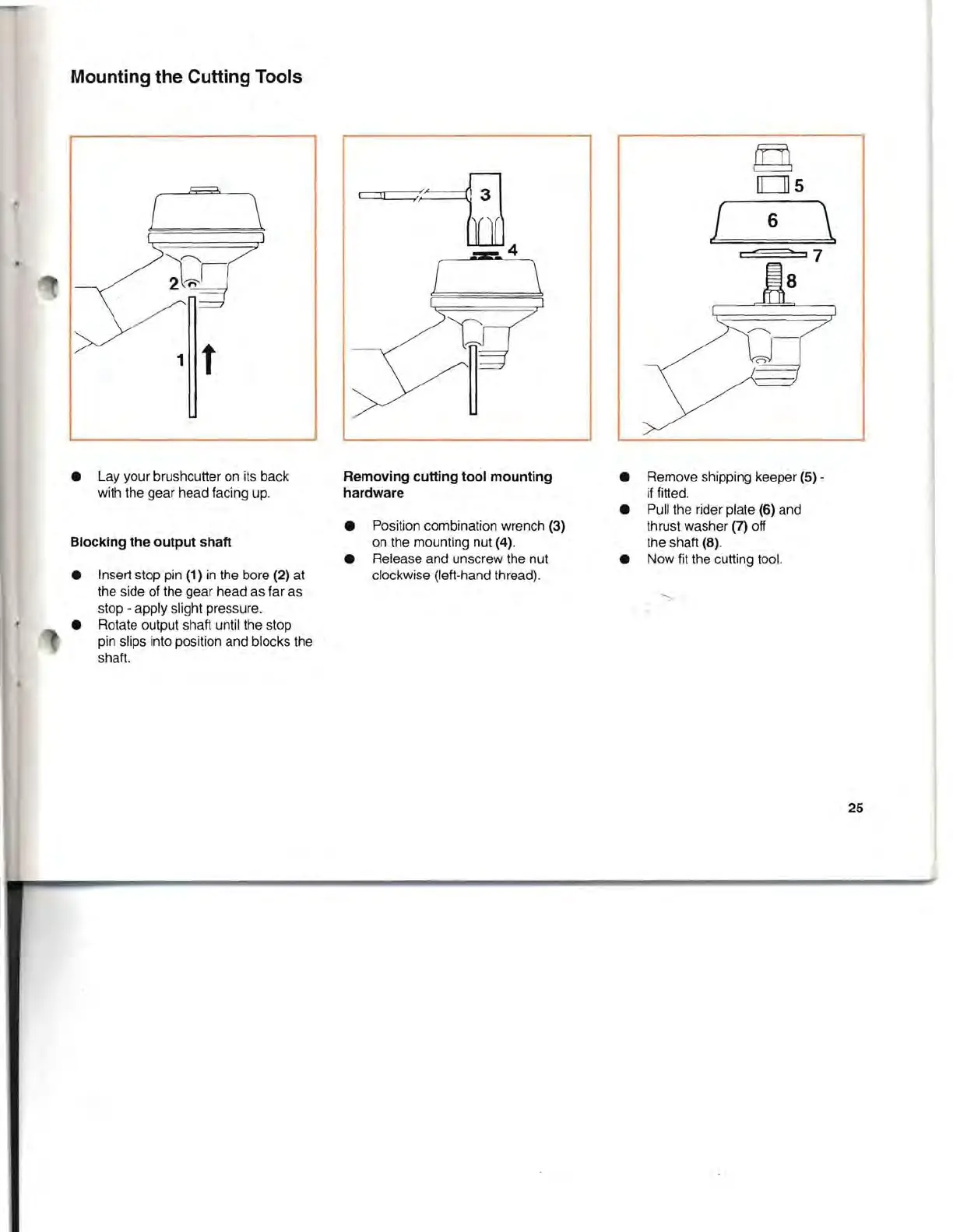

Mounting the Cutting Tools
8
6 \
f
\
\
1 t
[
• Lay your brushcutter on its back
with the gear head facing up.
Blocking the output shaft
• Insert stop pin (1) in the bore (2) at
the side of the gear head as far as
stop - apply slight pressure.
• Rotate output shaft until the stop
pin slips into position and blocks the
shaft.
Removing cutting tool mounting
hardware
• Position combination wrench (3)
on the mounting nut (4).
• Release and unscrew the nut
clockwise (left-hand thread).
• Remove shipping keeper
(5) -
if fitted.
• Pull the rider plate
(6) and
thrust washer
(7) off
the shaft (8).
• Now fit the cutting tool.
