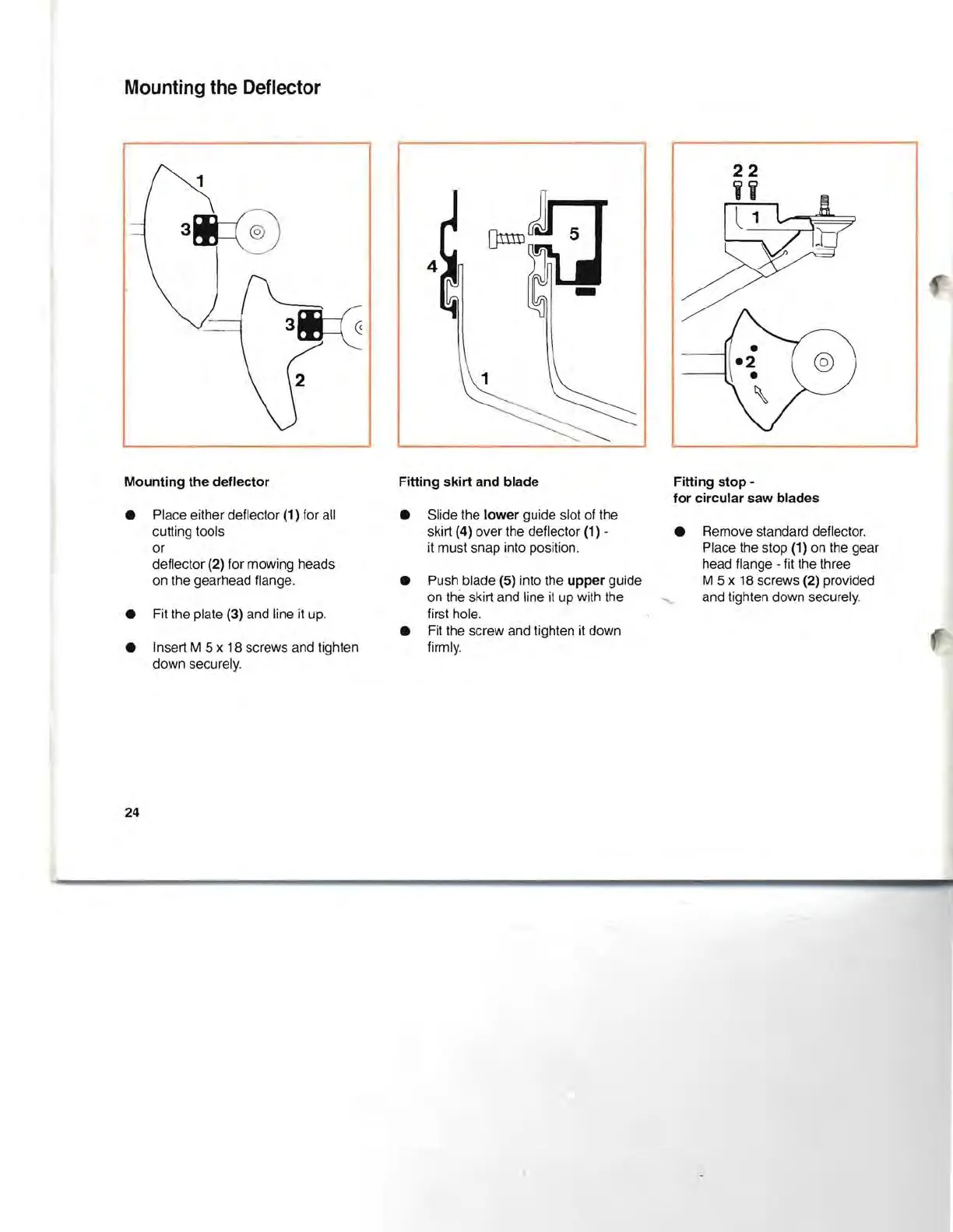

Mounting
the
Deflector
1
3~
4
Mounting the deflector
• Place either deflector (1) for all
cutting tools
or
deflector (2) for mowing heads
on the gearhead flange.
• Fit the plate
(3) and line it up.
• Insert M 5 x 18 screws and tighten
down securely.
24
Fitting skirt and blade
• Slide the lower guide slot of the
skirt
(4) over the deflector (1) -
it must snap into position.
• Push blade
(5) into the upper gUide
on
the skirt and line it up with the
first hole.
• Fit the screw and tighten
it
down
firmly.
Fitting stop -
for circular saw blades
• Remove standard deflector.
Place the stop
(1) on the gear
head flange - fit the three
M 5 x 18 screws
(2) provided
and tighten down securely.
