@8
[
\6
::==::...,
5
3
7
4
Circular saw blade 200
(chisel and scratcher tooth)
Fit the appropriate stop
before mounting circular saw blade.
Fitting the stop see chapter "Mounting
the Deflector".
30

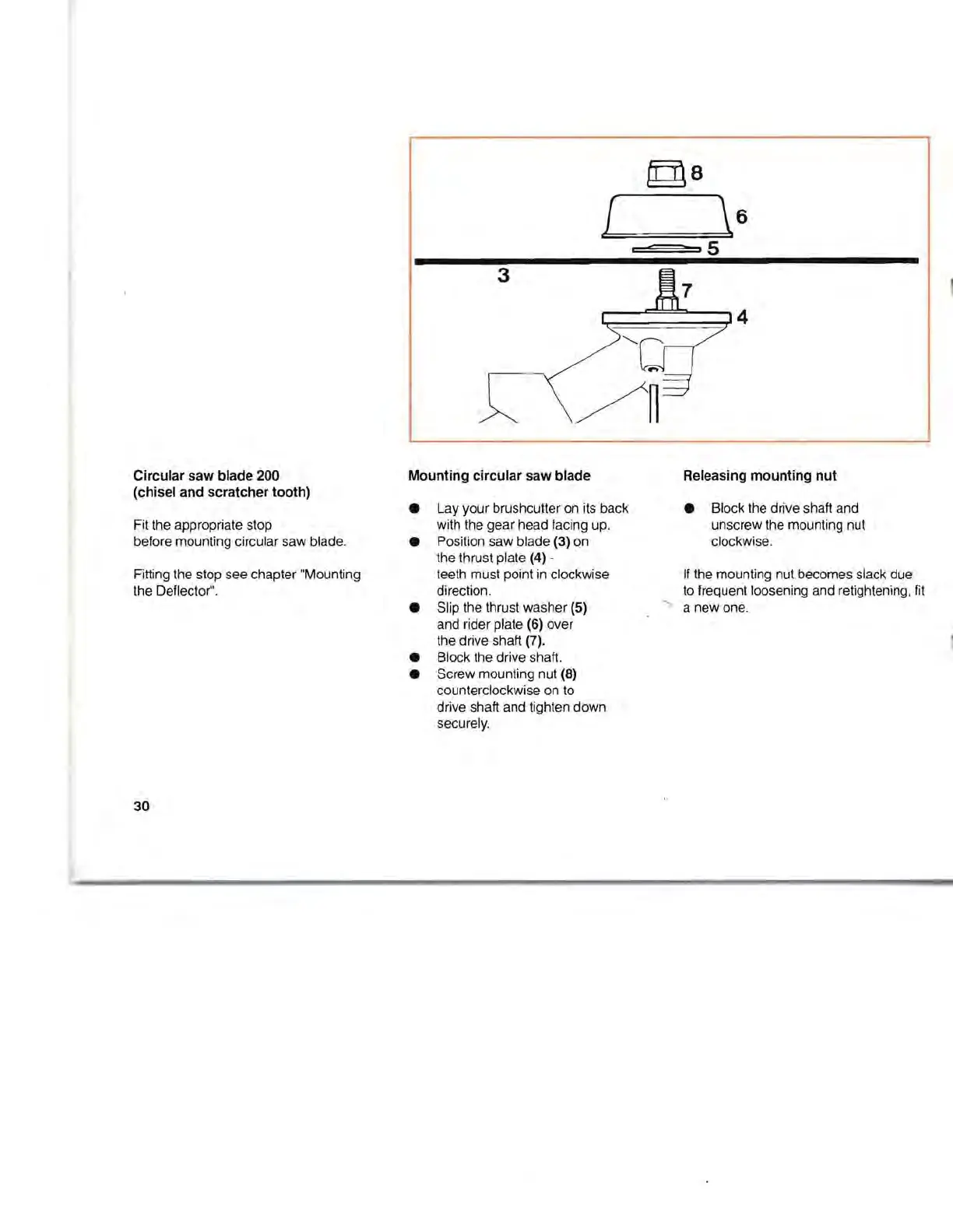

Mounting circular saw blade
• Lay your brushcutter on its back
with the gear head facing up.
• Position saw blade
(3) on
the thrust plate
(4) -
teeth must point
in
clockwise
direction.
• Slip the thrust washer
(5)
and rider plate (6) over
the drive shaft
(7).
• Block the drive shaft.
• Screw mounting nut
(8)
counterclockwise on to
drive shaft and tighten down
securely.
Releasing mounting nut
• Block the drive shaft and
unscrew the mounting nut
clockwise.
If
the mounting nut becomes slack due
to frequent loosening and retightening, fit
a new one.
