On FS 88
• Place the clamp (3) in the loop
handle (1).
• Place packing sleeve
(5)
on the drive tube (4).
• Fit the clamp
(6) -
line up the holes.
• Insert screws
(7) in holes and
screw on the nuts
(8) fingertight.
• Align the loop handle.
• Lock the nuts and tighten
the screws firmly.

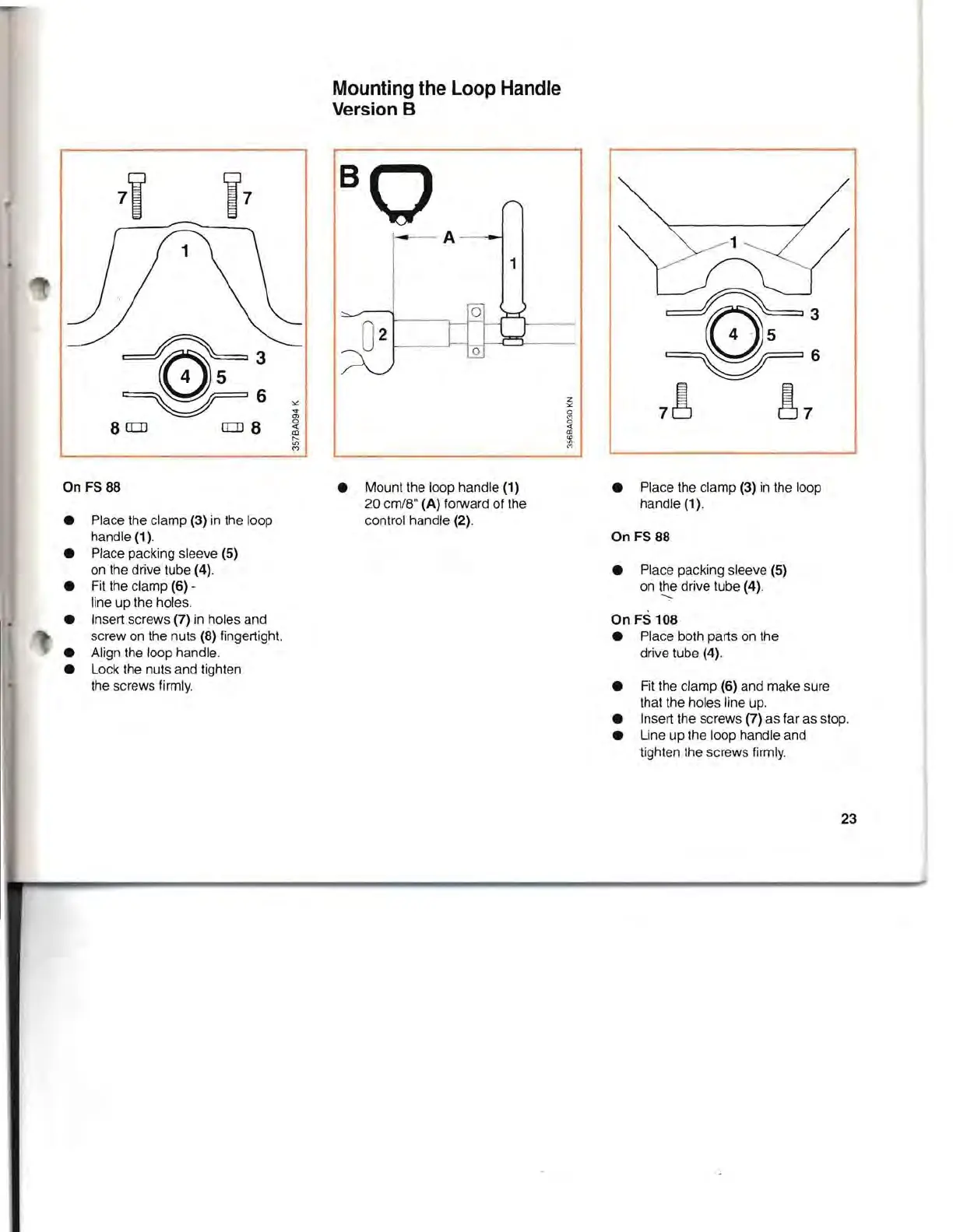

Mounting the Loop Handle
Version B
• Mount the loop handle (1)
20 cm/8" (A) forward of the
control handle (2).
• Place the clamp
(3) in the loop
handle (1).
On FS 88
• Place packing sleeve (5)
on the drive tube (4).
"'-
On FS 108
• Place both parts on the
drive tube (4).
• Fit the clamp
(6) and make sure
that the holes line up.
• Insert the screws
(7) as far as stop.
• Line up the loop handle and
tighten the screws firmly.
23
