EN
37
0478 131 8354 D - EN

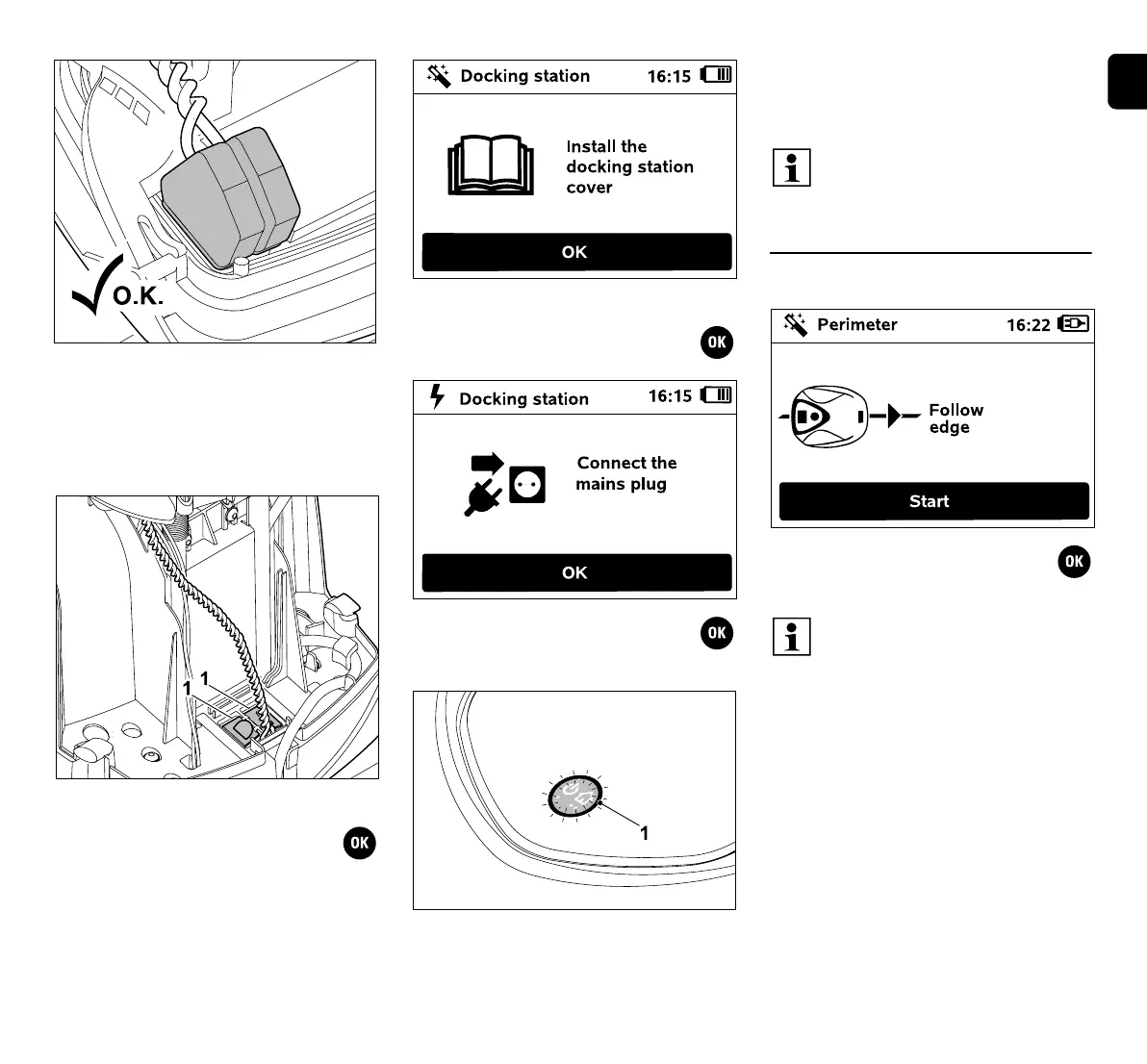

Fit the grommets over the terminal blocks.
Check the seating of the wire ends in the
terminal block: the two wire ends must be
firmly fastened.
● Close the panel. (Ö 9.2)
Close the cover of the cable duct (1).
● After completing this installation
work, press the OK button on the
control panel.
Install the cover. (Ö 9.2)
Then press the OK button on the
control panel.
Connect the power supply unit plug
to the mains, then press the OK
button.
When the perimeter wire is correctly
installed and the docking station is
connected to the mains power supply, the
LED (1) illuminates.
9.12 Checking installation
Start edge following by pressing the
OK button – this does not activate the
mowing blade.
Note the "Docking station controls"
section, particularly if the LED does
not illuminate as described.
(Ö 13.1)
The robotic mower alternately
follows the edge of the mowing
area in both directions during
running operation after initial
installation. Edge following should
therefore also be checked in both
directions during initial installation.
