EN
41
0478 131 8354 D - EN
– Viewing and editing the mowing plan
– Starting mowing
– Switching automatic mowing on and off
– Sending the robotic mower to the
docking station
– Changing the date and time
– Calling up machine information and the
location of the robotic mower

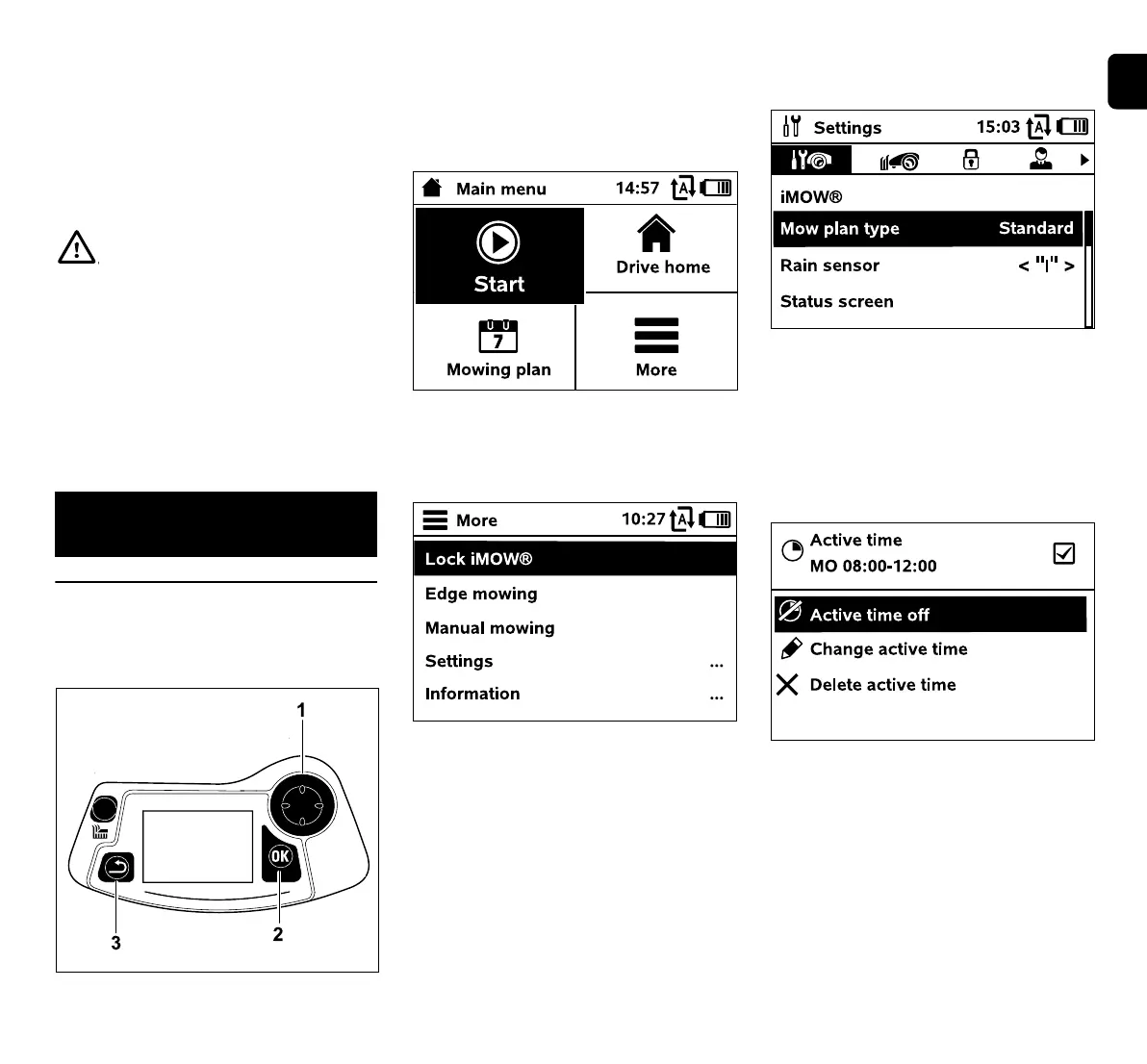

11.1 Operating instructions
● Remove the control panel if necessary.
(Ö 15.2)
The control pad (1) serves for navigation in
the menus. Settings are confirmed and
menus opened using the OK button (2).
Menus can be exited again using the Back
button (3).
The main menu comprises 4 submenus,
displayed as buttons. The selected
submenu has a black background and is
opened using the OK button.
The second menu level is displayed as a
list. You move up and down through the
submenus by pressing the control pad.
Active menu entries have a black
background.
The scroll bar at the right edge of the
display indicates that further entries can be
displayed by pressing the control pad
downwards or upwards.
Submenus are opened by pressing the OK
button.
The "Settings" and "Information"
submenus are displayed tabs.
Tabs are selected by pressing the control
pad to the left or right, submenus by
pressing the control pad downwards or
upwards.
Active tabs and menu entries have a black
background.
Options are listed in the submenus. Active
list entries have a black background.
Pressing the OK button opens a selection
or a dialog window.
Changing the mowing plan, starting
a mowing operation, switching
automatic mowing on and off,
sending the robotic mower home
and changing the date and time can
result in activities that will not be
expected by other people. Affected
people must therefore always be
notified in advance about possible
activities of the robotic mower.
11. Menu
