0478 131 8354 D - EN
6

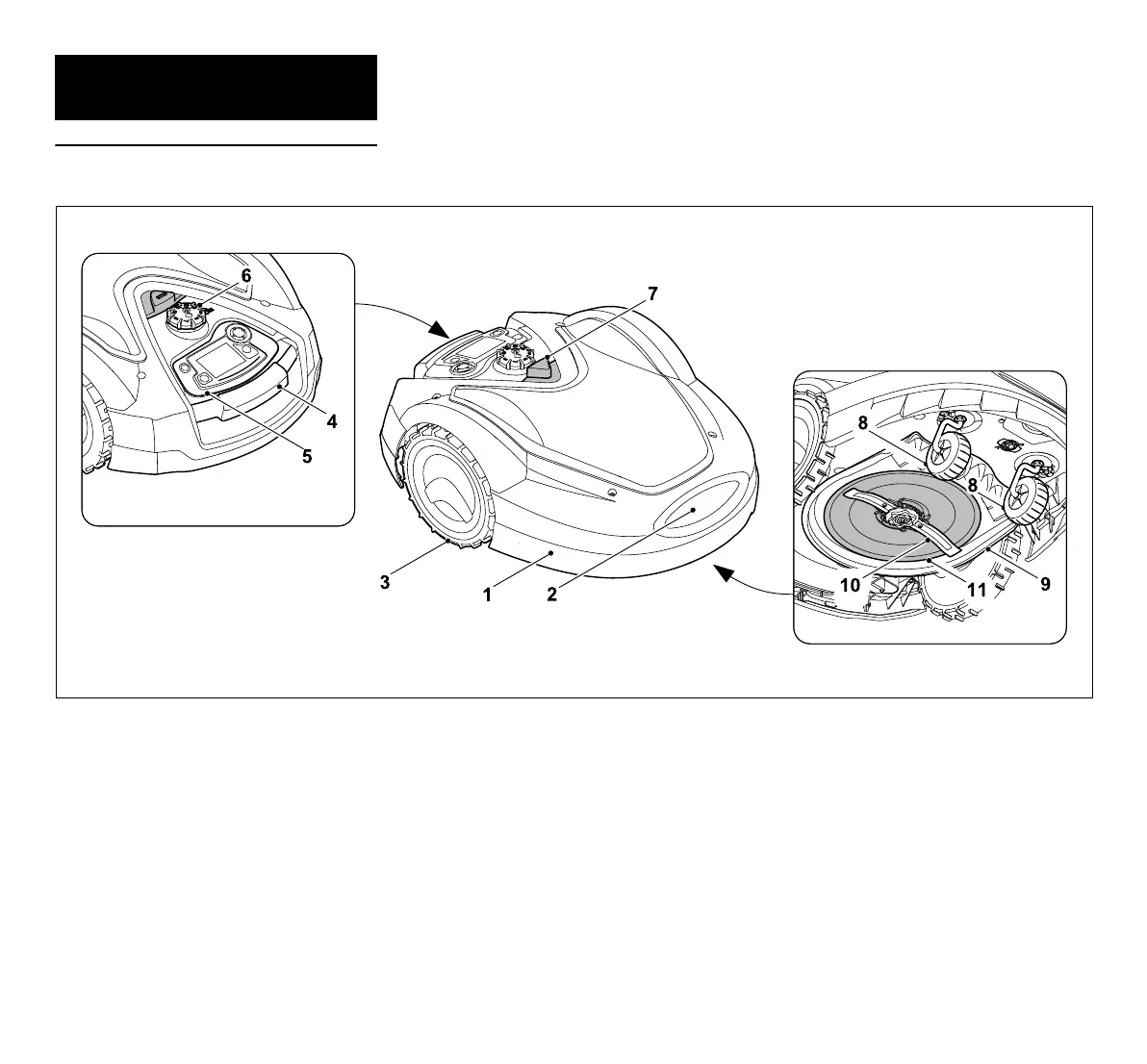

3.1 Robotic mower
3. Machine overview
1
Movably mounted hood (
Ö
5.5),
(
Ö
5.6)
2
Charging contacts:
Connecting contacts to the docking
station
3
Rear wheel
4
Carrying handle (
Ö
21.1)
5
Removable control panel (
Ö
3.3),
(
Ö
15.2)
6
Rotary handle for cutting height
adjustment (
Ö
9.5)
7
STOP button (
Ö
5.1)
8
Front wheel
9
Mowing deck
10
Dual-ground mowing blade (
Ö
16.4)
11
Carrier plate
7
9
Table of Contents
Table of Contents
5
Notes on the Instruction Manual
6
General
6
Country-Specific Versions
6
Instructions for Reading the Instruction Manual
7
Machine Overview
8
Robotic Mower
8
Docking Station
9
Control Panel
10
How the Robotic Mower Works
11
Operating Principle
11
Manual Mowing
12
Safety Devices
12
STOP Button
12
Disabling Device
12
Protective Covers
13
Two-Hand Operation
13
Impact Sensor
13
Lifting Protection
13
Tilt Sensor
13
Display Illumination
13
PIN Request
13
GPS Protection
13
For Your Safety
13
General
13
Clothing and Equipment
15
Warning - Dangers Caused by Electrical Current
15
Battery
15
Transporting the Machine
16
Before Initial Operation
16
Programming
17
During Operation
17
Maintenance and Repairs
19
Storage for Prolonged Periods Without Operation
19
Disposal
20
Description of Symbols
20
Standard Equipment
20
Initial Installation
21
Notes on the Docking Station
25
Docking Station Connections
27
Connecting the Power Cable to the Docking Station
28
Installation Material
29
Adjusting the Cutting Height
29
Notes on Initial Installation
29
Setting the Language, Date and Time
30
Installing the Docking Station
30
Routing the Perimeter Wire
31
Linking the Robotic Mower and Docking Station
35
Connecting the Perimeter Wire
36
Checking Installation
39
Programming the Robotic Mower
40
Completing Initial Installation
41
First Mowing Operation after Initial Installation
42
Imow® App
42
Menu
43
Operating Instructions
43
Status Screen
44
Information Area
45
Main Menu
46
Start
46
Drive Home
46
Mowing Plan
46
More
48
Settings
48
Imow® - Machine Settings
48
Setting the Rain Sensor
49
Setting the Status Screen
49
Installation
49
Setting Starting Points
50
Safety
51
Service
52
Information
52
Perimeter Wire
54
Planning Routing of the Perimeter Wire
54
Making a Sketch of the Mowing Area
55
Routing the Perimeter Wire
55
Connecting the Perimeter Wire
55
Wire Clearances - Use Imow® Ruler
56
Acute Corners
57
Confined Areas
57
Installing Linking Sections
57
Go Areas
57
Secondary Areas
58
Corridors
59
Guide Loops for Offset Drive Home
60
Accurate Mowing Along Edges
61
Sloping Terrain Along the Perimeter Wire
62
Installing Reserve Wire
62
Using Wire Connectors
62
Docking Station
63
Docking Station Controls
63
Notes on Mowing
64
General
64
Mulching
64
Active Times
64
Mowing Duration
64
Home Area (RMI 632 C, RMI 632 PC)
64
Manual Mowing
65
Operating the Machine
65
Preparation
65
Removing and Installing the Control Panel
65
Adapting the Programming
66
Automatic Mowing
66
Mowing Independently of Active Times
66
Manual Mowing
67
Docking the Robotic Mower
67
Charging the Battery
68
Maintenance
68
Maintenance Schedule
68
Cleaning the Machine
69
Checking the Mowing Blade Wear Limits
69
Removing and Installing the Mowing Blade
70
Sharpening the Mowing Blade
71
Removing and Installing the Carrier Plate
71
Finding a Wire Break
71
Storage and Winter Break
72
Removing the Docking Station
73
Standard Spare Parts
74
Accessories
74
Minimising Wear and Preventing Damage
74
Environmental Protection
75
Removing the Battery
75
Transport
77
Lifting or Carrying the Machine
77
Securing the Machine (Lashing)
77
Technical Specifications
77
Messages
78
Troubleshooting
85
Service Schedule
89
Handover Confirmation
89
Service Confirmation
89
Installation Examples
90
5
Based on 1 rating
Ask a question
Give review
