Stihl RMI 632 P User Manual

0478 131 8354 D - EN
42
Selection window:
Settings can be changed by pressing the
control pad. The current value is
highlighted in black. The OK button
confirms all the values.
Dialog window:
If changes have to be saved or messages
confirmed, a dialog window appears on the
display. The active button has a black
background.
In the case of selection options, the
relevant button can be activated by
pressing the control pad to the left or right.
The selected option is confirmed and the
higher-level menu called up using the OK
button.

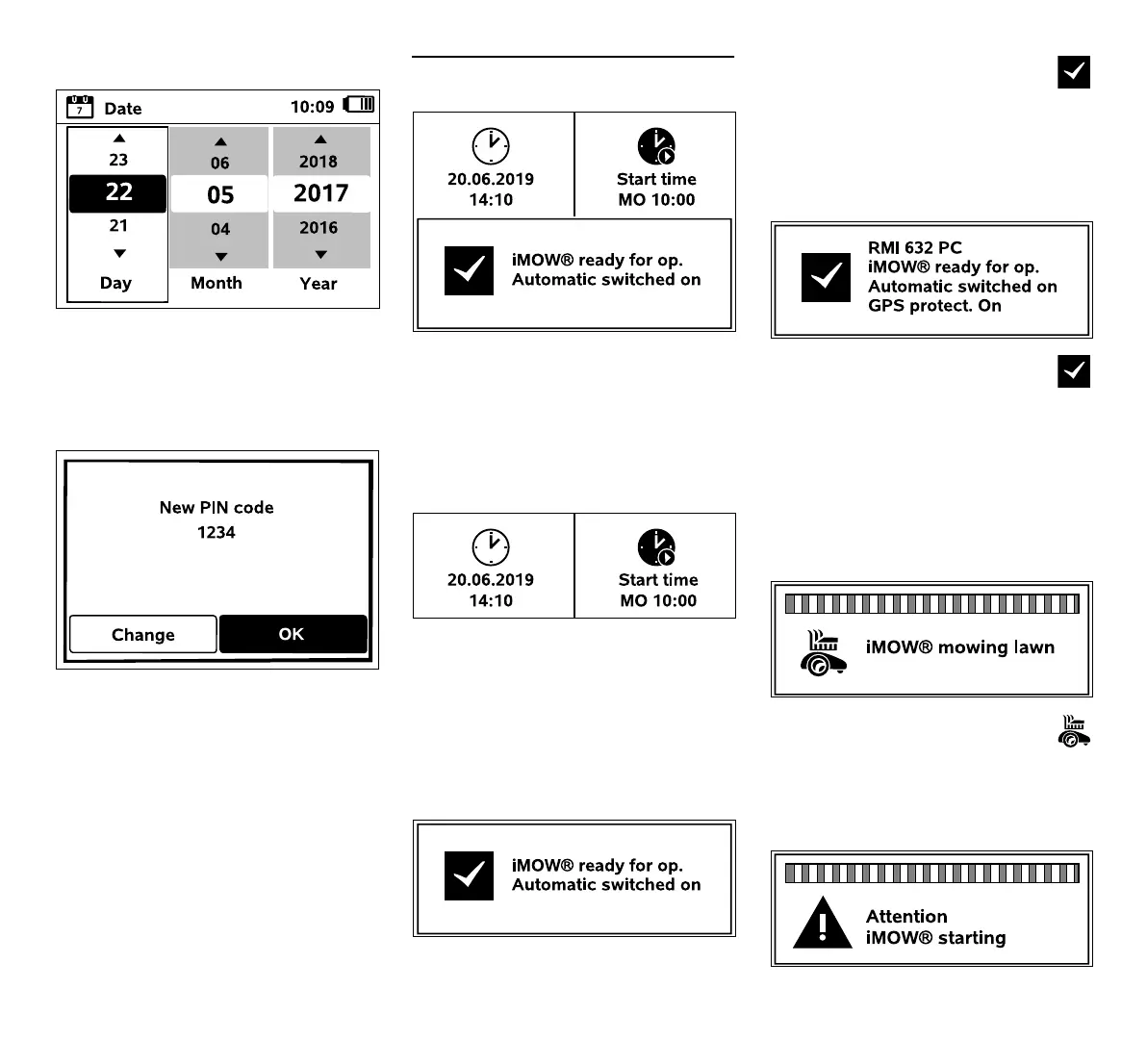

11.2 Status screen
The status screen appears
– when standby mode of the robotic
mower is ended by pressing a button,
– when the Back button is pressed in the
main menu,
– during running operation.
There are two configurable fields in the top
display area. Various information
regarding the robotic mower and the
mowing operations can be displayed here.
(Ö 11.10)
Status information with no running
activity – RMI 632, RMI 632 P:
The text "iMOW® ready for op." is
displayed in the bottom area of the
screen together with the symbol
shown and the automatic mowing status.
(Ö 11.7)
Status information with no running
activity – RMI 632 C, RMI 632 PC:
The name of the robotic mower
(Ö 10.) and the text "iMOW® ready
for op." are displayed in the bottom
area of the screen together with the
symbol shown, the automatic mowing
status (Ö 11.7) and information on GPS
protection (Ö 11.15).
Status information during running
activities – all models:
The text "iMOW® mowing lawn" and
a corresponding symbol are shown
on the display during a running
mowing operation. The text and symbol
are adapted to the respective active
operation.
