Sub-Zero 601R/F User Manual

Electronic Control System
600 Series
(Prior to #1810000)
3-3
#3756270 - Revision B - January, 2006
BASIC ELECTRONIC CONTROL SYSTEM
Input operations for the electronic control system are performed at the control panel, with monitoring, regulating and
controlling functions taking place at the control board. Temperatures and possible problems with the unit are illumi-
nated on the LCD. This page illustrates a basic electronic control system (See Figure 3-1).

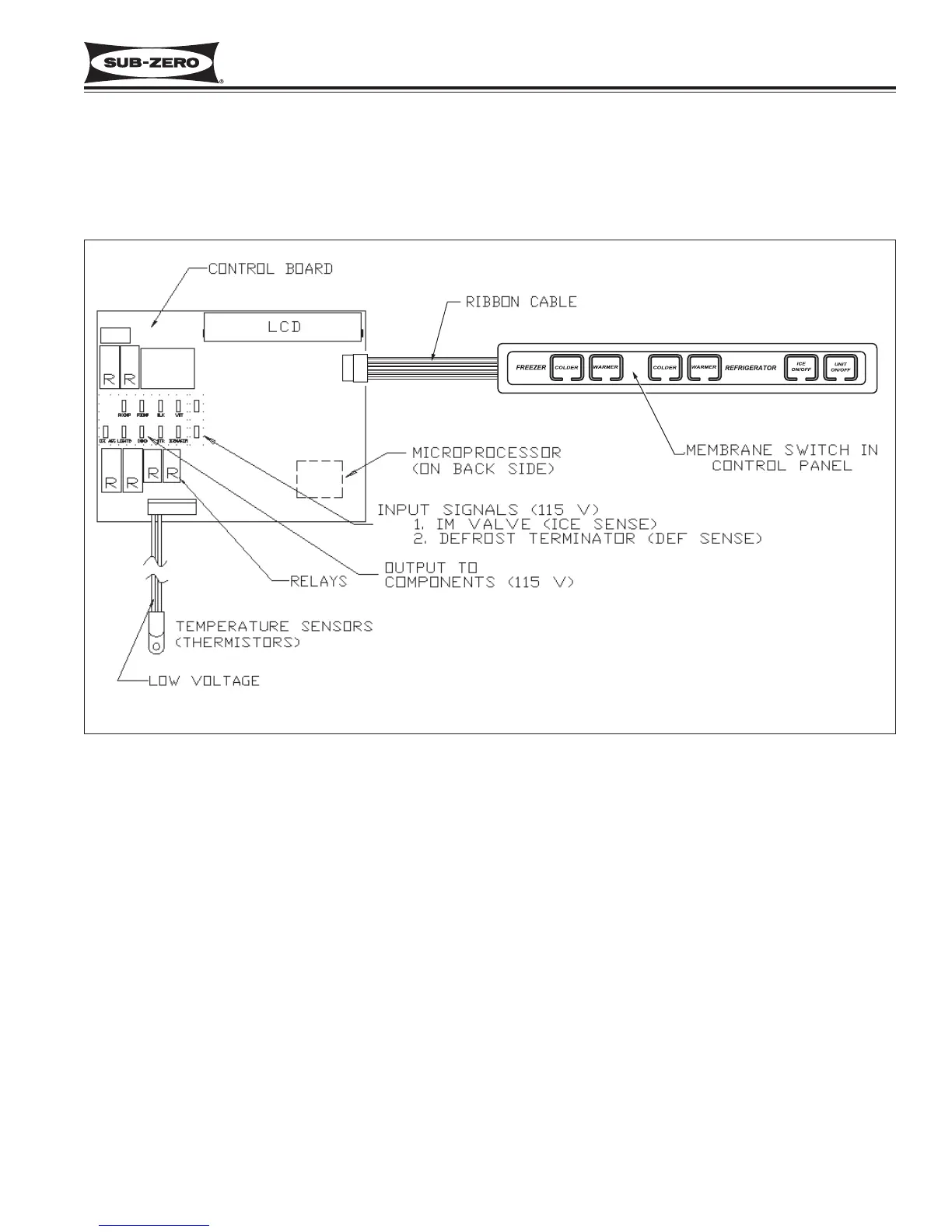

Figure 3-1. Basic Electronic Control System
