Component Access / Removal
600 Series
(Prior to #1810000)
7-14
#3756270 - Revision B - January, 2006

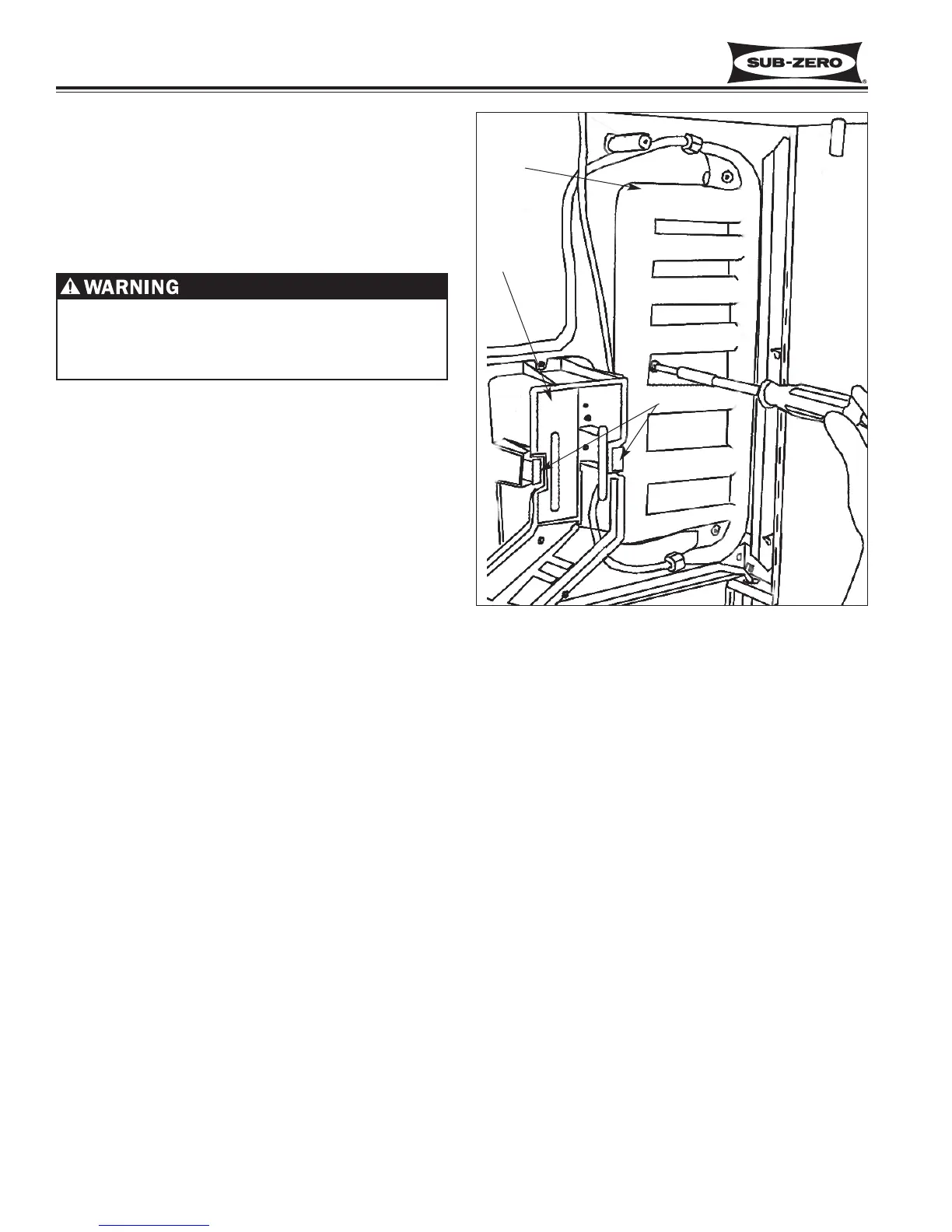

Figure 7-30. Water Tank & Ice Chute Removal
Water Reservoir Tank (Model 690)
To access and remove the water reservoir tank, the
light diffuser, upper front panel and water reservoir tank
cover will need to be removed first. Now disconnect
the compression fittings at the inlet and outlet of the
water reservoir tank. Then remove the mounting
screws and lift out. (See Figure 7-30)
NOTE: After reinstalling a water reservoir tank, the
WATER button at the door dispenser must be
depressed for approximately two minutes to refill the
tank.
Ice Chute Components (Model 690)
To access the ice chute, the light diffuser, upper front
panel and water reservoir tank cover will need to be
removed. The ice chute cover is removed by depress-
ing the tabs at the sides and pulling the cover out and
back. (See Figure 7-30)
NOTE: The ice chute door in the mullion wall is acces-
sible at this point.
To remove the ice chute/water nozzle assembly, discon-
nect the water line from the water nozzle, then extract
the mounting screws and pull the assembly out and
back. (See Figure 7-30)
Water
Reservoir
Tank
Ice Chute
Tabs
Water in reservoir tank will drain from lower inlet
when compression fitting is removed. A container
with a volume of at least 1/2 gallon should be used
to catch the draining water.
