Sub-Zero 601R/F User Manual

Component Access / Removal
600 Series
(Prior to #1810000)
7-7
#3756270 - Revision B - January, 2006

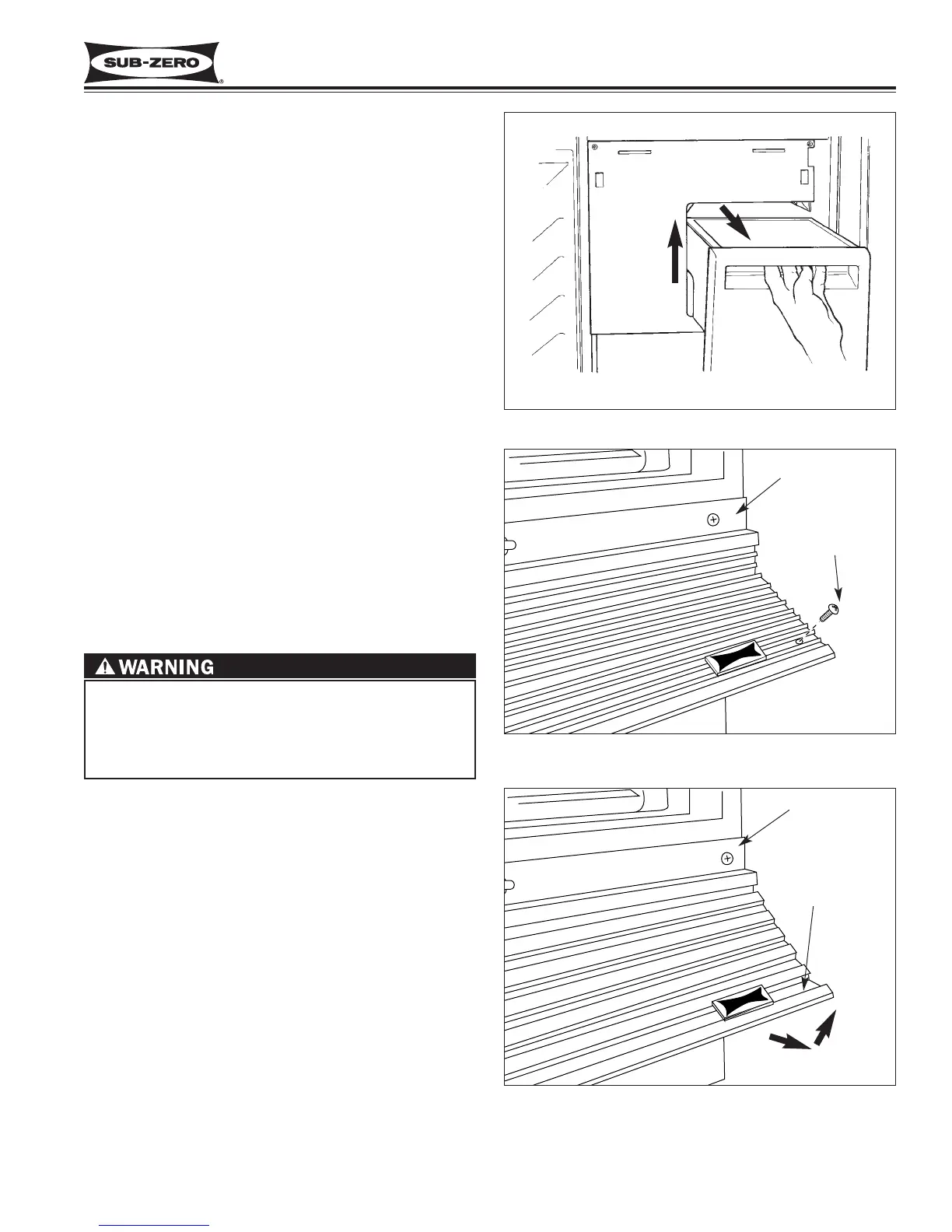

Ice Bucket Assembly (Model 690)
To remove the ice bucket assembly, the juice can rack
must first be removed. Then lift ice bucket assembly up
and pull out. (See Figure 7-13)
NOTE: When reinstalling ice bucket, the drive yoke of
the auger motor must engage ice bucket auger correct-
ly so that ice bucket assembly can be fully installed.
Standard Louvered Grille
(Models 601R/F, 601R/O, 601F/F, 601F/O)
The standard louvered grille on models 601R & 601F
consists of an upper grille section and a lower grille
section. To remove the lower grille section, extract the
screws at the bottom left and right corners. Then, tilt
the bottom of lower grille section out and up to release
it from the upper grille section. (See Figure 7-14)
To remove the upper grille section, open cabinet door
and extract the screws at the top left and right corners.
Pull upper grille section forward slightly and disconnect
fan and light switches electrical leads. (See Figure 7-
14)
Stainless Steel Grille
(Models 601R/S, 601F/S)
The stainless steel grille on models 601R/S & 601F/S
consists of an upper grille section and a lower grille
section. The lower grille section is secured at the bot-
tom by a “catch and strike” retention system. To
remove the lower grille section, grasp bottom of grille
and tilt out and up to release it from the catch and strike
at the bottom. Continue to tilt out and up to release it
from the upper grille section. (See Figure 7-15)
To remove the upper grille section, open cabinet door
and extract the screws at the top left and right corners.
Pull upper grille section forward slightly and disconnect
fan and light switches electrical leads. (See Figure 7-
15)
Figure 7-15. Model 601R, 601F Stainless Steel Grille
Figure 7-14. Model 601R, 601F Standard Louvered
Grille
Upper Grille
Section
Upper Grille
Section
Catch and
strike behind
grille
Screw
Tilt out and up
Figure 7-13. Model 690 Ice Bucket Removal
2
Pull open
1
Lift up
THE UPPER GRILLE SECTION HOLDS THE FAN
AND LIGHT SWITCH. TO AVOID ELECTRICAL
SHOCK, DISCONNECT POWER TO UNIT BEFORE
ATTEMPTING TO REMOVE UPPER GRILLE SEC-
TION.
