Sub-Zero 601R/F User Manual

Electronic Control System
600 Series
(Prior to #1810000)
3-7
#3756270 - Revision B - January, 2006

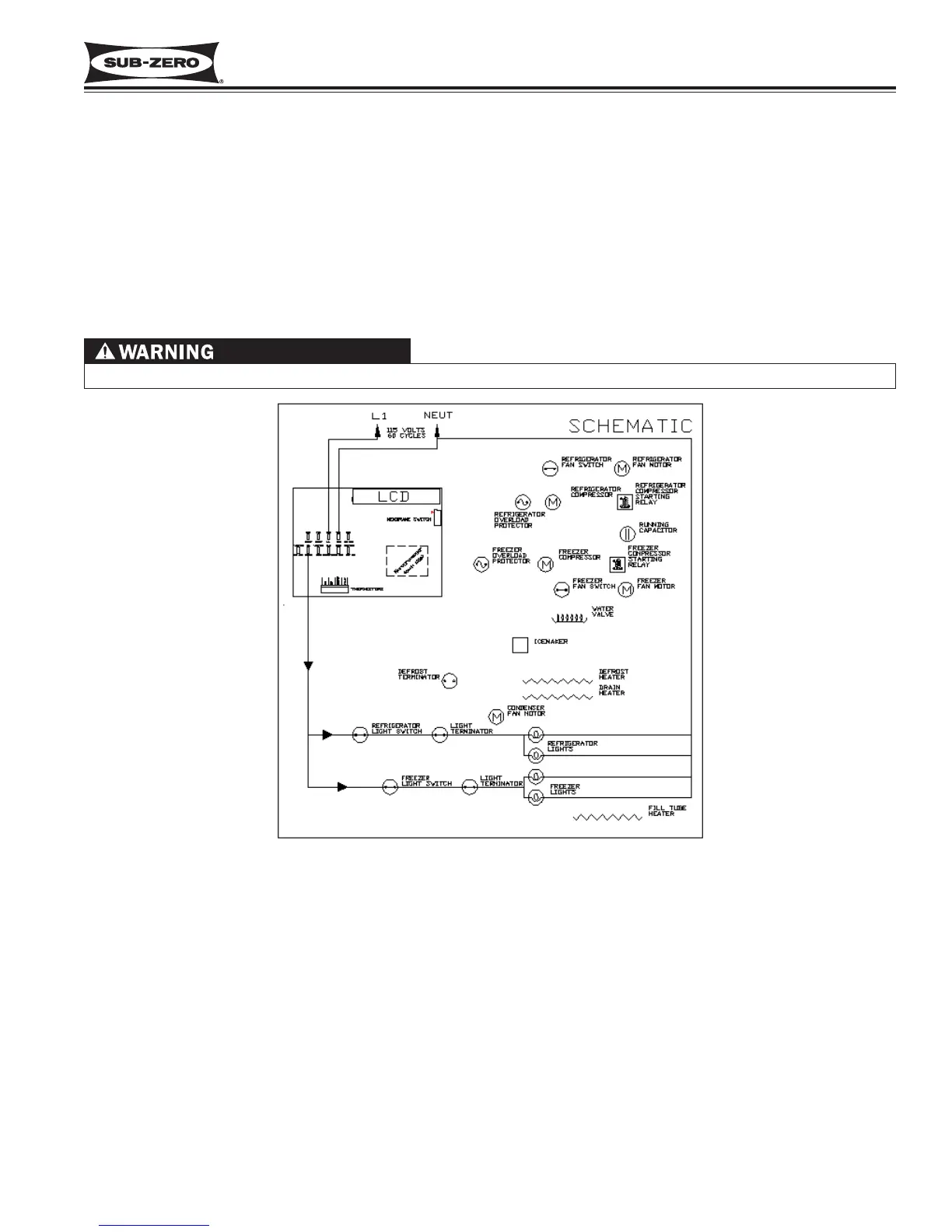

Figure 3-9. Lighting System Signal Trace
When in OFF mode, 115 Volts are still present at the control board.
FUNCTIONS OF ELECTRONIC CONTROL SYSTEM
This section covers the monitoring, regulating and controlling functions of the electronic control system.
NOTE: All electronic control system functions described in this section are normal operation only. Malfunctions will
be covered in later sections.
Supply Power to the Lighting System
115 Volts is supplied to the lighting system through the control board. (See Figure 3-9)
NOTE: Disabling the lighting system (Sabbath Mode) is covered in the UNIQUE INPUT OPERATIONS section.
