2 Installation Quick User Manual
6
4. To protect the inverter from
theft, you can lock it with a
padlock. The padlock is
purchased by the user if
necessary. The hole diameter
is about 8 mm.
5. Remove the waterproof lid
from RS485 terminal and
install the communication
module to the inverter. Refer
to the manual delivered with
the module for details.
2.3 Installing the Energy Meter

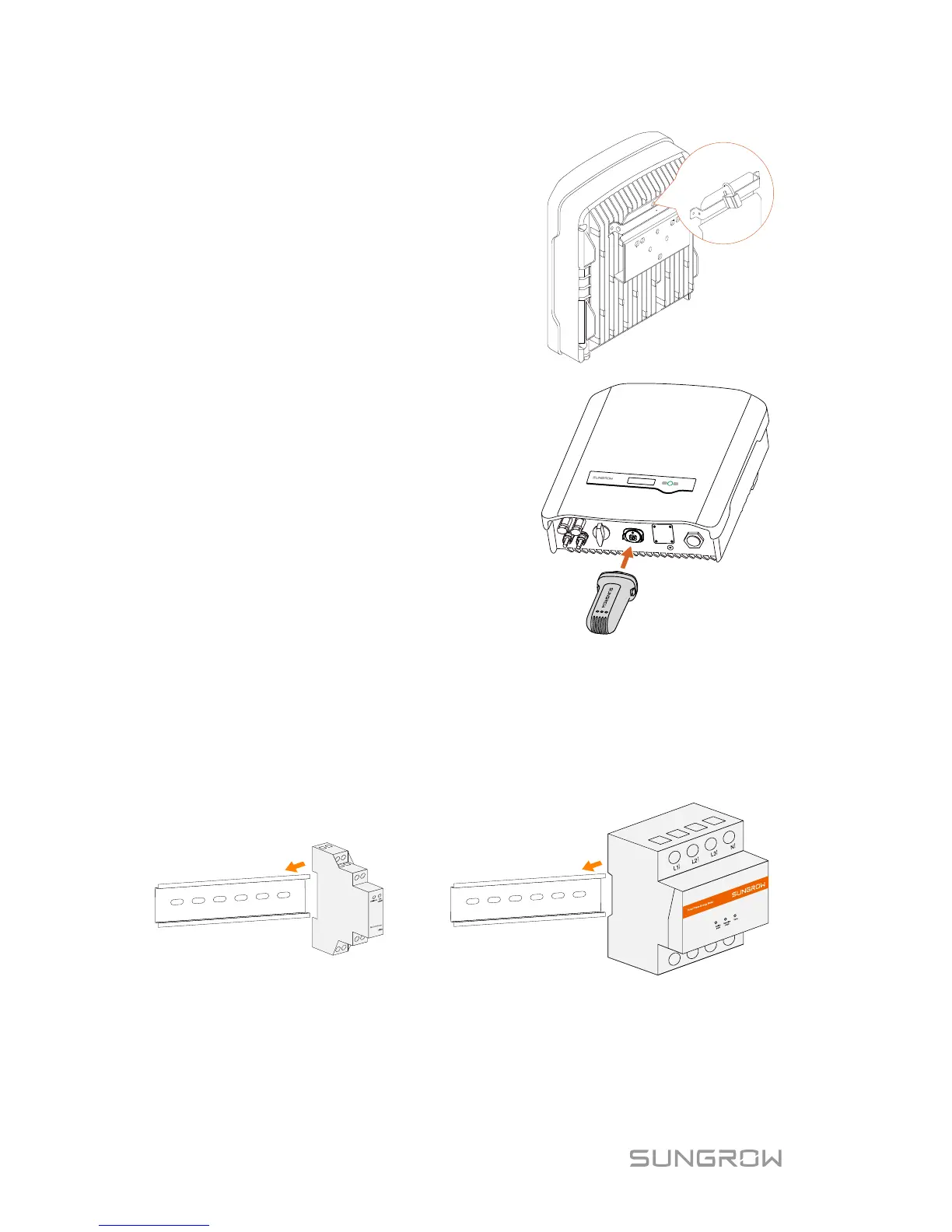

The SUNGROW Energy Meter should be installed between the grid and the
load. It supports a 35 mm DIN-rail installation, as shown in the following figure.
Single-phase Energy Meter
Three-phase Energy Meter
Fig. 2-1 Installing the Meter to the Rail
To Next Page
