Chapter 1: Introduction
Notes:
• See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel con-
nections.
• " " indicates the location of Pin 1.
• Jumpers/components/LED indicators not indicated are used for internal testing only.
• Use only the correct type of onboard CMOS battery as specied by the manufacturer. Do
not install the onboard battery upside down to avoid possible explosion.

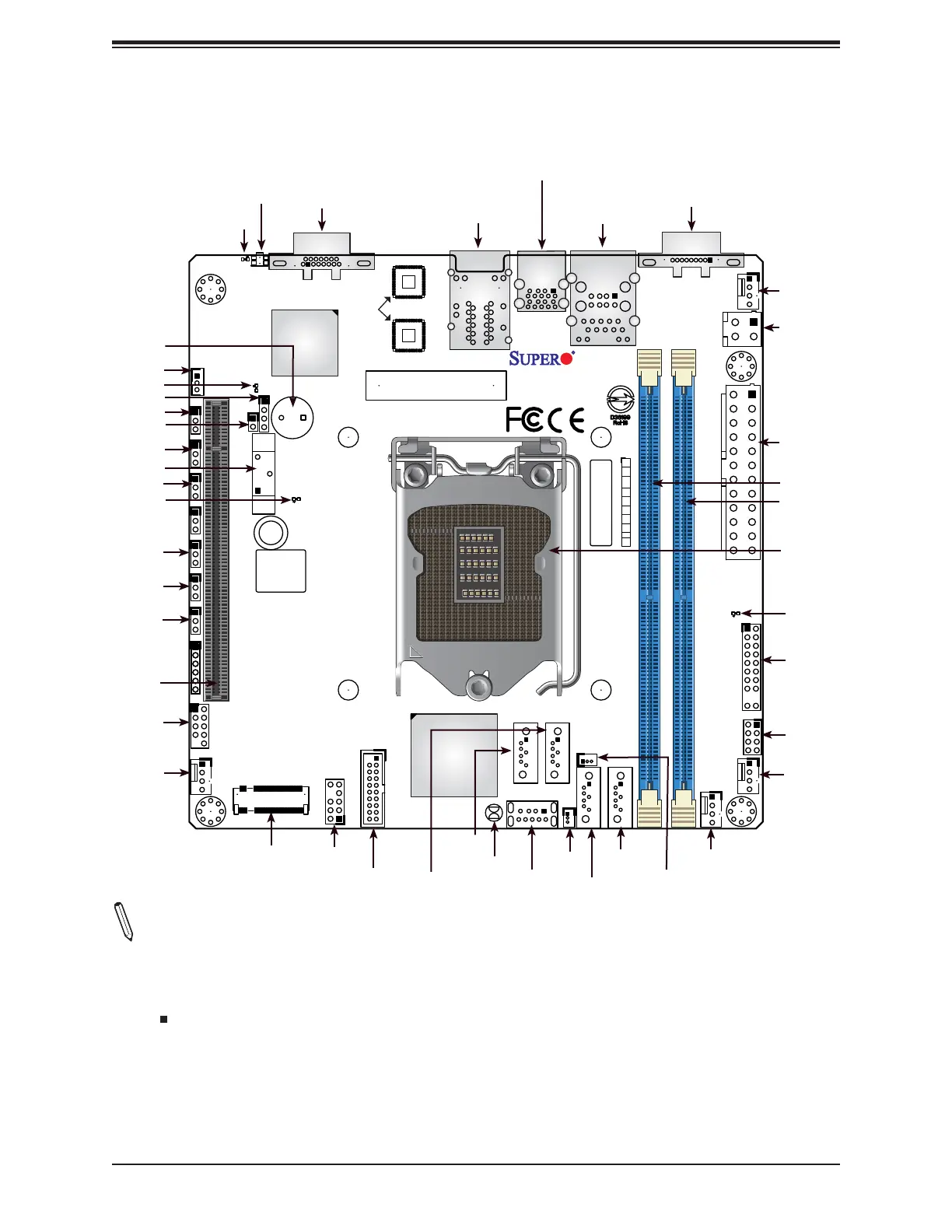

X11SCL-IF
REV:1.01
1
BIOS LICENSE
BAR CODE
+
DESIGNED IN USA
Intel
i210
Intel
C242
ASpeed
AST2500
JPL1
FANA
JLED1
JPME2
JWD1
JPL2
JPG1
JSTBY1
USB2/3
CPU SLOT1 PCI-E 3.0 X16
B1
JL1
LED4
M.2-H
MH5
LED2
JUIDB1
JD1
LED5
SP1
VGA
JTPM1
CPU
USB6/7(3.0)
LAN1/2
USB8(3.0)
JBT1
USB4/5
(3.0)
I-SATA0
JSD2
I-SATA1
JSD1
USB0/1
IPMI LAN
I-SATA2 I-SATA3
X NMI
LED PWRHDD
LED1
NIC
2
NICUID
LED
PS
FAIL
RST
PWR ON
JF1
DIMMB1 DIMMA1
FAN2
FAN1
LED3
JPW1
FAN3
I-SGPIO1
JPW2
JF1
COM1
Quick Reference
COM1
IPMI_LAN
USB0/1
USB4/5 (3.0)
VGA
JUIDB1
LAN1/2
LED4
FAN3
DIMMB1
DIMMA1
JPW1
CPU
JPME2
JL1
JWD1
JPG1
JPL1
SLOT1
JSTBY1
JPL2
JD1
JLED1
B1
LED2
SP1
USB2/3
FANA
M.2-H
JTPM1
USB6/7
(3.0)
JBT1
USB8
(3.0)
I-SATA0
JSD2
I-SATA1
JSD1
I-SATA2
I-SATA3 FAN2
FAN1
I-SGPIO1
JF1
LED3
JPW2
LED5

Supermicro X11SCL-IF Specifications

General

PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
ECC	Yes
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2667 MHz
UEFI version	2.7
Thermal Design Power (TDP)	95 W
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
BIOS type	UEFI
ACPI version	6.0
BIOS memory size	256 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Wi-Fi	No
LAN controller	Intel I210
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Processor number of cores supported	6
Component for	Server
Motherboard chipset	Intel C242
PC health monitoring	FAN, LED, Temperature, Voltage
Motherboard form factor	mini ITX
Number of SATA III connectors	4
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170.2 mm
