Supermicro X11SCL-IF User Manual

26
Super X11SCL-IF User's Manual

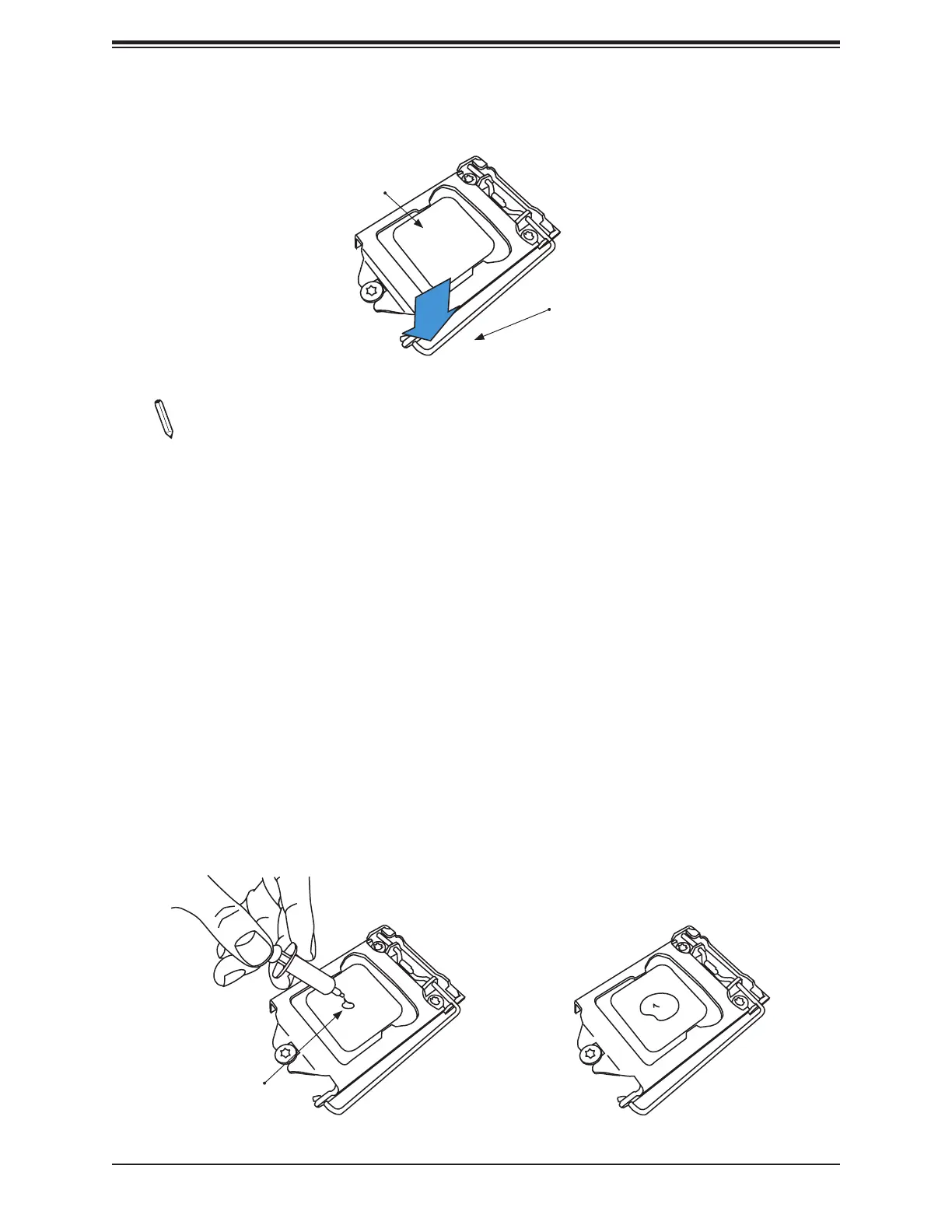

5. Close the load plate, then gently push down the load lever into its locking position.
CPU properly
installed
Load lever locked
into place
Note: You can only install the CPU in one direction. Make sure it is properly inserted
into the socket before closing the load plate. If it doesn't close properly, do not force
it as it may damage your CPU. Instead, open the load plate again and double-check
that the CPU is properly aligned.
Installing an Active CPU Heatsink with Fan
1. Locate the CPU fan header on the motherboard (FAN1: CPU FAN).
2. Position the heatsink so that its fan wires are closest to the CPU fan header and are not
interfering with other components.
3. Inspect the CPU fan wires to make sure they are routed through the bottom of the
heatsink.
4. Remove the thin layer of protective lm from the heatsink. CPU overheating may occur if
the protective lm is not removed from the heatsink.
5. Apply the proper amount of thermal grease on the CPU. If your heatsink came with a
thermal pad, please ignore this step.
Thermal Grease

Supermicro X11SCL-IF Specifications

General

PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
ECC	Yes
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2667 MHz
UEFI version	2.7
Thermal Design Power (TDP)	95 W
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
BIOS type	UEFI
ACPI version	6.0
BIOS memory size	256 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Wi-Fi	No
LAN controller	Intel I210
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Processor number of cores supported	6
Component for	Server
Motherboard chipset	Intel C242
PC health monitoring	FAN, LED, Temperature, Voltage
Motherboard form factor	mini ITX
Number of SATA III connectors	4
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170.2 mm
