Supermicro X11SCL-IF User Manual

28
Super X11SCL-IF User's Manual

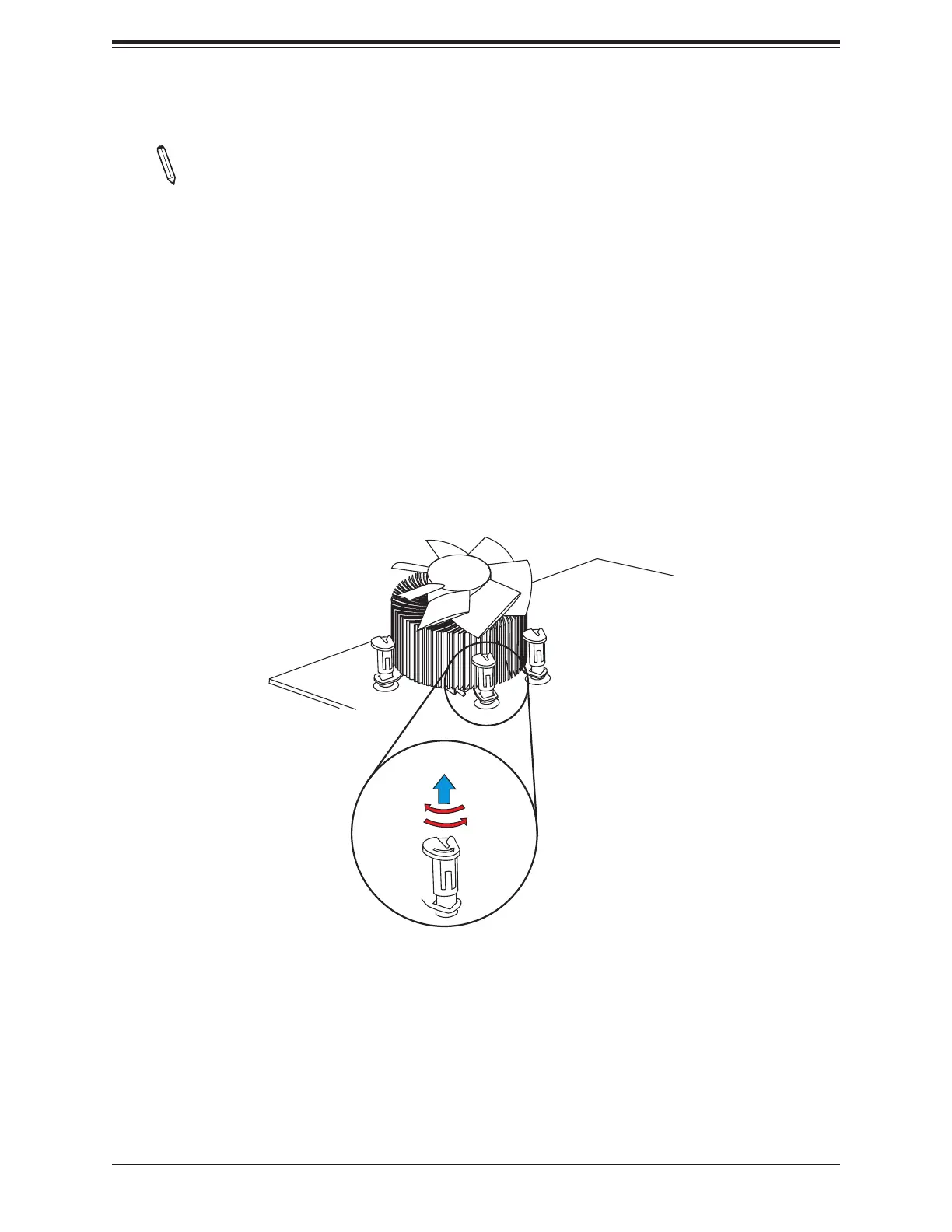

Removing the Heatsink
Note: We do not recommend that the CPU or heatsink be removed. However, if you
do need to remove the heatsink, please follow the instructions below to remove the
heatsink and prevent damage done to the CPU or other components.
1. Unplug the power connector from the power supply.
2. Disconnect the heatsink fan connector from the CPU fan header.
3. Gently press down each fastener cap and turn them 90° counter clockwise, then pull the
fasteners upwards to loosen them.
4. Remove the heatsink from the CPU.
Pull up
Lock
Unlock

Supermicro X11SCL-IF Specifications

General

PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
ECC	Yes
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2667 MHz
UEFI version	2.7
Thermal Design Power (TDP)	95 W
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
BIOS type	UEFI
ACPI version	6.0
BIOS memory size	256 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Wi-Fi	No
LAN controller	Intel I210
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Processor number of cores supported	6
Component for	Server
Motherboard chipset	Intel C242
PC health monitoring	FAN, LED, Temperature, Voltage
Motherboard form factor	mini ITX
Number of SATA III connectors	4
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170.2 mm
