Supermicro X11SCL-IF User Manual

51
Chapter 2: Installation
Connector
Pins
Jumper
Setting
3 2 1
3 2 1
CMOS Clear
JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper
consists of contact pads to prevent accidentally clearing the contents of CMOS.
To Clear CMOS
1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four
seconds.
5. Remove the screwdriver (or shorting device).
6. Replace the cover, reconnect the power cord(s), and power on the system.
Note: Clearing CMOS will also clear all passwords.
Do not use the PW_ON connector to clear CMOS.
JBT1 contact pads

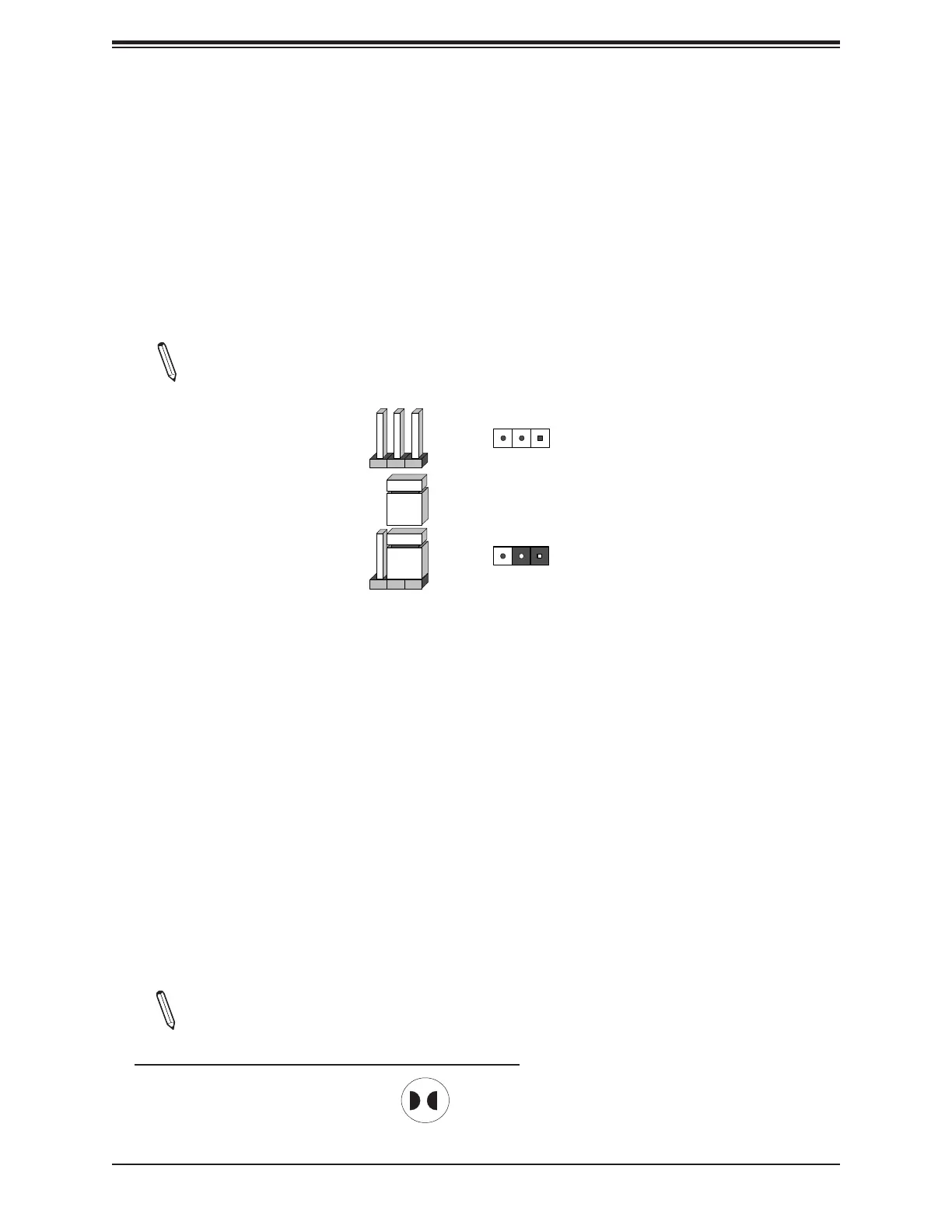

2.8 Jumper Settings
How Jumpers Work
To modify the operation of the motherboard, jumpers can be used to choose between optional
settings. Jumpers create shorts between two pins to change the function of the connector.
Pin 1 is identied with a square solder pad on the printed circuit board. See the diagram
below for an example of jumping pins 1 and 2. Refer to the motherboard layout page for
jumper locations.
Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the
jumper is off the pins.

Supermicro X11SCL-IF Specifications

General

PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
ECC	Yes
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2667 MHz
UEFI version	2.7
Thermal Design Power (TDP)	95 W
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
BIOS type	UEFI
ACPI version	6.0
BIOS memory size	256 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Wi-Fi	No
LAN controller	Intel I210
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Processor number of cores supported	6
Component for	Server
Motherboard chipset	Intel C242
PC health monitoring	FAN, LED, Temperature, Voltage
Motherboard form factor	mini ITX
Number of SATA III connectors	4
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170.2 mm
