4.3AdvancedSetupCongurations

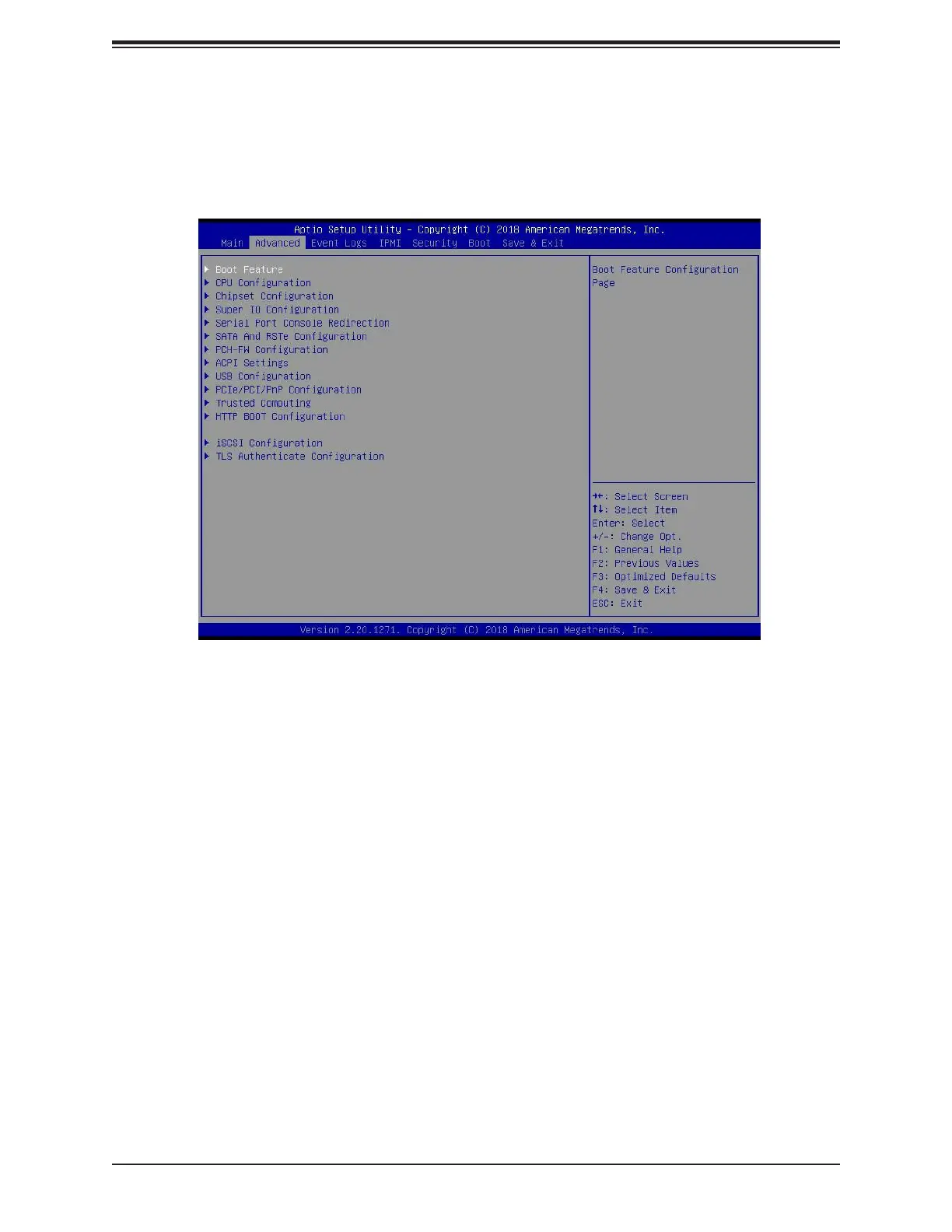

Use the arrow keys to select the Advanced menu and press <Enter> to access the submenu
features:
Warning: Take caution when changing the Advanced settings. An incorrect value, a very high
DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When
this occurs, revert to default manufacturer settings.
Boot Feature
Fast Boot
Enable this feature to reduce the time the computer takes to boot up. The computer will boot
with a minimal set of required devices. This feature does not have an effect on BBS boot
options in the Boot tab. The options are Disabled and Enabled.
Quiet Boot
Use this feature to select the screen display between the POST messages and the OEM logo
upon bootup. Select Disabled to display the POST messages. Select Enabled to display the
OEM logo instead of the normal POST messages. The options are Disabled and Enabled.
Bootup NumLock State
Use this feature to set the Power-on state for the <Numlock> key. The options are On and Off.

Supermicro X11SCL-IF Specifications

General

PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
ECC	Yes
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2667 MHz
UEFI version	2.7
Thermal Design Power (TDP)	95 W
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
BIOS type	UEFI
ACPI version	6.0
BIOS memory size	256 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Wi-Fi	No
LAN controller	Intel I210
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Processor number of cores supported	6
Component for	Server
Motherboard chipset	Intel C242
PC health monitoring	FAN, LED, Temperature, Voltage
Motherboard form factor	mini ITX
Number of SATA III connectors	4
Harmonized System (HS) code	84733020
