Supermicro X11SCL-IF User Manual

54
Super X11SCL-IF User's Manual

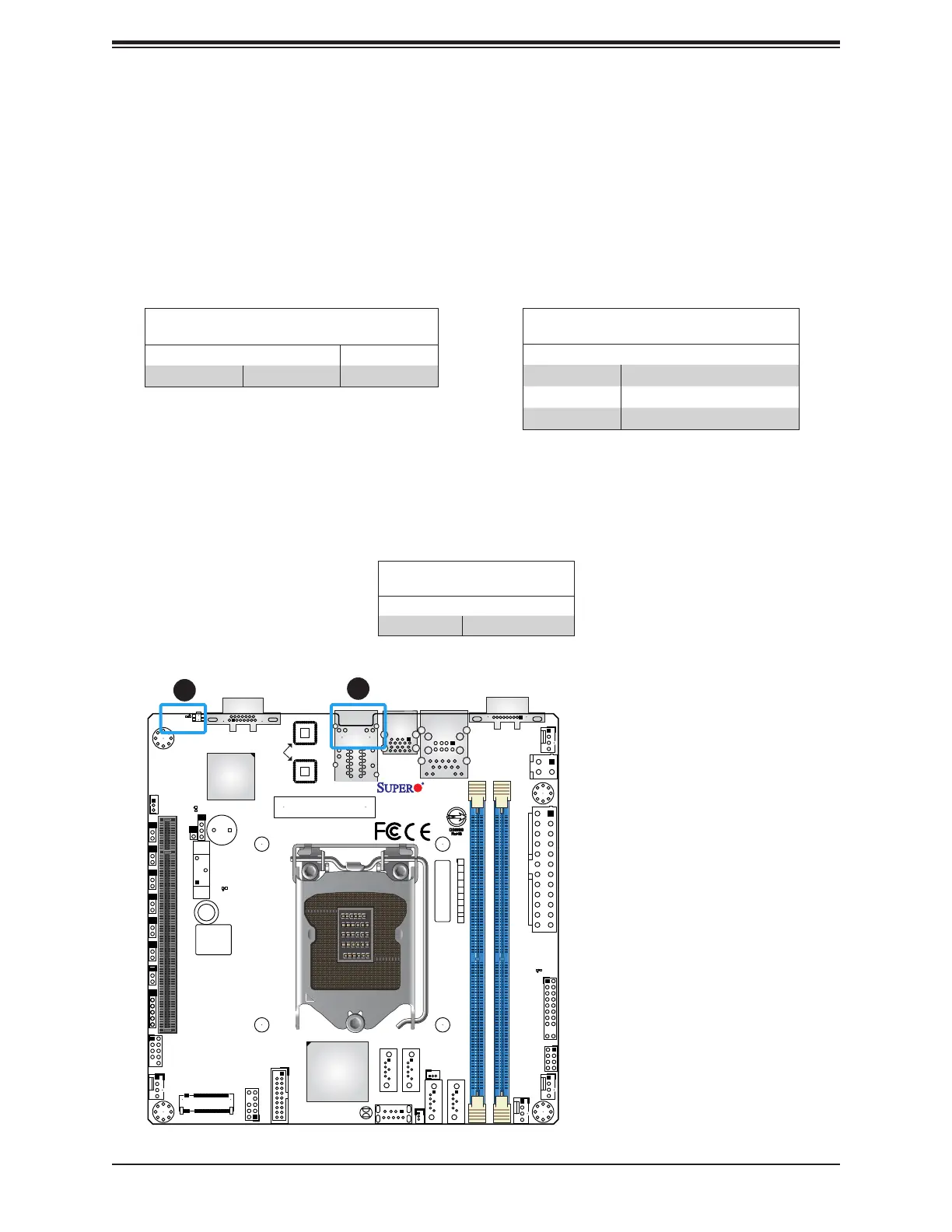

2.9 LED Indicators
UID LED
LED Indicator
LED Color Denition
Blue: On Unit Identied
Unit ID LED
A rear UID LED indicator (LED4) is located near the UID switch on the back I/O panel. This
UID indicator provides easy identication of a system unit that may need service.
LAN LEDs
Two LAN ports (LAN 1/2) are located on the back I/O panel of the motherboard. Each Ethernet
LAN port has two LEDs. The green LED indicates activity, while the other Link LED may be
green, amber, or off to indicate the speed of the connection. Refer to the tables below for
more information.
LAN Activity LED (Right)
LED State
Color Status Denition
Green Flashing Active
LAN Link LED (Left)
LED State
LED Color Denition
Off No Connection/10 Mbps
Amber 1 Gbps
Green 100 Mbps
X11SCL-IF
REV:1.01
1
BIOS LICENSE
BAR CODE
+
DESIGNED IN USA
Intel
i210
Intel
C242
ASpeed
AST2500
JPL1
FANA
JLED1
JPME2
JWD1
JPL2
JPG1
JSTBY1
USB2/3
CPU SLOT1 PCI-E 3.0 X16
B1
JL1
LED4
M.2-H
MH5
LED2
JUIDB1
JD1
LED5
SP1
VGA
JTPM1
CPU
USB6/7(3.0)
LAN1/2
USB8(3.0)
JBT1
USB4/5
(3.0)
I-SATA0
JSD2
I-SATA1
JSD1
USB0/1
IPMI LAN
I-SATA2 I-SATA3
X NMI
LED PWRHDD
LED1
NIC
2
NICUID
LED
PS
FAIL
RST
PWR ON
JF1
DIMMB1 DIMMA1
FAN2
FAN1
LED3
JPW1
FAN3
I-SGPIO1
JPW2
JF1
COM1
1
2
1. LAN1/2 LED
2. UID LED

Supermicro X11SCL-IF Specifications

General

PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
ECC	Yes
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2667 MHz
UEFI version	2.7
Thermal Design Power (TDP)	95 W
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
BIOS type	UEFI
ACPI version	6.0
BIOS memory size	256 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Wi-Fi	No
LAN controller	Intel I210
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Processor number of cores supported	6
Component for	Server
Motherboard chipset	Intel C242
PC health monitoring	FAN, LED, Temperature, Voltage
Motherboard form factor	mini ITX
Number of SATA III connectors	4
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170.2 mm
