Super X11SCL-IF User's Manual
2.3 Processor and Heatsink Installation
Warning: When handling the processor package, avoid placing direct pressure on the LGA lands
(gold contacts) of the CPU or CPU socket. Improper installation or socket misalignment can
cause serious damage to the CPU or motherboard, which may result in RMA repairs. Please
read and follow all instructions thoroughly before installing your CPU and heatsink.
Important:
• Always connect the power cord last, and unplug it before adding, removing, or changing
any hardware components. You must install the processor into the CPU socket before you
install the heatsink.
• If you buy a CPU separately, make sure that you use an Intel-certied multi-directional
heatsink only.
• Install the motherboard into the chassis before you install the CPU heatsink.
• When receiving a motherboard without a pre-intstalled processor, check that a plastic
protective cover is on the CPU socket and none of the socket pins are bent. If they are,
contact your retailer.
• Refer to the Supermicro website for updates on CPU support.

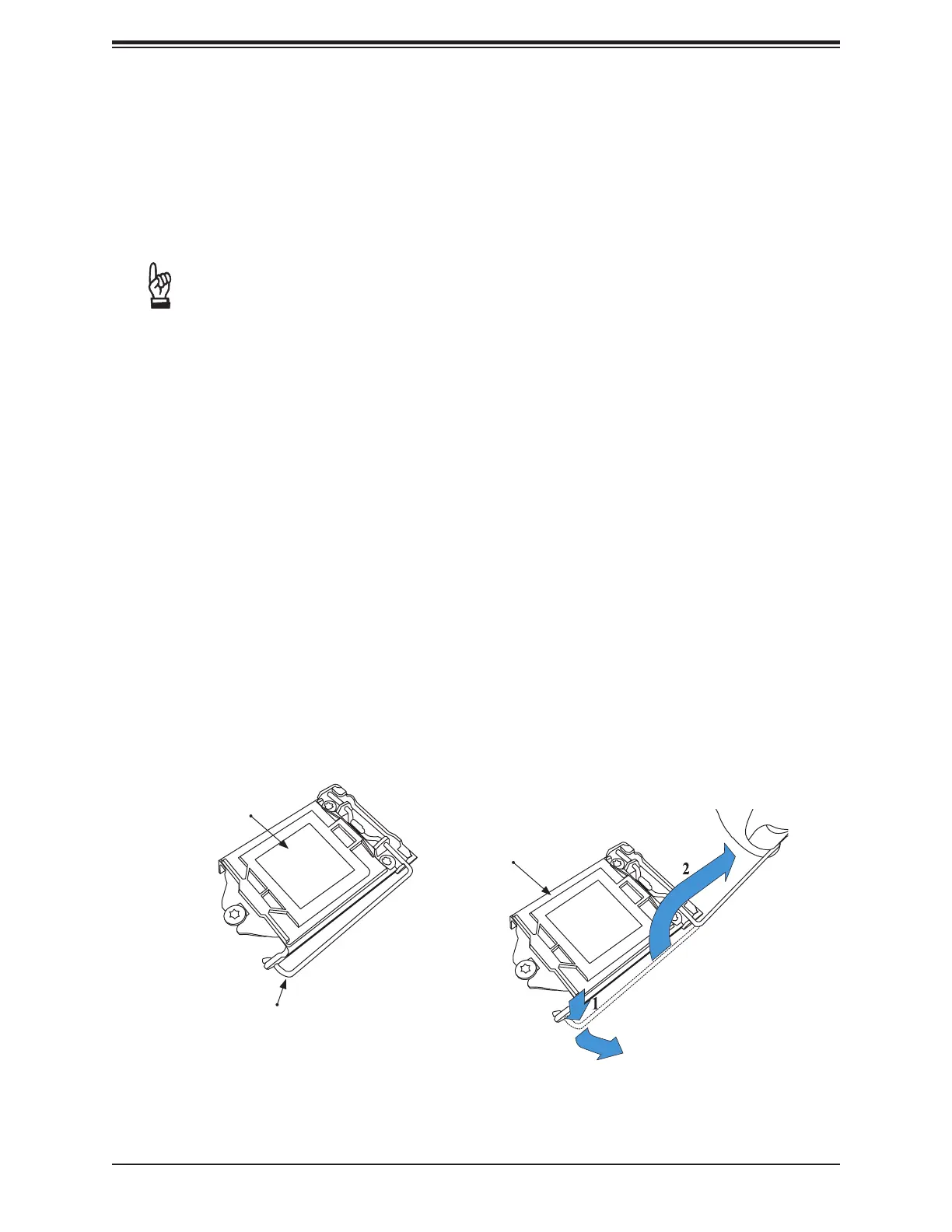

Installing the LGA 1151 Processor
1. Press the load lever down to release the load plate from its locking position.
Load Lever
Plastic Protective
Cover
Load Plate

Supermicro X11SCL-IF Specifications

General

PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
ECC	Yes
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2667 MHz
UEFI version	2.7
Thermal Design Power (TDP)	95 W
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
BIOS type	UEFI
ACPI version	6.0
BIOS memory size	256 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Wi-Fi	No
LAN controller	Intel I210
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Processor number of cores supported	6
Component for	Server
Motherboard chipset	Intel C242
PC health monitoring	FAN, LED, Temperature, Voltage
Motherboard form factor	mini ITX
Number of SATA III connectors	4
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170.2 mm
