Supermicro X11SSH-F User Manual

Appendix B: Software Installation
111
Note 1: Click the icons showing a hand writing on paper to view the readme les for
each item. Click the computer icons to the right of these items to install each item
(from top to the bottom) one at a time. After installing each item, you must reboot the
system before moving on to the next item on the list. The bottom icon with a CD on it
allows you to view the entire contents.
Note 2: When making a storage driver diskette by booting into a driver CD, please
set the SATA conguration to Compatible Mode, and congure the SATA as IDE in
the BIOS setup. After making the driver diskette, be sure to change the SATA settings
back to your original settings.

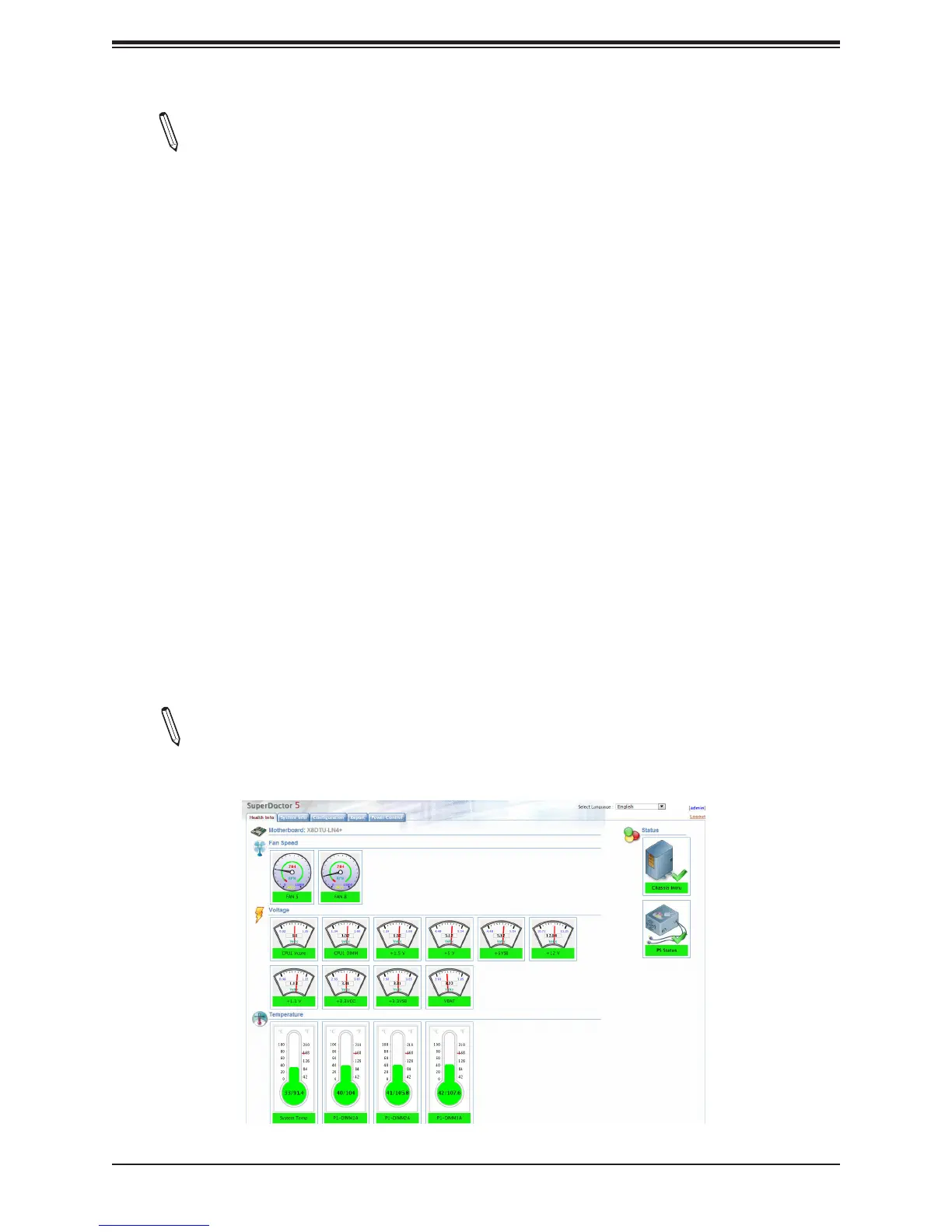

Figure B-2. SuperDoctor 5 Interface Display Screen (Health Information)
B.2 SuperDoctor
®
5
The Supermicro SuperDoctor 5 is a hardware monitoring program that functions in a
command-line or web-based interface in Windows and Linux operating systems. The program
monitors system health information, such as CPU temperature, system voltages, system
power consumption, and fan speed, and provides alerts via email or the Simple Network
Management Protocol (SNMP).
SuperDoctor 5 comes in local and remote management versions and can be used with
Nagios to maximize your system monitoring needs. With the SuperDoctor 5 Management
Server (SSM Server), you can remotely control the power status and reset chassis intrusion
for multiple systems with SuperDoctor 5 or IPMI. SD5 Management Server monitors HTTP,
FTP, and SMTP services to optimize the efciency of your operation.
Note: The default Username and Password for SuperDoctor 5 is admin / admin.

Supermicro X11SSH-F Specifications

General

IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Maximum UDIMM memory	64 GB
Number of DIMM slots	4
Supported DIMM module capacities	4GB, 8GB, 16GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	1600, 1866, 2133 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	16 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card model	Aspeed AST2400
Processor socket	LGA 1151 (Socket H4)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Processor thermal power (max)	80 W
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	8
Trusted Platform Module (TPM) version	1.2
Motherboard chipset	Intel® C236
Motherboard form factor	micro ATX

Weight and Dimensions

Width	224 mm
