Supermicro X11SSH-F User Manual

X11SSH-F/-LN4F User Manual
120
Appendix E
Dual Boot Block
E.1 Introduction
This motherboard supports the Dual Boot Block feature, which is the last-ditch mechanism
to recover the BIOS boot block. This section provides an introduction to the feature.
BIOS Boot Block
A BIOS boot block is the minimum BIOS loader required to enable necessary hardware
components for the BIOS crisis recovery ash that will update the main BIOS block. An on-

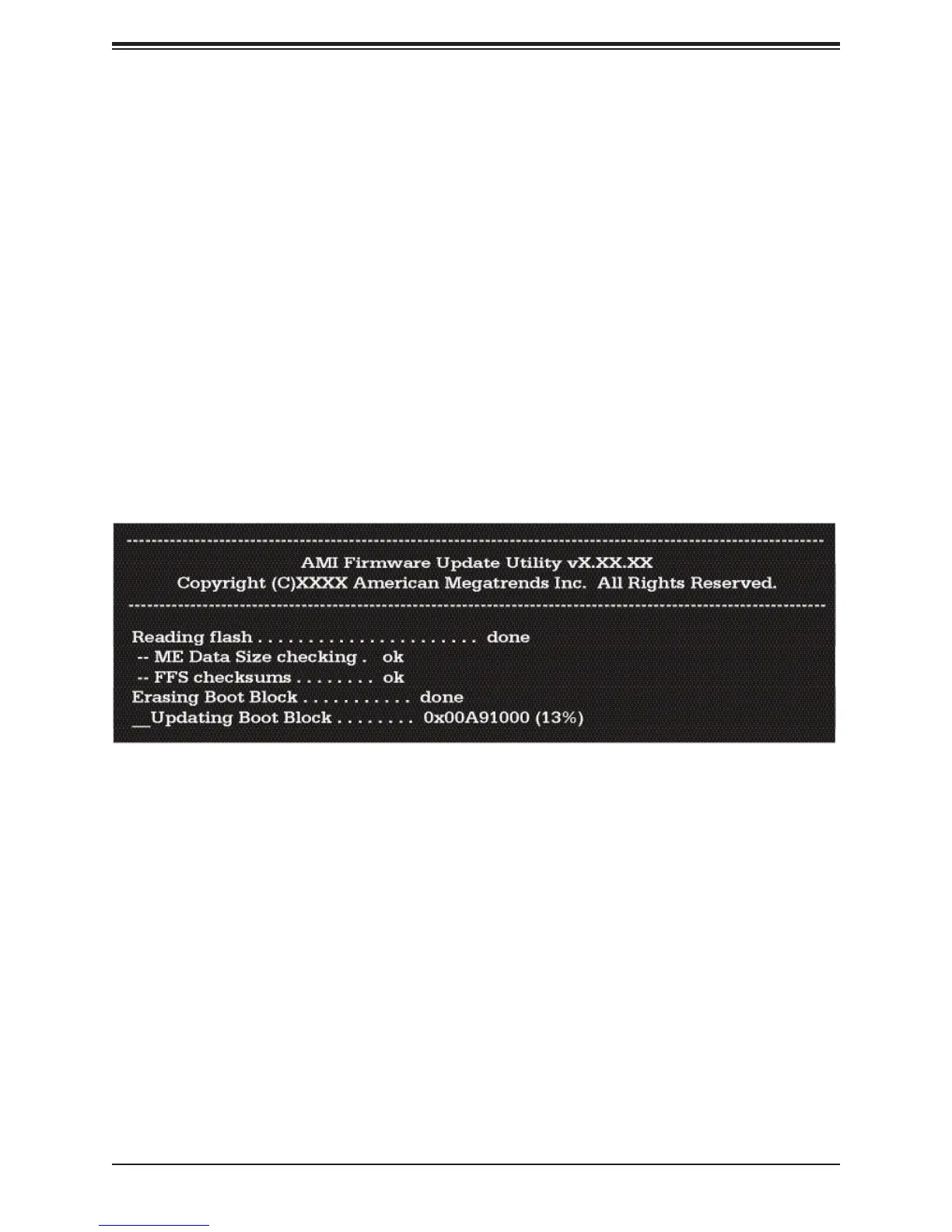

call BIOS boot-block corruption may occur due to a software tool issue (see image below)
or an unexpected power outage during BIOS updates.
BIOS Boot Block Corruption Occurrence
When a BIOS boot block is corrupted due to an unexpected power outage or a software tool
malfunctioning during BIOS updates, you can still reboot the system by closing pins 2 and 3
using a cap on jumper JBR1. When JBR1 is set to pins 2 and 3, the system will boot from a
backup boot block pre-loaded in the BIOS by the manufacturer.

Supermicro X11SSH-F Specifications

General

IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Maximum UDIMM memory	64 GB
Number of DIMM slots	4
Supported DIMM module capacities	4GB, 8GB, 16GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	1600, 1866, 2133 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	16 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card model	Aspeed AST2400
Processor socket	LGA 1151 (Socket H4)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Processor thermal power (max)	80 W
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	8
Trusted Platform Module (TPM) version	1.2
Motherboard chipset	Intel® C236
Motherboard form factor	micro ATX

Weight and Dimensions

Width	224 mm
