Supermicro X11SSH-F User Manual

35
Chapter 2: Installation
2.5 Rear I/O Ports

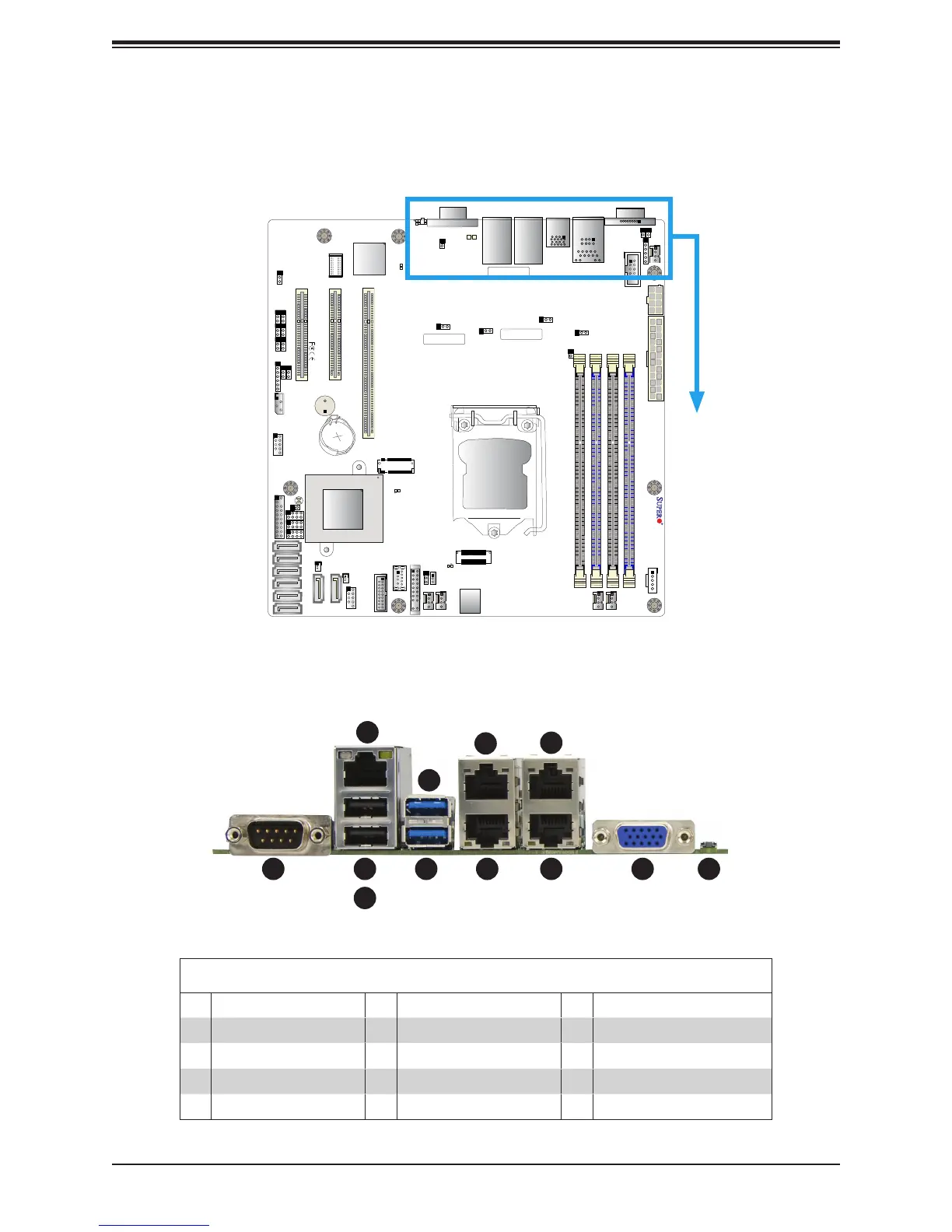

See Figure 2-2 below for the locations and descriptions of the various I/O ports on the rear
of the motherboard.
Figure 2-2. I/O Port Locations and Denitions
Rear I/O Ports
# Description # Description # Description
1. COM1 Port 5 USB7 (3.0) 9 LAN3 (-LN4F only)
2. IPMI LAN 6 USB6 (3.0) 10 LAN4 (-LN4F only)
3 USB1 7 LAN1 11 VGA
4 USB0 8 LAN2 12 UID Switch
1 876
4
3
2
J7 J8
FAN4
JPWR2
JPWR1
JPL1
JPL3
I-SATA3
I-SATA2
JSD2
JSD1
JL1
LAN 1/3
LAN 2/4
USB 6/7
(3.0)
COM 1
JOH1
JUIDB1
DIMMB2
DIMMB1 DIMMA2
DIMMA1
J23
SP1
USB 2/3
JI2C2
JI2C1
JPB1
JPME2
JPG1
BAR CODE
MAC CODE
IPMI CODE
I-SGPIO2
I-SGPIO1
Intel PCH
USB 0/1
IPMI_LAN
VGA
LED BMC
COM2
JPL2
JPL4
JPI2C1
FAN1
FAN2
LED PWR
JSTBY1
JWD1
FAN3
FANA
JF1
USB 8/9
(3.0)
USB 10
(3.0)
USB 4/5
JTPM1
JBT1
JIPMB1
JD1
JBR1
PCH SLOT4 PCI-E 3.0 x4in x8
CPU SLOT5 PCI-E 3.0 x8
CPU SLOT6 PCI-E 3.0 x8in x16
BIOS
LICENSE
BMC
LE1
I-SATA7
I-SATA6
I-SATA5
I-SATA4
I-SATA1 I-SATA0
LE3
X11SSH-F/-LN4F
REV:1.01 Designed in the USA
JVRM2
BT1
CPU
5
9
10
11
12

Supermicro X11SSH-F Specifications

General

IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Maximum UDIMM memory	64 GB
Number of DIMM slots	4
Supported DIMM module capacities	4GB, 8GB, 16GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	1600, 1866, 2133 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	16 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card model	Aspeed AST2400
Processor socket	LGA 1151 (Socket H4)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Processor thermal power (max)	80 W
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	8
Trusted Platform Module (TPM) version	1.2
Motherboard chipset	Intel® C236
Motherboard form factor	micro ATX

Weight and Dimensions

Width	224 mm
