Supermicro X11SSH-F User Manual

23
Chapter 2: Installation

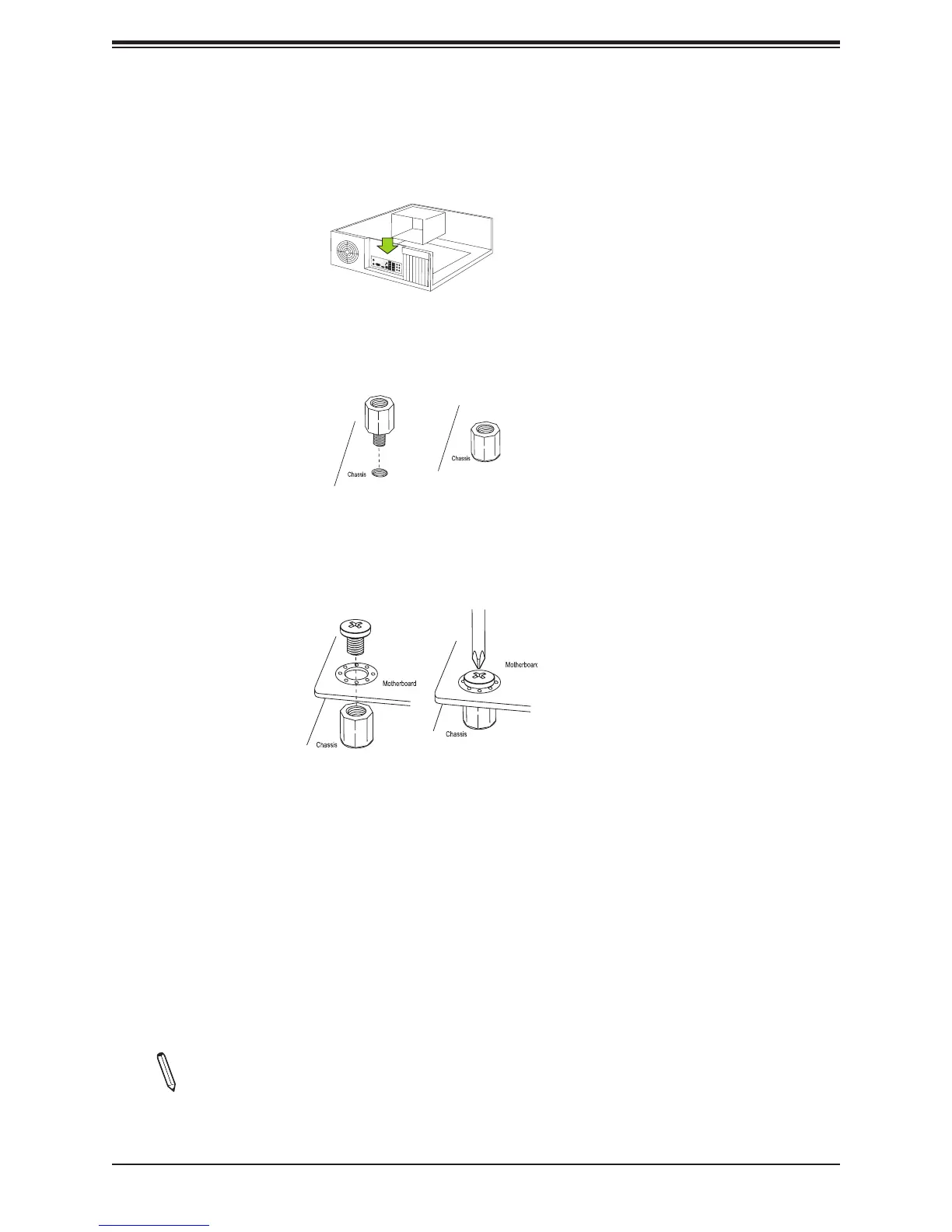

Installing the Motherboard
1. Install the I/O shield into the back of the chassis.
2. Locate the mounting holes on the motherboard. See the previous page for the location.
3. Locate the matching mounting holes on the chassis. Align the mounting holes on the
motherboard against the mounting holes on the chassis.
4. Install standoffs in the chassis as needed.
5. Install the motherboard into the chassis carefully to avoid damaging other motherboard
components.
6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on
the motherboard and its matching mounting hole on the chassis.
7. Repeat Step 5 to insert #6 screws into all mounting holes.
8. Make sure that the motherboard is securely placed in the chassis.
Note: Images displayed are for illustration only. Your chassis or components might
look different from those shown in this manual.

Supermicro X11SSH-F Specifications

General

IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Maximum UDIMM memory	64 GB
Number of DIMM slots	4
Supported DIMM module capacities	4GB, 8GB, 16GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	1600, 1866, 2133 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	16 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card model	Aspeed AST2400
Processor socket	LGA 1151 (Socket H4)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Processor thermal power (max)	80 W
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	8
Trusted Platform Module (TPM) version	1.2
Motherboard chipset	Intel® C236
Motherboard form factor	micro ATX

Weight and Dimensions

Width	224 mm
