12 AN650A/K7 (’07-MODEL)

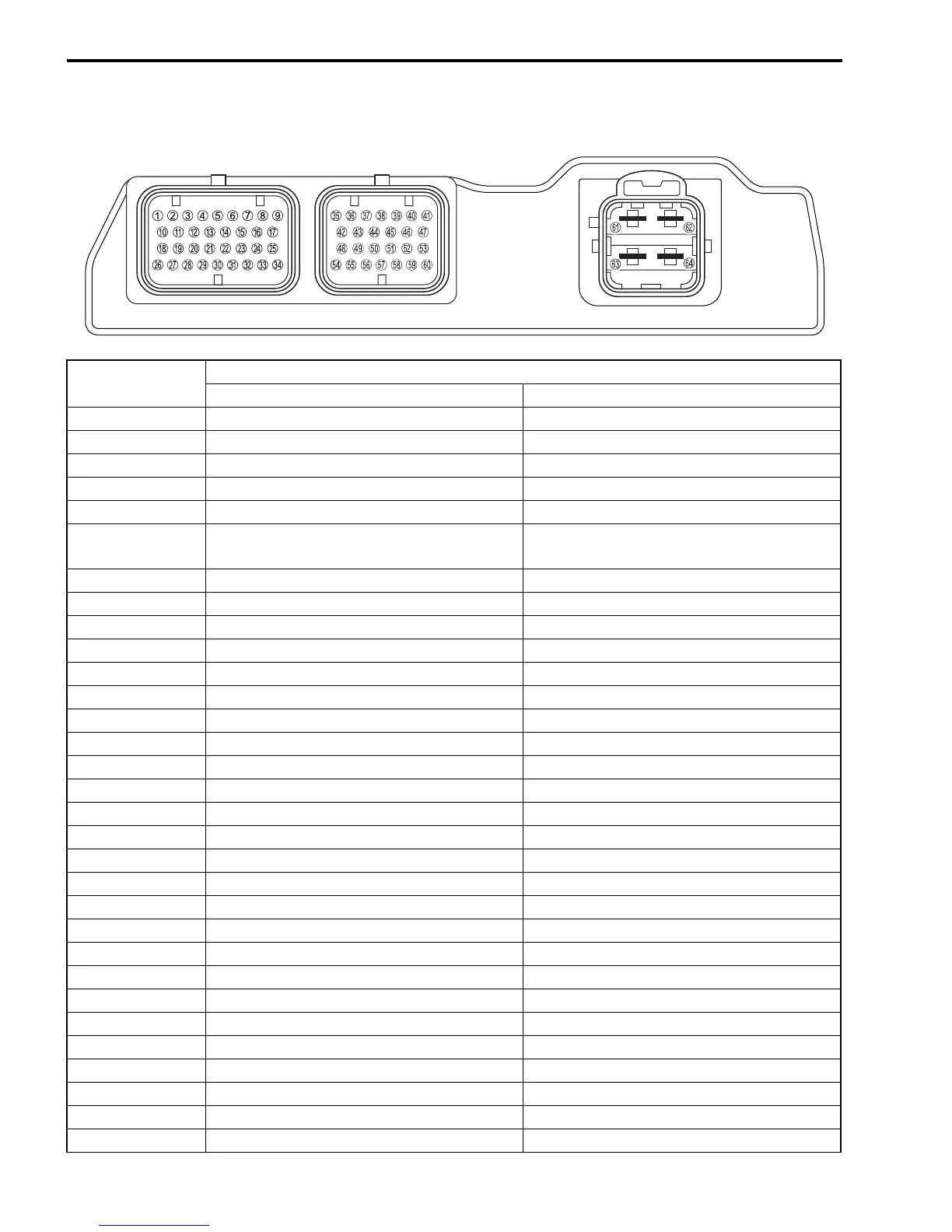

ECM/PCM TERMINAL
ECM TERMINAL
NO.
CIRCUIT
K6 K7

1 Ignition coil (IG2) ←

2 Fuel injector (#1) ←

3 Fuel injector (#2) ←

4 Shift up switch (UP) ←

5 Pulley position sensor (PPS) ←

6
PTVC heater (PTC) EVAP system purge control solenoid valve
(E-33 only)

7 Speed sensor (SPD) ←

8 PAIR control solenoid valve (PAIR) ←

9 Fuel pump relay (FP) ←

0 Ignition coil (IG1) ←

A Cooling fan relay (FRL) ←

B Power switch (POWER) ←

C Mode switch (MODE) ←

D Shift down switch (DOWN) ←

E ——

F ——

G Battery (+B) ←

H Center stand switch (CSTD) ←

I Side-stand switch (SS) ←

J Brake switch (BRK) ←

K ——

L ——

M ——

N ——

O ——

P Ground (E03) ←

Q Ground (E01) ←

R Starter relay (STA) ←

S — TO sensor (DON)

T — IAP sensor (PM)

U ——
